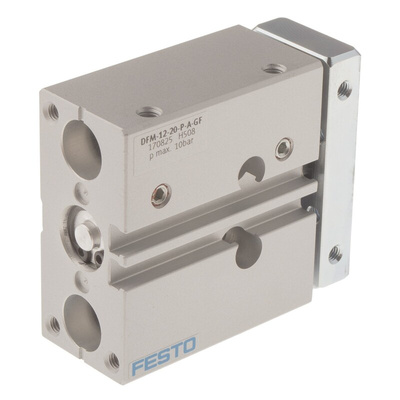

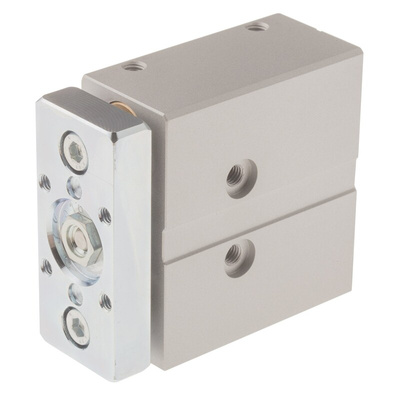

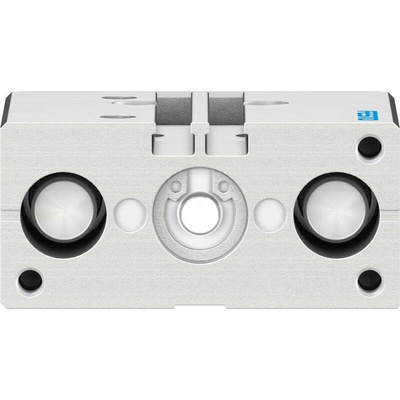

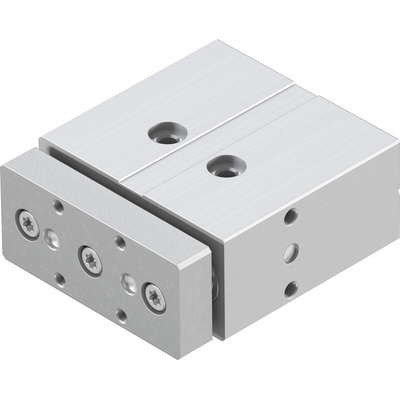

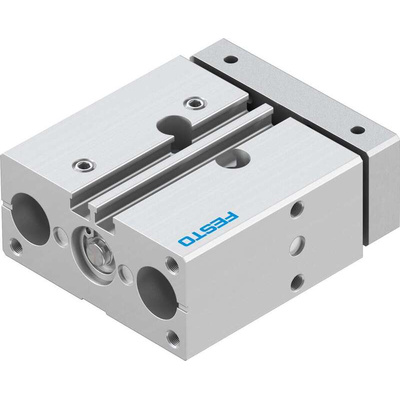

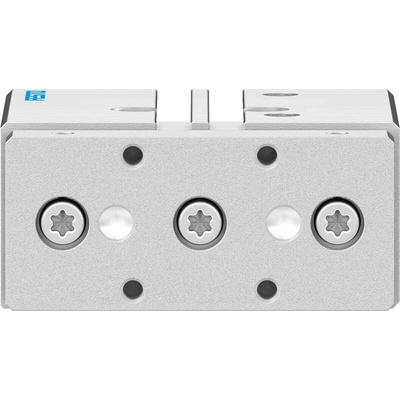

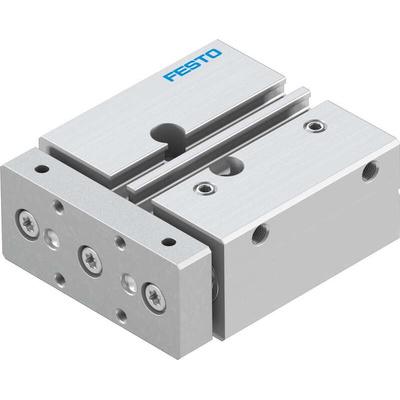

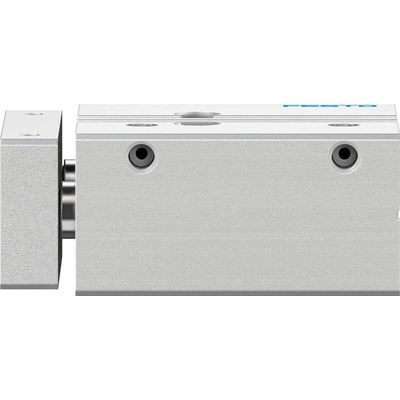

DFM-12-20-P-A-GF, Festo Pneumatic Guided Cylinder - 170825, 12mm Bore, 20mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 69 (L) x 60 (W) x 28mm (H), Elastomer Cushioning - DFM-12-20-P-A-GF

Need a brawny solution to clamp, lift and stop heavy objects? Choose this pneumatic guided cylinder from Festo. It balances high loads and keeps them steady on conveyor systems to prevent damage and service interruptions. Thanks to a double-acting design, the unit delivers accurate retraction and thrust at both ends to boost efficiency. Flexible cushioning plates reduce noise and cut out impact damage to extend the lifespan of the component and save maintenance time. As it tips the scales at just 392g weight, this cylinder puts minimal strain on your equipment.

• Streamlined design features guide and drive units in one package to save space
• Top and side ports for flexible mounting
• Rugged aluminium construction resists corrosion and impact for durability in heavy-duty settings

Applications

• Automated assembly and packaging lines
• Medical equipment
• Automatic doors
• Research and development facilities

What operating pressure can this pneumatic guided cylinder cope with?

The unit handles pressures between 2 and 10 bar, so it's a versatile choice.

How big is the cylinder?

It's a compact component with dimensions of 69 (L) x 60 (W) x 28mm (H) to save space in your setup.
