DFM-12-40-P-A-GF, Festo Pneumatic Guided Cylinder - 170828, 12mm Bore, 40mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, Non-Corrosive Piston Rod, 2 to 10 Bar Operating Pressure Range - DFM-12-40-P-A-GF

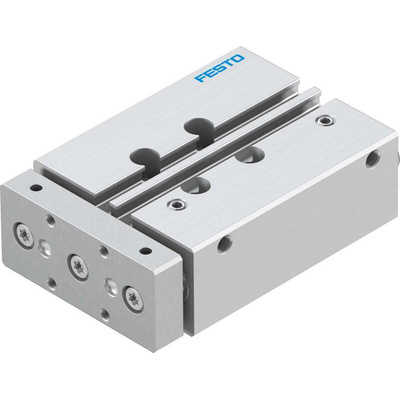

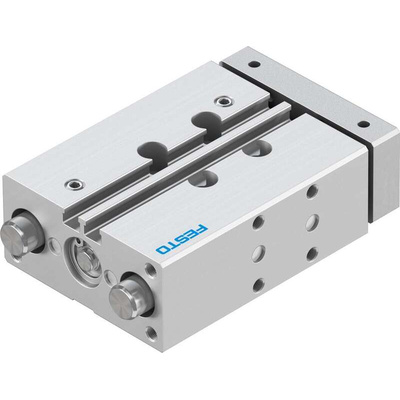

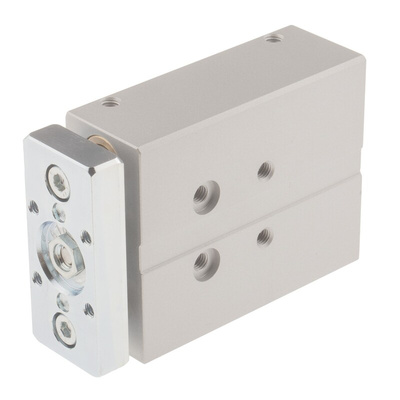

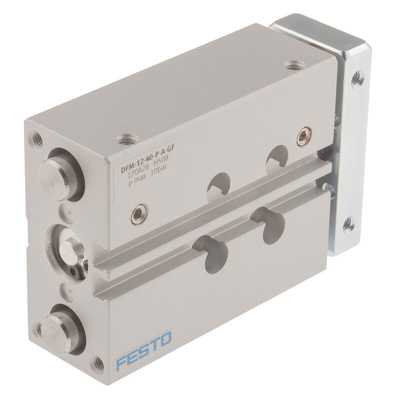

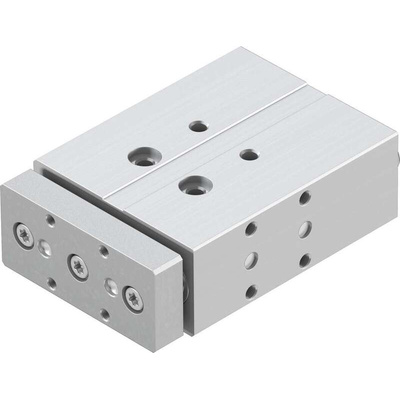

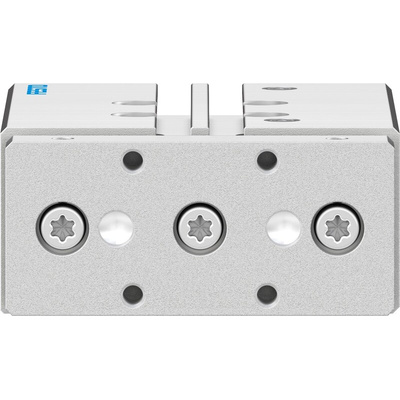

Set your machine moving in a linear direction with this pneumatic guided cylinder from Festo. It has a double-acting function, which means there's an open port at each end to let air in and out. This pushes the piston rod back and forth, eliminating the need for a spring-return mechanism and boosting accuracy. The high-alloy steel construction of the rod delivers protection from corrosion in harsh settings. You can use this handy cylinder for clamping, stopping and lifting tasks in your pneumatic system.

Features & Benefits

• Cushioning at both ends minimises noise, vibration and wear
• Can be installed in any position for versatility
• Hard-wearing wrought aluminium alloy housing withstands mechanical wear
• NBR seals resist oils and solvents for durability
• Pre-cut slots accommodate proximity sensors to track piston

Applications

• Marine engineering
• Medical devices
• Textile production
• Material handling
• Automated doors

What speed will I get from this cylinder?

It has a maximum operating speed of 0.8m/s, so you can expect rapid movement of the piston rod.

Can I lubricate this cylinder?

Yes, you can lubricate it to reduce the risk of friction. You must then lubricate it before each further operation.
