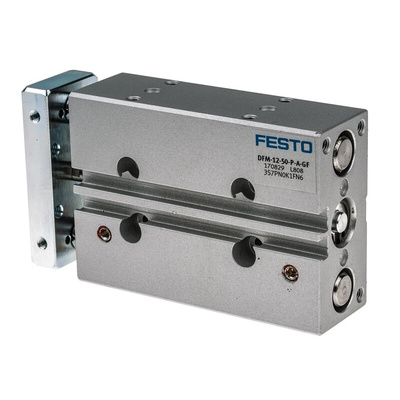

DFM-12-50-P-A-GF, Festo Pneumatic Guided Cylinder - 170829, 12mm Bore, 50mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 12mm Bore, 50mm Stroke - DFM Series - DFM-12-50-P-A-GF

Looking for a pneumatic component that can serve as both a drive and a guide at the same time? This multipurpose double-acting cylinder from Festo is a reliable solution as it incorporates both units into a single device. Its aluminium material ensures that it's highly resistant to corrosion and heavy turning force, making it suitable for heavy-duty industrial applications. It works by using pressurised air to create linear or rotary motion and can be integrated with proximity sensors for precise movement. It's useful in high-load applications for clamping, stopping and lifting operations.

• Slide bearings on the guide rods provide accurate linear motion
• Flexible elastomer cushioning to reduce noise and increase service life
• Compact dimensions of 105 (length) x 60 (width) x 28mm (height) to save space
• Minimal assembly time for ease of installation

Application Information

• Industrial automation
• Process and packaging applications
• Assembly lines

What are the mounting options for this device?

This cylinder has supply ports on its top and sides to provide a variety of mounting options. You can either clamp it overhead to a surface using the ports at the top, or between two bars using the side channels.
