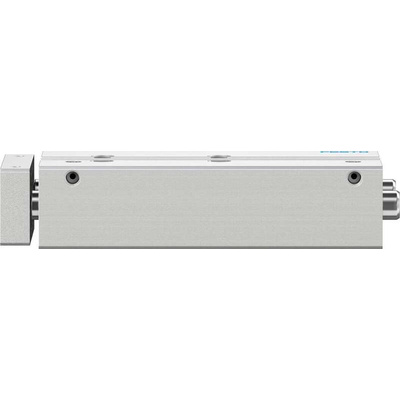

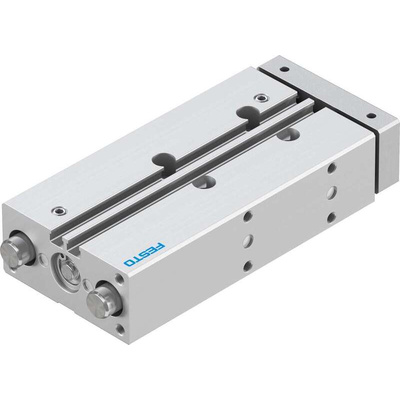

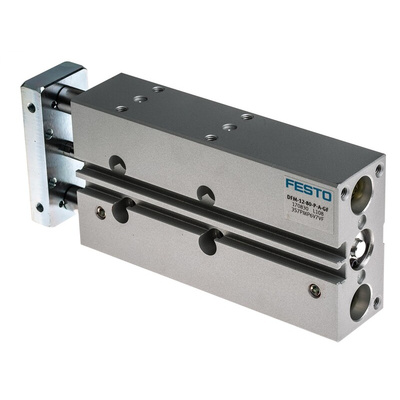

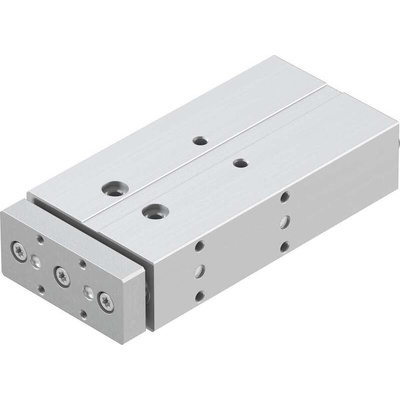

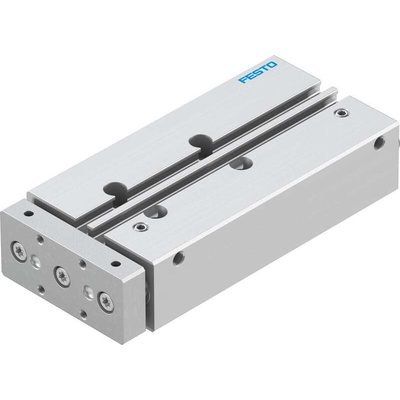

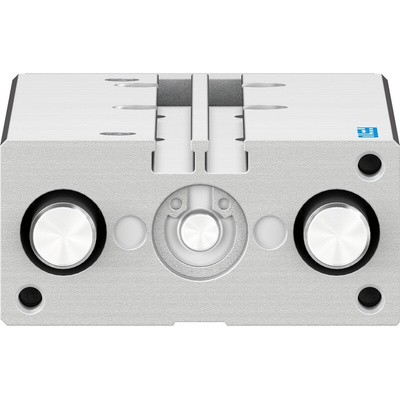

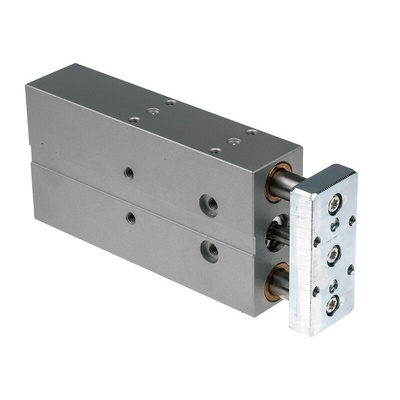

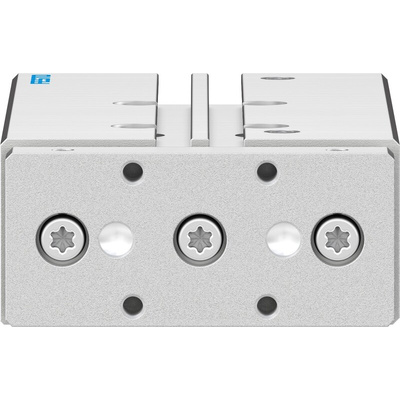

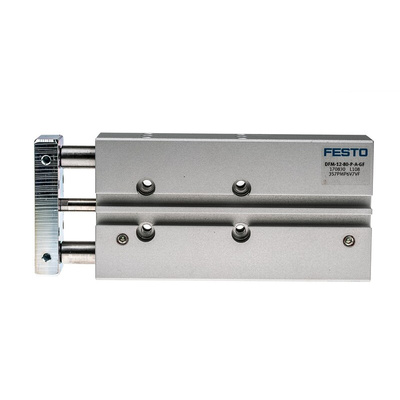

DFM-12-80-P-A-GF, Festo Pneumatic Guided Cylinder - 170830, 12mm Bore, 80mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 688g Weight, 10 Bar Maximum Operating Pressure - DFM-12-80-P-A-GF

Keep everything on the straight and narrow in your automated system with this pneumatic guided cylinder from Festo. It's a hard-working addition that holds, lifts and clamps components with ease. On its guide rods, it has four plain side bearings to provide robust support for heavy loads. Thanks to the standard M5 connection, it's a quick and easy task to fit it into your existing setup. As the unit exerts a force of 68N at 6 bar on the advance stroke, it's an ideal choice for heavy-duty applications.

Features & Benefits

• Works safely and reliably in temperatures between -20°C and +80°C
• Cushioning plates at each end absorb impact to minimise damage and reduce noise
• Wrought aluminium cover is corrosion-resistant to protect internal components, even in humid environments

Applications

• Food and drinks industries
• Manufacturing lines
• Automated lab systems
• Agricultural machinery

What accessories can I pair with this unit?

In addition to the standard lineup of pneumatic tubing (126-2775) and push-in fittings (121-6038), you can also add an exhaust valve (121-4355) and proximity sensor (121-5836) to make this component automation-ready.
