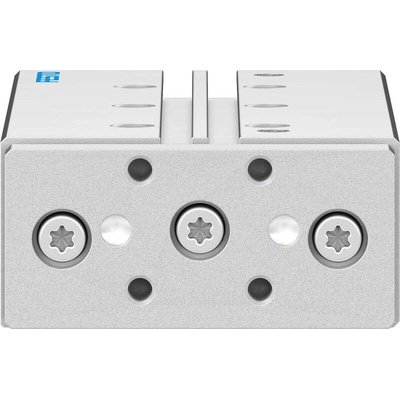

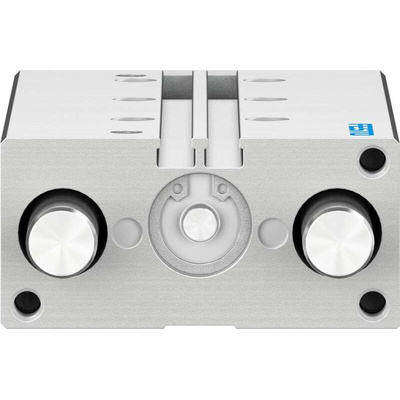

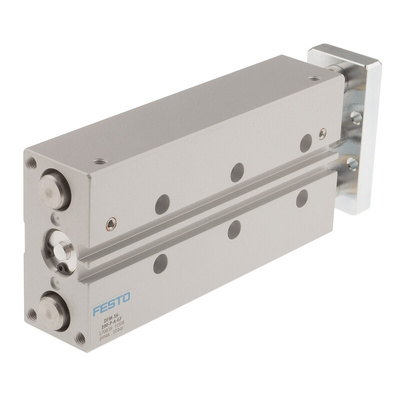

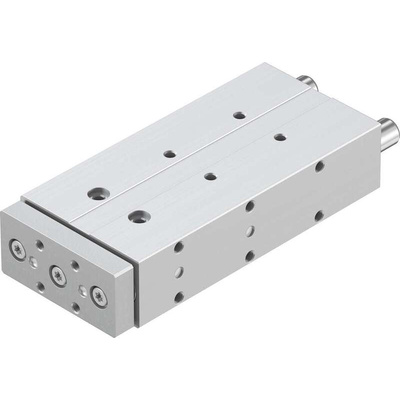

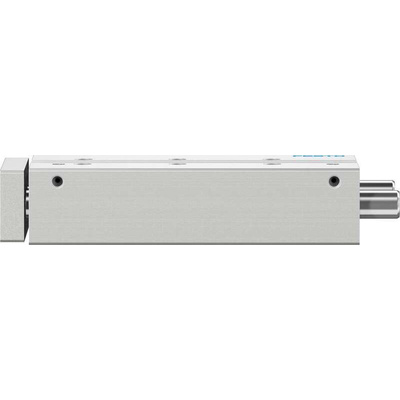

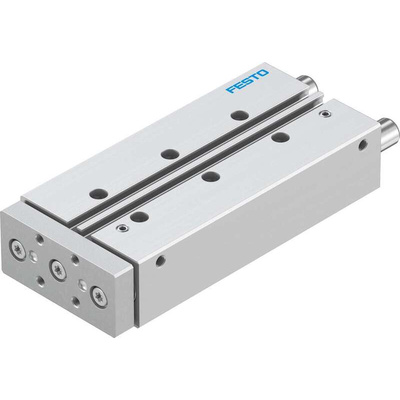

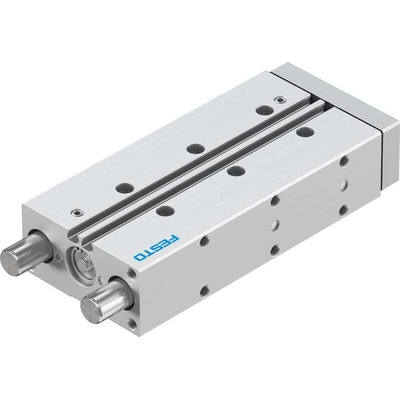

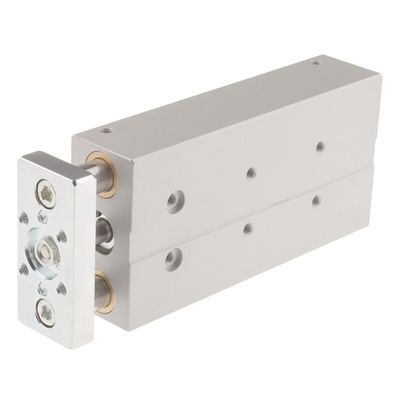

DFM-16-100-P-A-GF, Festo Pneumatic Guided Cylinder - 170839, 16mm Bore, 100mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 67mm Width, 471g Moving Mass - DFM-16-100-P-A-GF

Want to get your workpieces in the right place at the right time? Instal this pneumatic guided cylinder from Festo in your automated setup. It's a versatile option you can use for lifting, clamping and holding objects as they pass along a manufacturing line. As the unit delivers up to 121N at 6 bar on the outstroke, it handles tricky tasks like balancing loads on conveyor belts. You can rest assured the NBR seals stop dirt and debris from getting in, preventing rust build-up that could otherwise damage your equipment. With a wide operating pressure range between 2 and 10 bar, this is a handy multitasker.

Features & Benefits

• Wide operating temperature range between -20°C and +80°C
• Standard M5 pneumatic connection hooks into your existing system in a snap
• Cushioning rings prevent the piston from slamming home and causing damage

Applications

• Industrial automation
• Food industry
• Packaging systems
• Manufacturing facilities

When should I use a guided cylinder over a standard one?

Guided cylinders like this offer high resistance to lateral forces, making them ideal for side-mounted installations. Using a standard pneumatic cylinder in such a setup could result in the piston bending over time and losing accuracy.
