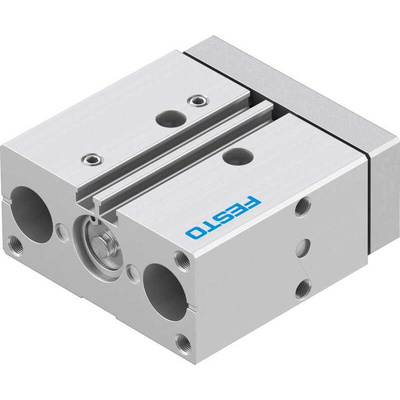

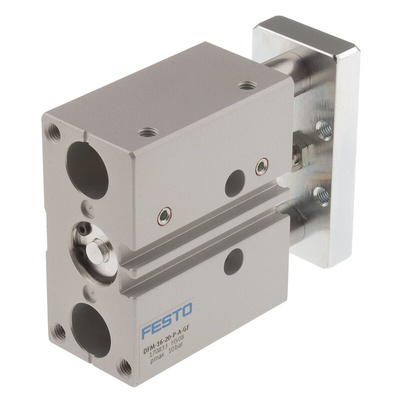

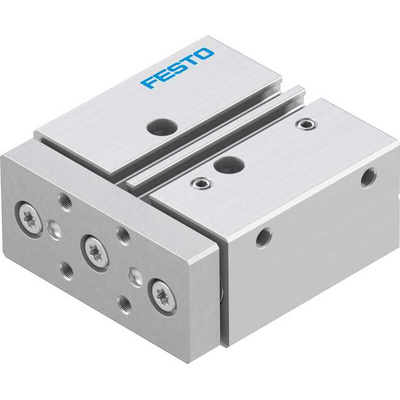

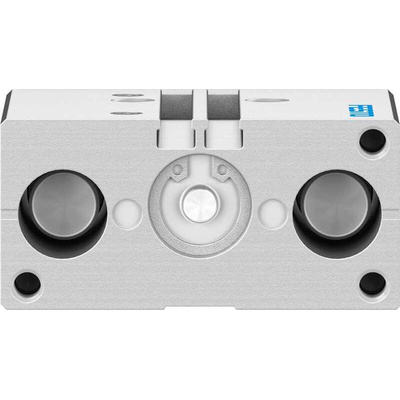

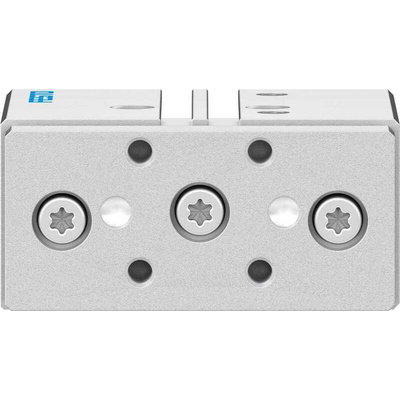

DFM-16-20-P-A-GF, Festo Pneumatic Guided Cylinder - 170833, 16mm Bore, 20mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 70 (L) x 67 (W) x 32mm (H), -20°C to +80°C Operating Temperature Range - DFM-16-20-P-A-GF

Don't let demanding loads go sideways – choose this pneumatic guided cylinder from Festo to steady high lateral forces when lifting, clamping or stopping heavy objects. Made from hardy aluminium, this unit withstands abrasion and impact, so it's durable and low maintenance. Recirculating ball bearings give the guide rods the power to handle torqued applications. With dimensions of 70 (L) x 67 (W) x 32mm (H), it's a compact component that squeezes into tight spots easily. This cylinder has an operating pressure range between 2 and 10 bar for versatility.

What are pneumatic guided cylinders used for?

• Double-acting unit for thrust and retraction at both ends to boost precision and speed
• Flexible cushioning at each end limits noise
• Broad operating temperature range between -20°C and +80°C for use in demanding settings

Applications

• Industrial assembly and packaging lines
• Food and beverage processing
• Medical imaging devices

How heavy is this cylinder?

The unit weighs only 507g, so puts minimal strain on your system.

In what position should I mount the cylinder?

This flexible component features supply ports on the top and sides, letting you mount it in any position.
