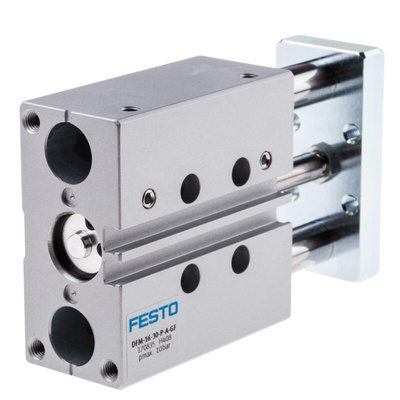

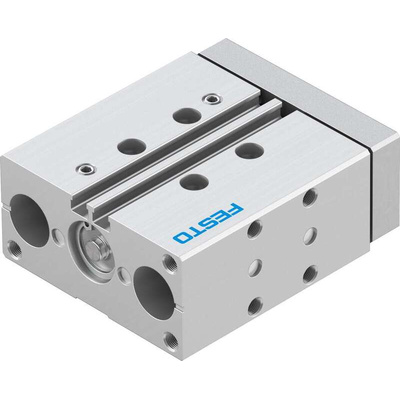

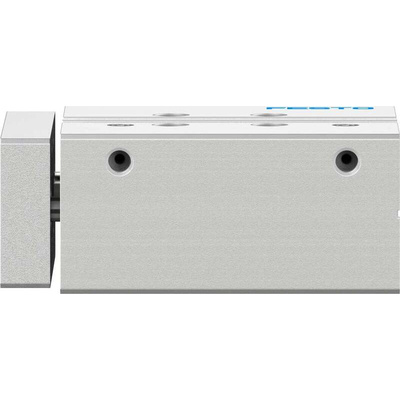

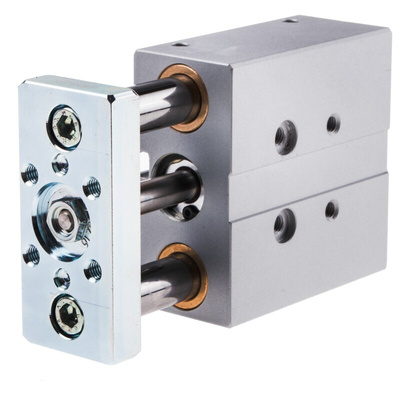

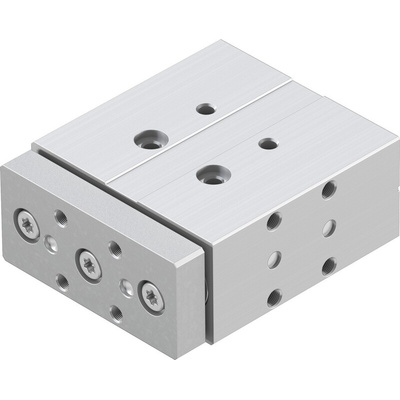

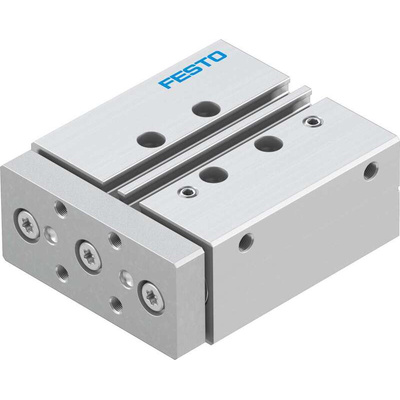

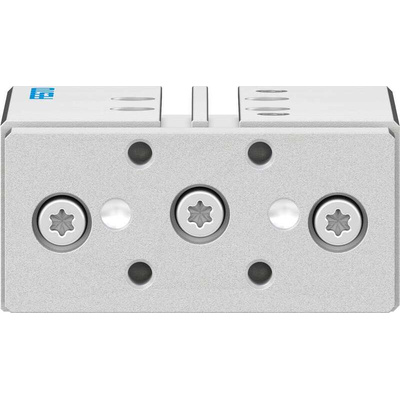

DFM-16-30-P-A-GF, Festo Pneumatic Guided Cylinder - 170835, 16mm Bore, 30mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, Plain Bearing Guide, M5 Port Connection - DFM-16-30-P-A-GF

Want to keep linear movements in your pneumatic setup on the straight and narrow? Use this pneumatic guided cylinder from Festo. A regulation 16mm bore and 30mm stroke make it a widely compatible choice for your lineup. The unit has high resistance to lateral forces, so it handles loads without breaking sweat. It's a double-actor, generating twice the airflow to deliver greater control over forward and backward motion. Elastomer cushioning technology means endpoints only suffer 0.15N of impact energy, safeguarding long-term performance.

Features & Benefits

• Broad operating pressure range of 2 to 10 bar for flexibility
• 0.8ms operating speed delivers rapid output
• Light weight of 565g keeps the load and overall strain down to a minimum
• Small size of 80 (L) x 67 (W) x 32mm (H) for confined workspaces
• Maintenance-free design saves you time and effort

Applications

• Paper and pulp mills
• Textile industry
• Medical equipment

Does this guided cylinder perform reliably in industrial conditions?

Yes, it performs reliably in a temperature range between -20°C and +80°C, so it's ideal for use in harsh environments.
