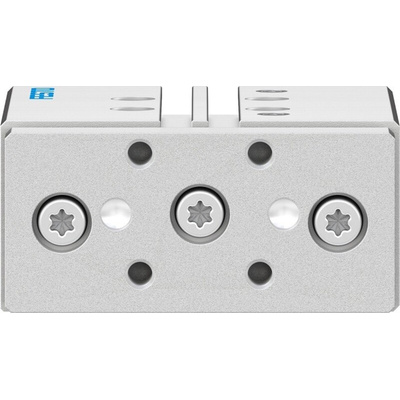

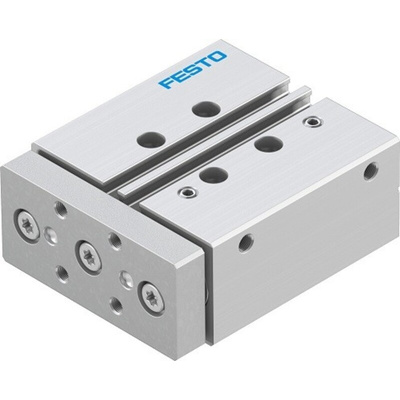

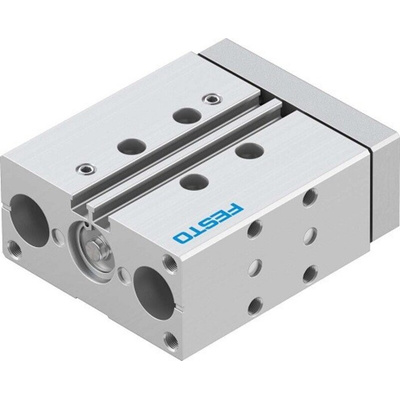

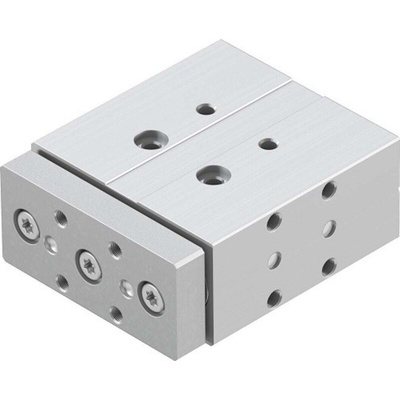

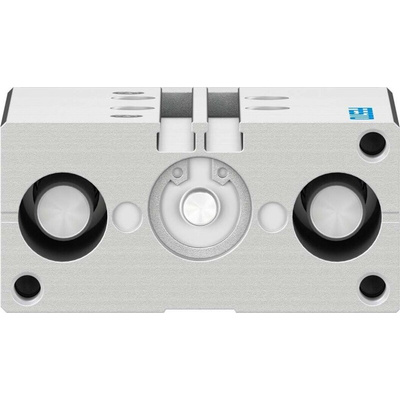

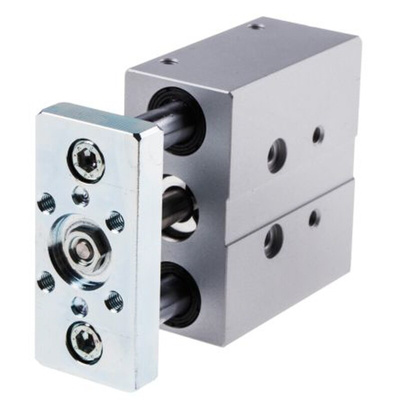

DFM-16-30-P-A-KF, Festo Pneumatic Guided Cylinder - 170910, 16mm Bore, 30mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 30mm Stroke Length, M5 Connection - DFM-16-30-P-A-KF

Need a strong component that withstands high lateral forces without buckling under pressure? Reach for this pneumatic guided cylinder from Festo. Its double-action design means air drives both the outward and return stroke, so you can depend on its accuracy in lifting, stopping and clamping tasks. It's an ideal choice for low-power operating systems, as it can handle up to 10 bar of pressure. The unit gets on with its job quickly, thanks to a 0.8ms maximum speed that shifts your products from A to B in the blink of an eye. Aluminium-alloy housing and a steel-alloy piston rod withstand the mechanical stress and impact you'd expect in a heavy-duty industrial setting.

Features & Benefits

• Compact dimensions of 80 (L) x 67 (W) x 32mm (H) make it space-efficient
• Light 535g weight lessens the load on your infrastructure
• 16mm bore and 30mm stroke offer enough reach for mid-range applications
• Inbuilt cushioning means endpoints only experience 0.15Nm of force, cutting damage out of the picture

Applications

• Pulp and paper mills
• Agricultural equipment
• Automotive manufacturing

Does this component perform reliably in harsh industrial settings?

Yes. This cylinder works without a hitch in a temperature range between -5°C and +60°C, so it's an ideal option for use in challenging environments.
