DFM-16-40-P-A-GF, Festo Pneumatic Guided Cylinder - 170836, 16mm Bore, 40mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

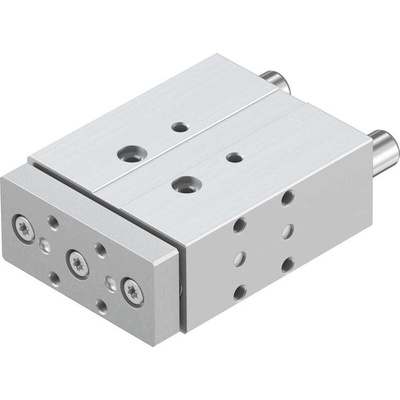

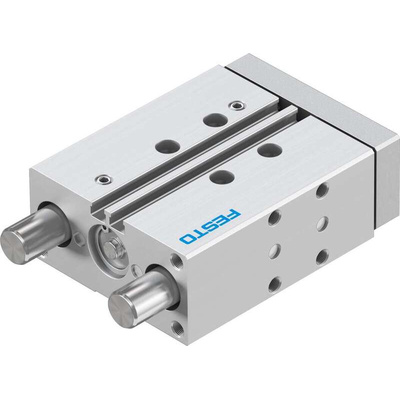

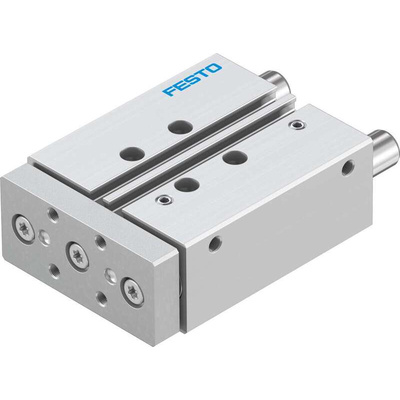

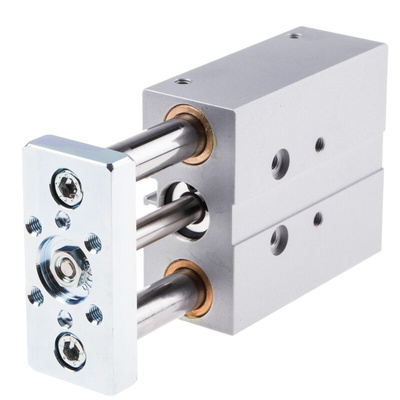

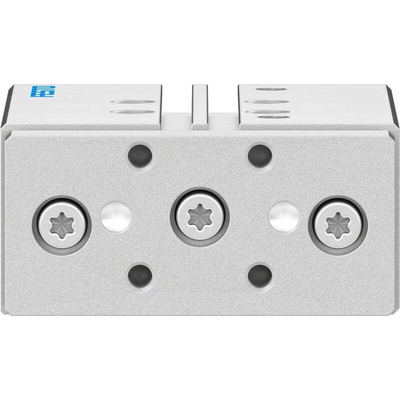

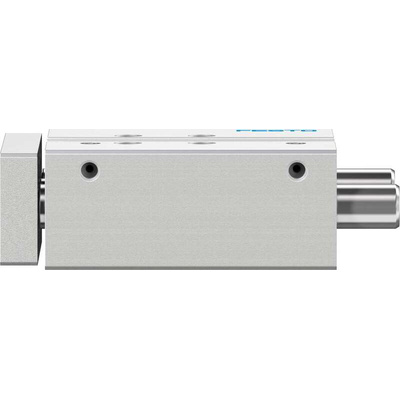

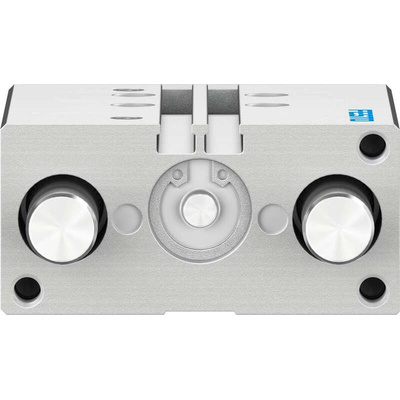

Festo Pneumatic Guided Cylinder, Plain-Bearing Guide Type, 710g Net Weight - DFM-16-40-P-A-GF

Put heavy objects in their place with this Festo pneumatic guided cylinder. By connecting the unit to a compressor, you can use it to guide large loads with a force of up to 608N. It's a double-acting option, so the 16mm-wide piston is powered by compressed air on both the outward and return stroke. This gives you precise and reliably repeatable linear motion. As the hardy device has a broad operating temperature range between -20°C and +80°C, you can put it to the test in challenging environments.

Features & Benefits

• Standard M5 thread for use with your existing pneumatic setup
• Abrasion-resistant NBR seals ensure a long and leak-free service life
• Wrought aluminium alloy housing resists corrosion, meaning it can operate in humid conditions
• Mountable in any position, so it's a versatile piece of kit
• Elastic cushioning plate on each end limits noise to prevent workplace disruption

Applications

• Automotive sector
• Manufacturing industry
• Main engine control systems

What operating pressure range can this cylinder handle?

This pneumatic guided cylinder functions in a broad pressure range between 2 and 10 bar, so it's suitable for light-duty to medium-duty applications.
