DFM-16-50-P-A-GF, Festo Pneumatic Guided Cylinder - 170837, 16mm Bore, 50mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

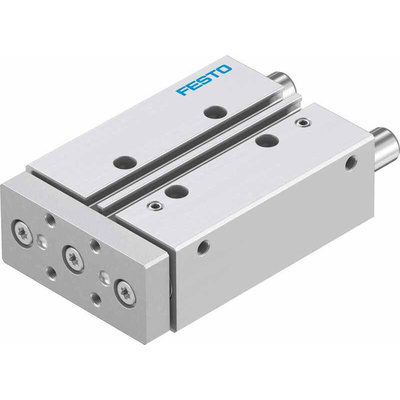

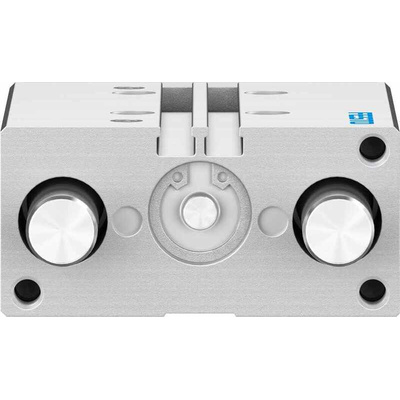

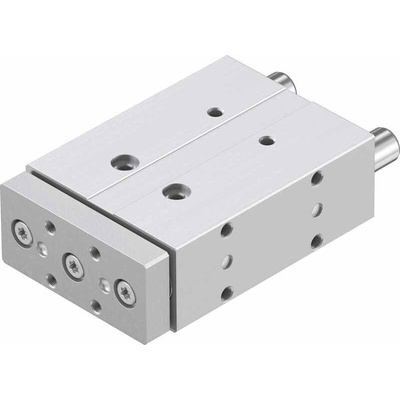

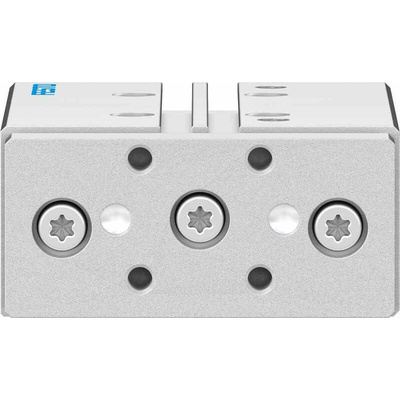

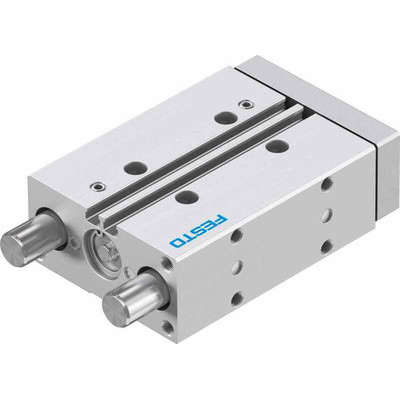

Festo Pneumatic Guided Cylinder, 16mm Bore, 50mm Stroke - DFM Series - DFM-16-50-P-A-GF

This high-performance pneumatic cylinder from Festo is a reliable choice for precise drive and guide operations. It functions by using the pressure difference in its two air channels to move its piston forward and backwards. For more accurate movement, you can attach a proximity sensor to it. The piston is made of high-alloy steel for durability and long-lasting performance. It's protected by a housing made of wrought-aluminium alloy for resistance to corrosion, so it can withstand demanding environmental conditions. This component is used for a variety of stopping and lifting operations.

• Extend force of 121N at 7 bar pressure for heavy-duty applications
• Compact dimensions of 117 (length) x 67 (width) by 32mm (height) for space efficiency
• Wide operating temperature range of -20°C to +80°C for use in harsh environments
• Elastomer cushioning to reduce noise and wear

Application Information

• Packaging industry
• Material handling applications
• Robotics industry

Does this device need a lot of maintenance?

The cylinder needs only periodic cleaning with a soft cloth and a non-abrasive agent. You don't have to grease it as it's lubricated for life, making it a low-maintenance choice.
