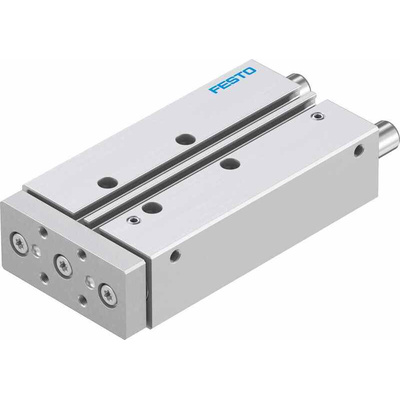

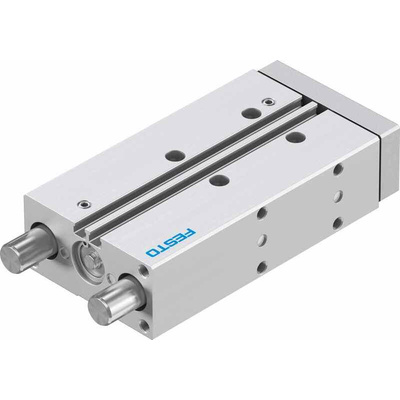

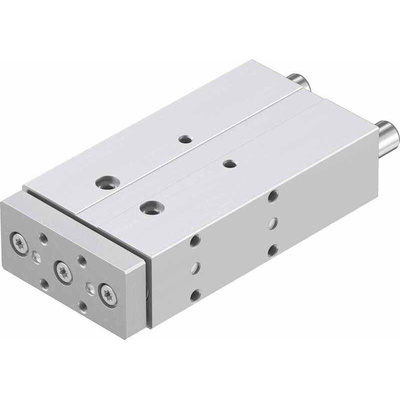

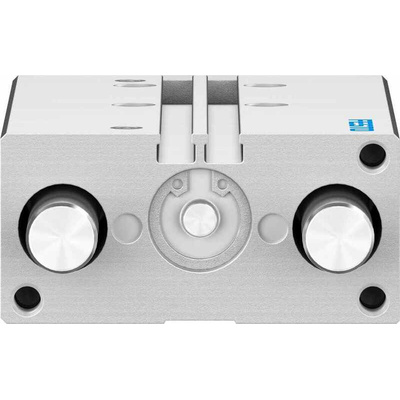

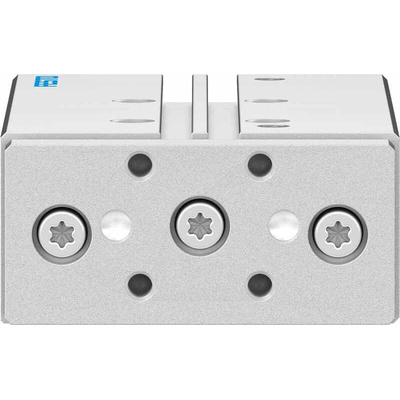

DFM-16-80-P-A-GF, Festo Pneumatic Guided Cylinder - 170838, 16mm Bore, 80mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 16mm Bore, 80mm Stroke - DFM Series - DFM-16-80-P-A-GF

Use this pneumatic cylinder from Festo for accuracy in your industrial applications. It has a protective housing made of aluminium for durability and resistance to corrosion, making it a long-lasting option for harsh industrial environments. The cylinder uses the pressure difference between the two air slots to drive the piston backwards and forwards. It's compatible with proximity sensors for added precision. You can use this device in a variety of industrial applications, from lifting items off conveyors to clamping and stopping.

• Light weight of 920g for ease of handling
• Bearings on the guide rods for accurate movement, reduced friction and resistance to lateral forces
• Wide operating pressure range of 2 bar to 10 bar for use in a variety of applications
• Maintenance-free for longer service life
• Maximum speed of 0.8m/s for fast-moving applications

Application Information

• Medical equipment
• Robotics industry
• Fast-moving consumer goods (FMCG) industries

Is this component energy-efficient?

This cylinder functions entirely on compressed air and uses minimal amounts of energy to lift or stop loads as heavy as 150kg. This makes it an energy-efficient choice.
