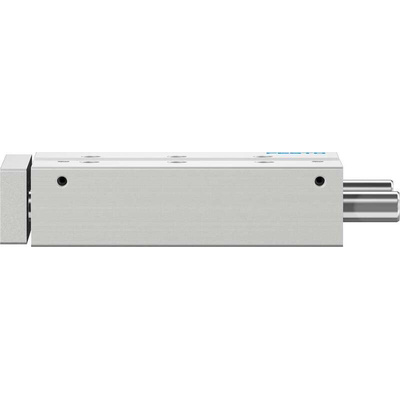

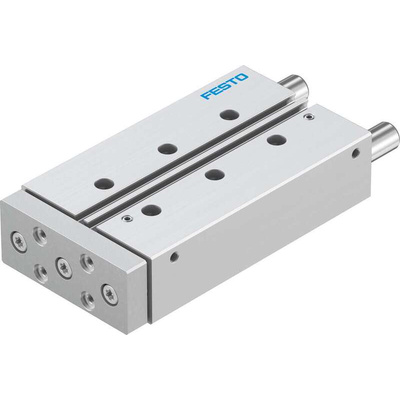

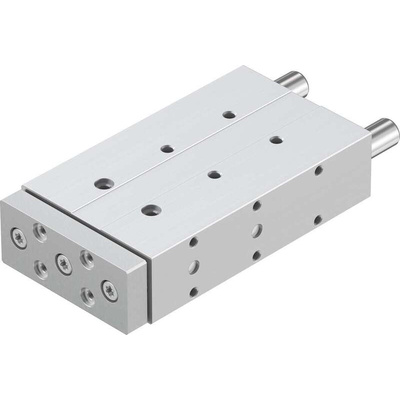

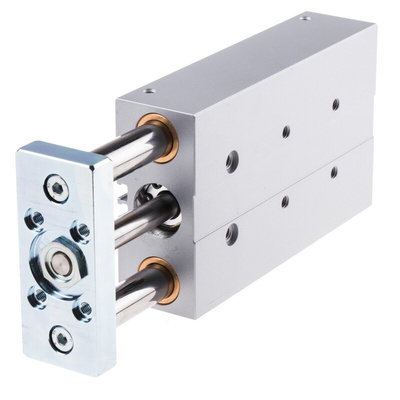

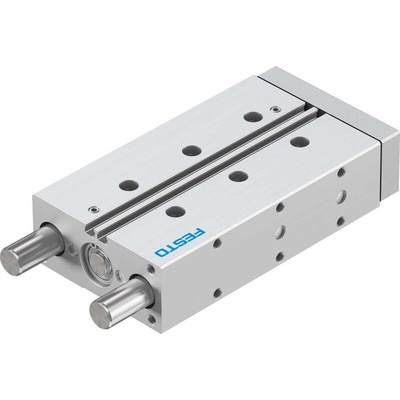

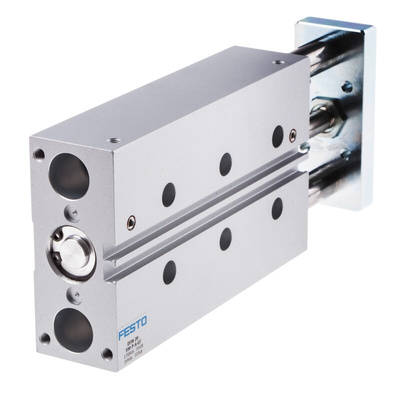

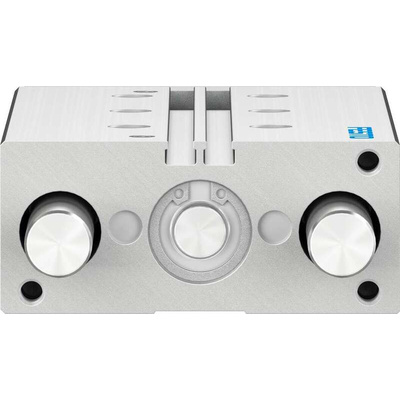

DFM-20-100-P-A-GF, Festo Pneumatic Guided Cylinder - 170846, 20mm Bore, 100mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 10 Bar Maximum Operating Pressure, 1.6kg Weight - DFM-20-100-P-A-GF

Need a way to control lateral forces in your equipment? Go for this pneumatic guided cylinder from Festo to balance loads when stopping, clamping and lifting heavy objects. Featuring recirculating ball bearings that power the guide rods, the device packs the muscle needed for torqued applications. Flexible cushioning absorbs impacts and noise to extend the lifespan of the product and keep your workplace comfortable. Its double-acting design means compressed air retracts and drives the piston from both ends to ensure precision. Rugged NBR seals stop air from leaking out, making sure your cylinder always has plenty of puff.

• Tough aluminium construction is durable enough to withstand impact and abrasion
• Wide operating temperature range of -20°C to +80°C for use in hazardous environments
• 100mm stroke to deliver the torque needed for demanding operations

Applications

• Automated manufacturing lines
• Medical equipment
• Aerospace technology

How do I choose the right pneumatic guided cylinder?

First, you should match the bore and supply port sizes to your equipment. Then, ensure the stroke length is suitable for the job at hand.

How heavy is the cylinder?

This unit weighs 1.6kg, so it puts little strain on your installation.
