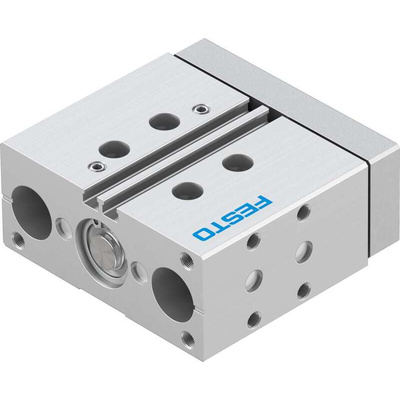

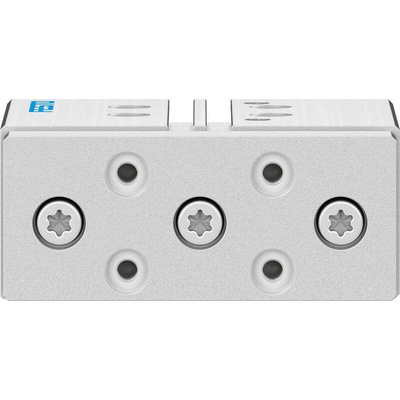

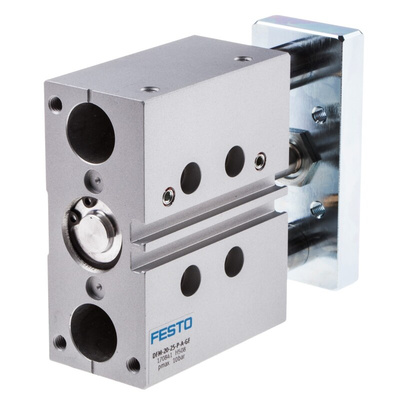

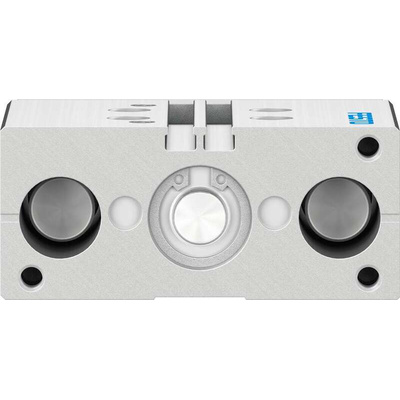

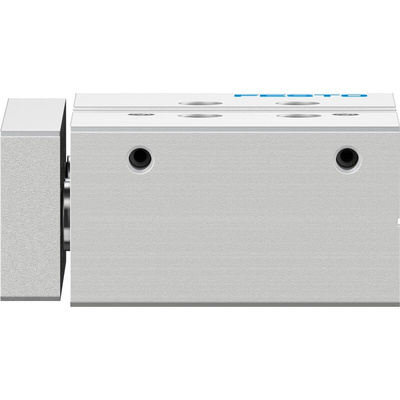

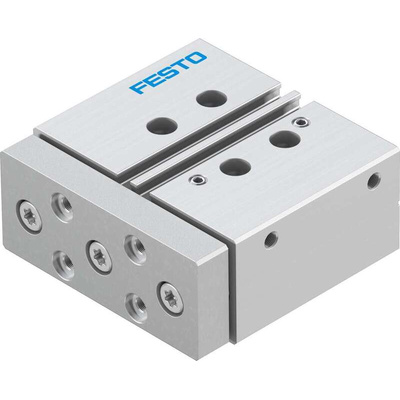

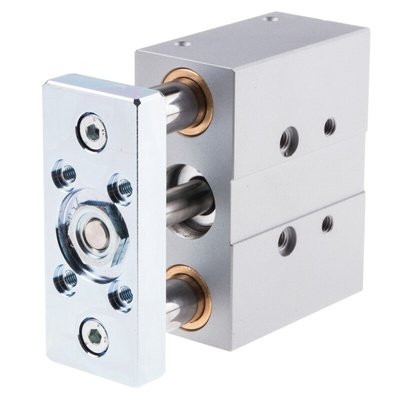

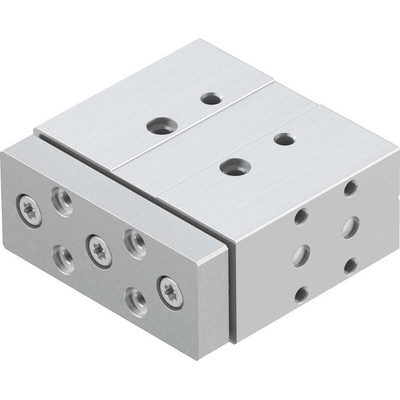

DFM-20-25-P-A-GF, Festo Pneumatic Guided Cylinder - 170841, 20mm Bore, 25mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, Threaded Connection, -20°C to +80°C Operating Temperature Range - DFM-20-25-P-A-GF

Need to move objects that are attached laterally to your machinery? Turn to this pneumatic guided cylinder from Festo. Integrated guided blocks help evenly distribute the pressure to stop the load from falling. As the unit keeps everything rigid, you can use it for clamping, stopping and lifting operations in your industrial environment. It features flexible cushioning rings on both ends to take the hits from the piston rod and muffle the noise. To really seal the deal, robust NBR rings hold it closed, preventing air leakage.

• Double-acting, so uses air to extend and retract the rod, eliminating the need for a spring return
• Can be mounted in any position for flexible assembly
• Stainless steel piston rod resists impacts and corrosion
• Broad operating temperature range between -20°C and +80°C to tolerate harsh settings

Applications

• Oil and gas industry
• Conveyor systems
• Food production and packaging

How fast is this pneumatic guided cylinder?

With a maximum speed of 0.8mps, the piston rod of this cylinder moves rapidly to reposition your attached loads.

What's the operating pressure range of the cylinder?

This component has an operating pressure range between 2 and 10 bar, making it suitable for low-pressure and medium-pressure systems.
