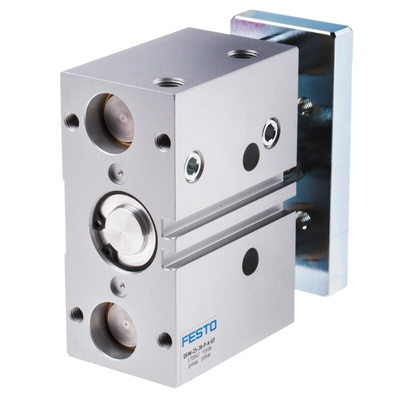

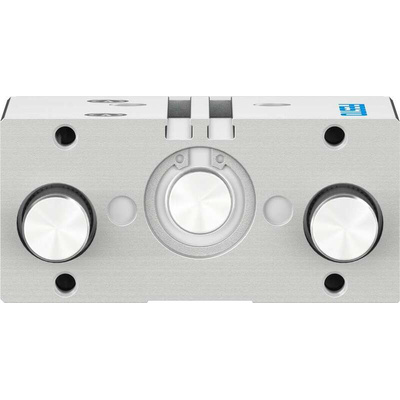

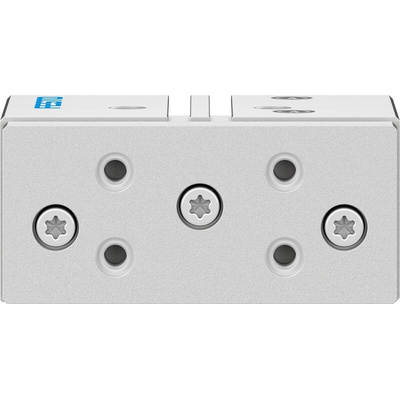

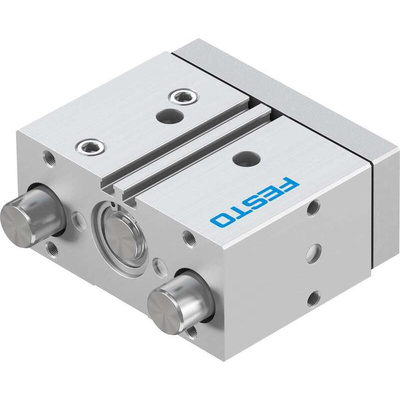

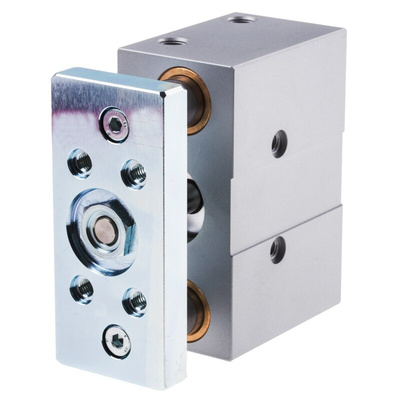

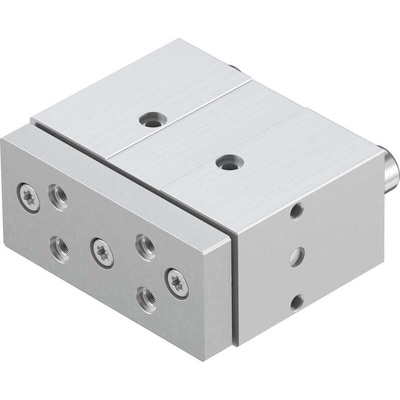

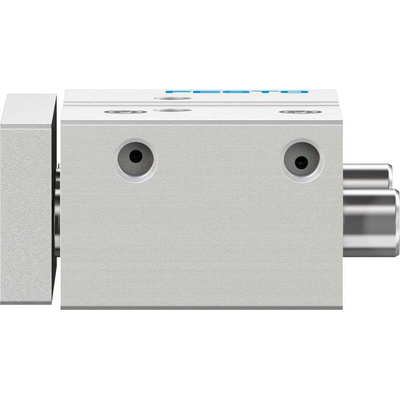

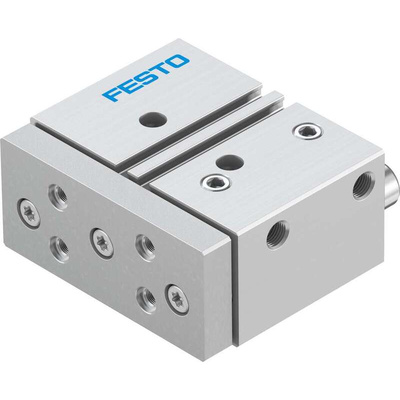

DFM-25-20-P-A-GF, Festo Pneumatic Guided Cylinder - 170847, 25mm Bore, 20mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, Cushioned, 10 Bar Maximum Operating Pressure - DFM-25-20-P-A-GF

To get a steady grip on objects moving sideways, turn to this pneumatic guided cylinder from Festo. It's double acting, which means that it lets air in and out to extend and retract the piston rod, ensuring movement is smooth and consistent. Thanks to a maximum speed of 0.8m/s, you can rest assured that this unit gets the job done quickly. Integral plain-bearing guides evenly spread the force to keep the object steady. Thanks to its tough wrought aluminium housing, this cylinder stands up to impacts and corrosion.

• Piston rod is made from rugged stainless steel that withstands corrosion
• Flexible cushioning rings absorb impacts to reduce noise
• Air supply ports on top and side for flexible mounting in any position

Applications

• Mining and quarrying industry
• Power stations
• Packaging facilities

What temperature range can this cylinder handle?

As it has a broad operating temperature range of -20°C to +80°C, you can safely use this cylinder in challenging environments.

How do I track the position of the piston rod in this cylinder?

This cylinder comes with pre-cut mounting holes in its body, so you can fit a proximity sensor to monitor the rod's position.

Festo DFM/DFM-B

Festo Pneumatic Cylinders Operating Manual

DFM-25-20-P-A-GF Specification Sheet

Instruction Sheet - DFM

Brochure - Pneumatic Actuators, Grippers and Vacuum Components
