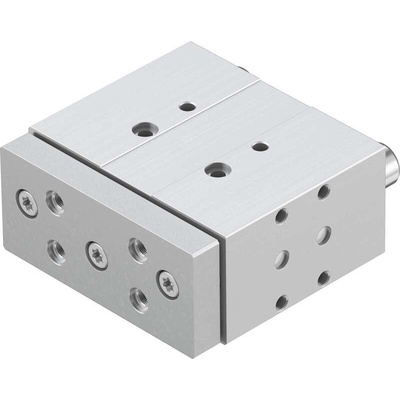

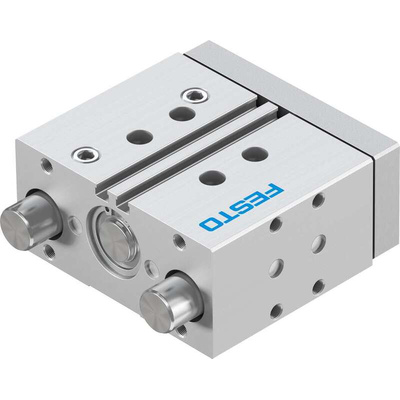

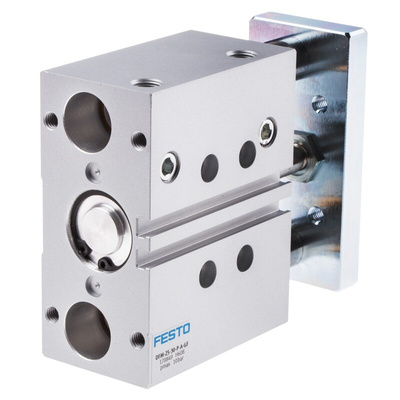

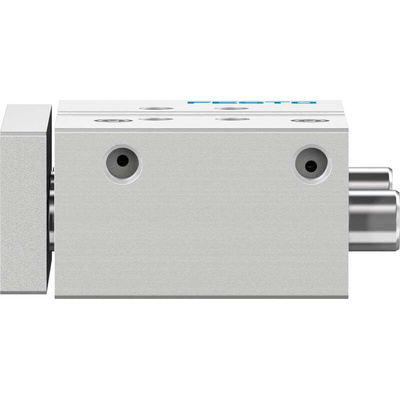

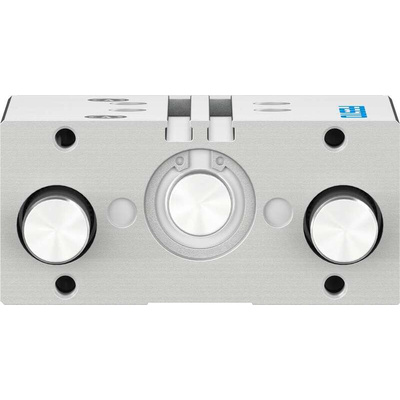

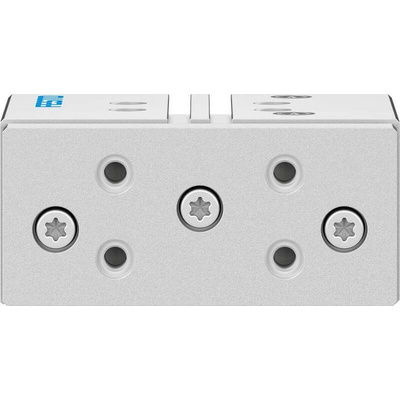

DFM-25-30-P-A-GF, Festo Pneumatic Guided Cylinder - 170849, 25mm Bore, 30mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, G1/8 Thread, 810.7N Maximum Force Rating - DFM-25-30-P-A-GF

Set your workpieces on the right track with this pneumatic guided cylinder from Festo. Its double-acting function uses air to extend and retract the piston rod, handing you close control over movement in both directions. As it's fitted with a plain-bearing guide block, the device shakes off the strain of sideways forces to keep objects moving without a hitch. Heavy items are light work for this unit as it delivers forces of up to 810.7N. Thanks to the flexible elastomer cushioning rings, it runs quietly to dial down workplace disruption.

• Standard G1/8 threaded pneumatic port for wide compatibility
• Hard-wearing aluminium alloy casing to stand up to impacts
• Short stroke length of 30mm for precise movements
• Airtight NBR seals maintain stable system pressure, plugging up air waste
• Maximum speed of 0.8m/s to race through intense processes

Applications

• Clamping and lifting equipment
• Automotive industry
• Packaging plants

Can I use this pneumatic cylinder with my system's lubricated air supply?

Yes, this unit works with a lubricated supply as well as clean air, making it a sure fit for common pneumatic systems.
