DFM-25-50-P-A-KF, Festo Pneumatic Guided Cylinder - 170926, 25mm Bore, 50mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

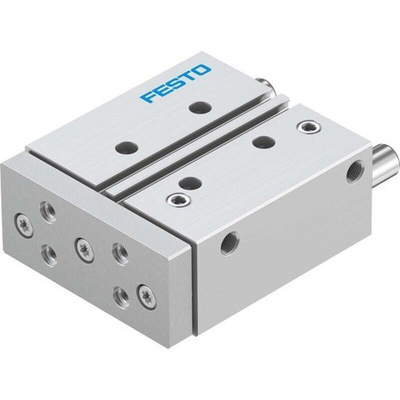

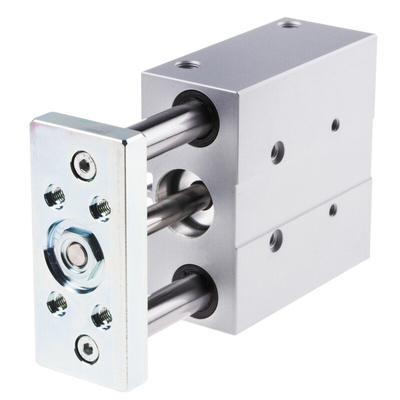

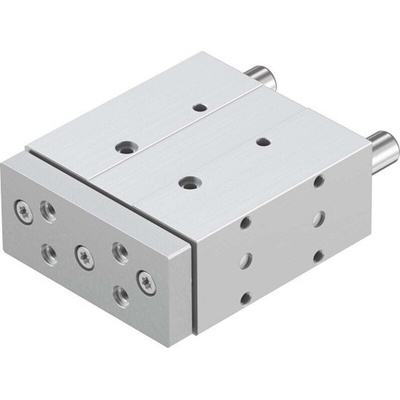

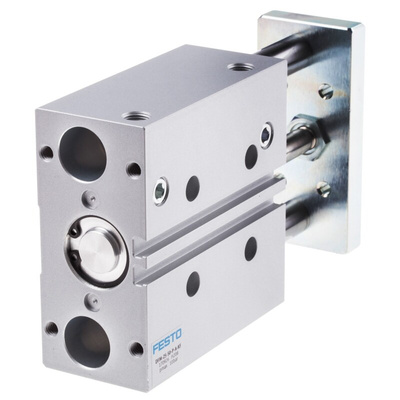

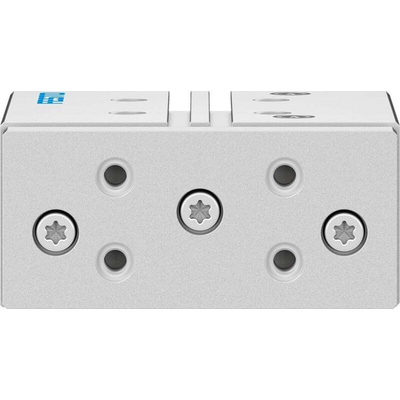

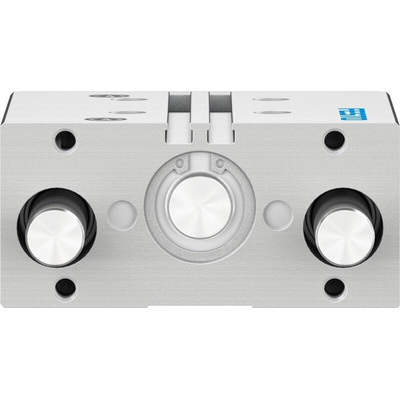

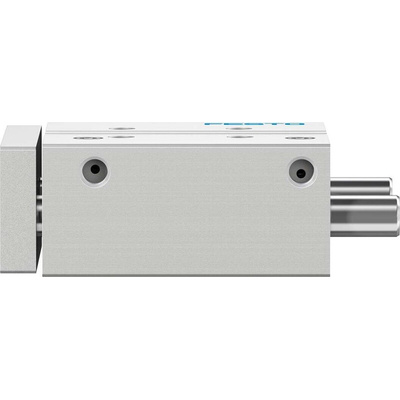

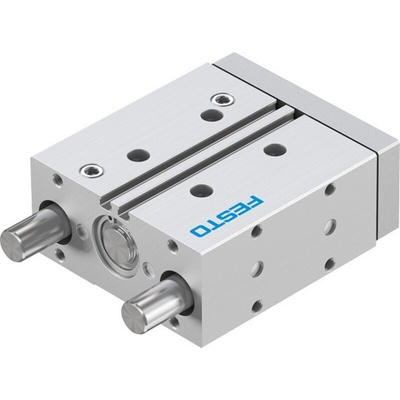

Festo Pneumatic Guided Cylinder, Double-Acting, 50mm Stroke Length - DFM-25-50-P-A-KF

Need a robust unit to perform stopping, lifting and clamping tasks with ease? Pick this pneumatic guided cylinder from Festo to give you some muscle. It handles up to 1,060N of static load without buckling under the strain. It's versatile too, with a broad operating pressure range between 1.5 and 10 bar. Harsh industrial conditions are no match for this unit, as it performs reliably in temperatures between -5°C and +60°C. Inbuilt elastomer cushioning at the cylinder's endpoints dampens impact to just 0.3Nm of force, lowering noise and vibration while also extending its service life.

Features & Benefits

• Maximum speed of 0.8ms for rapid performance
• Compatible with non-lubricated and lubricated compressed air for versatility
• Drive and guide unit assembled in one unit for space-efficient design
• Steel and aluminium alloys provide the high tensile strength needed to handle heavy weights

Applications

• Agricultural equipment
• Processing and packaging lines
• Industrial automation

How much does this product weigh?

This pneumatic guided cylinder weighs just 1.5kg, so it minimises strain on the mounting surface.

What size is this cylinder?

The unit measures up at 133 (L) x 95 (W) x 44mm (H), so it's ideal for setups where space is limited.
