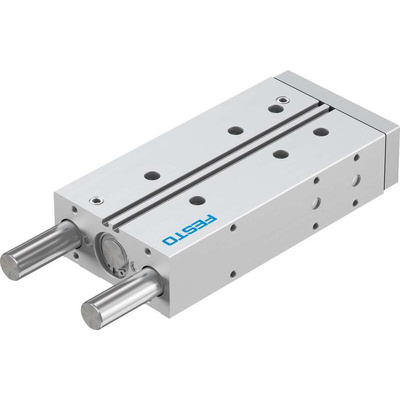

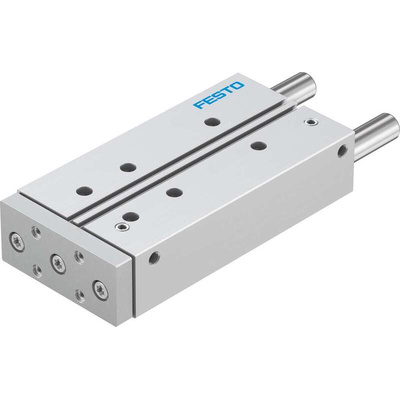

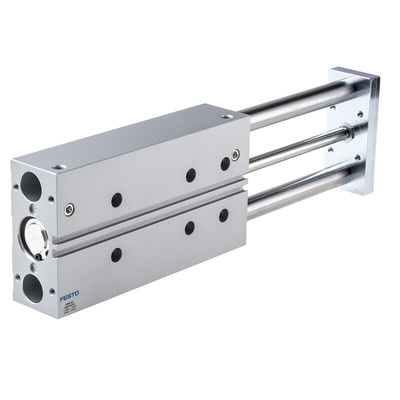

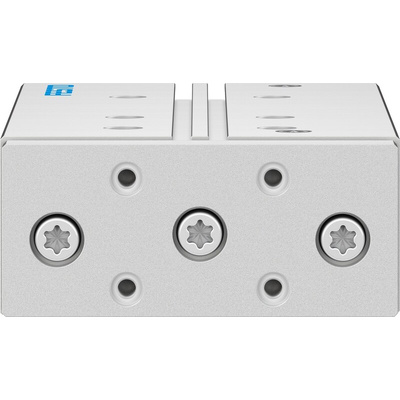

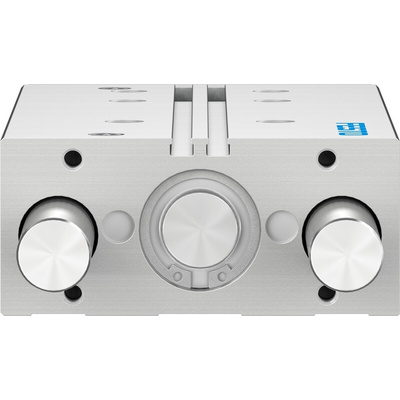

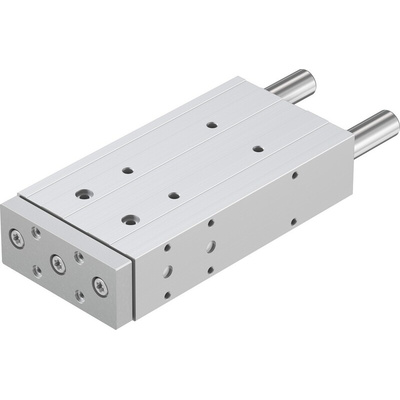

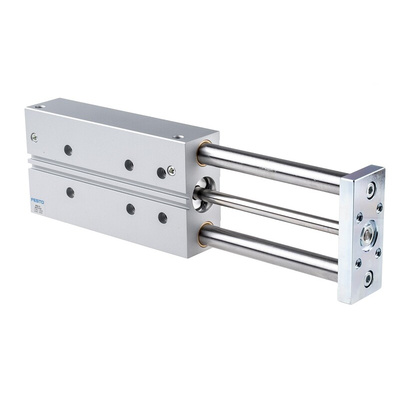

DFM-32-160-P-A-GF, Festo Pneumatic Guided Cylinder - 170862, 32mm Bore, 160mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 1.5 to 10 Bar Operating Pressure, 160mm Stroke - DFM-32-160-P-A-GF

To make sure your system stays on the straight and narrow, grab this pneumatic guided cylinder from Festo. It combines the drive and guide units in a single housing to provide the strength and rigidity needed to move heavy loads in a straight line. To maintain repeatable accuracy, this double-acting device uses thrust at both ends to extend and retract the rods. Flexible cushioning absorbs shocks to keep movements steady and minimise wear and tear.

Features & Benefits

• Handles a wide operating temperature range between -20°C and +80°C
• G1/8 pneumatic connection for compatibility with standard ports
• High alloy steel piston rod material and wrought aluminium housing are strong and resistant to corrosion
• NBR seals resist a wide range of fuels, water and some hydraulic fluids, making it suitable for contaminated workplaces

Applications

• Automated production and assembly lines
• Agricultural equipment
• Medical imaging devices
• Automotive industry

What stroke size does this guided pneumatic cylinder deliver?

The device has a short 160mm stroke, so you can easily fit it in confined spaces.

At what pressures can I use this component?

It handles pressures between 1.5 and 10 bar, so it works with low-pressure and mid-pressure systems.
