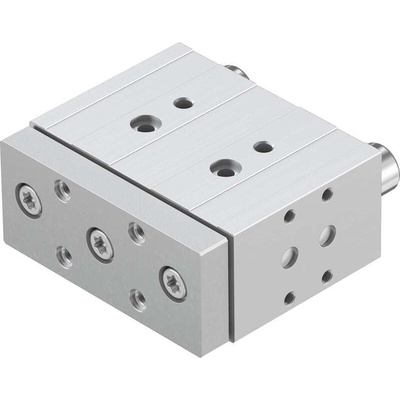

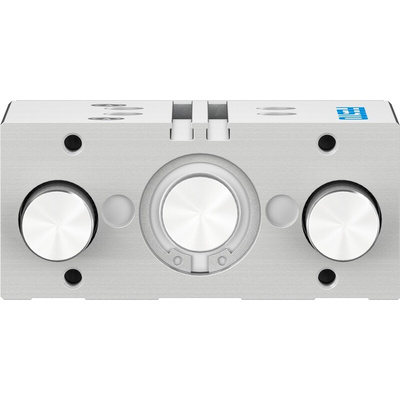

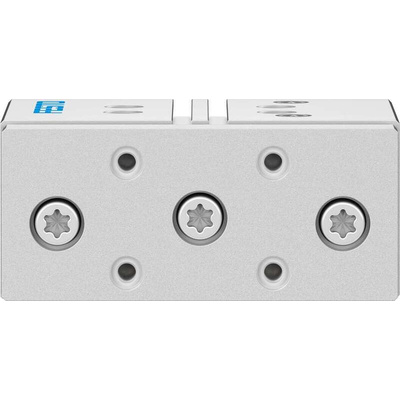

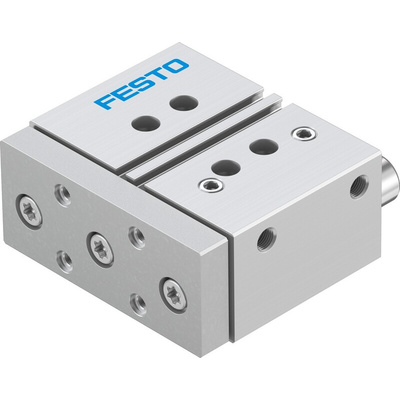

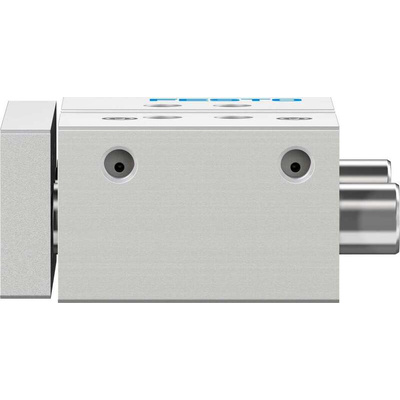

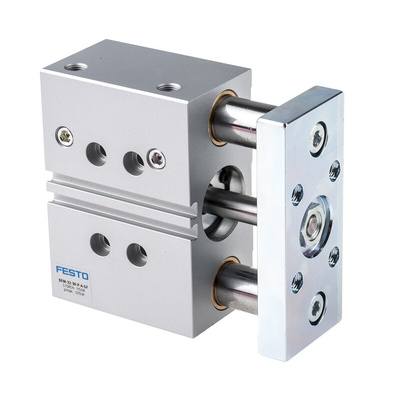

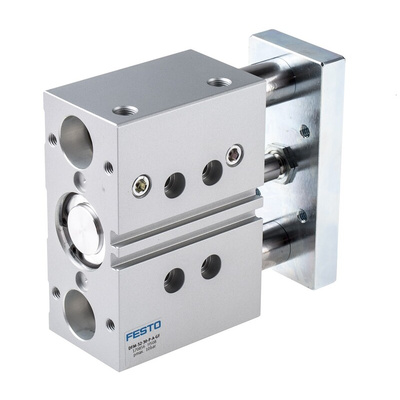

DFM-32-30-P-A-GF, Festo Pneumatic Guided Cylinder - 170856, 32mm Bore, 30mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, Cushioned, 1,227N Maximum Force Rating - DFM-32-30-P-A-GF

Need a way to steer objects through your system? Set a course for success with this pneumatic guided cylinder from Festo. It's a double-acting device, meaning it uses air to push and pull the piston, delivering controlled and accurate strokes in both directions. Thanks to a plain-bearing guide block, it stays on the straight and narrow, even when faced with heavy lateral forces. A maximum speed of 0.8m/s makes this cylinder suitable for demanding processes. As it drives forces up to 1,227N, it gives heavy loads the push they need to get to their destination.

• Built-in elastomer cushioning flexes to hardware shape, dampening disruptive operating noise
• Airtight NBR seals prevent leakage, protecting system pressure to ensure smooth running
• Compact dimensions of 111 (L) x 110 (W) x 49mm (H), meaning it slips easily into busy setups
• Handles operating temperatures between -20°C and +80°C, so it copes well in harsh environments

Applications

• Construction industry
• Plastics production
• Mineral processing

What thread size is this unit's pneumatic port?

This cylinder comes with a standard G1/8 threaded connection, for wide compatibility with your existing kit.
