DFM-32-50-P-A-GF, Festo Pneumatic Guided Cylinder - 170858, 32mm Bore, 50mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

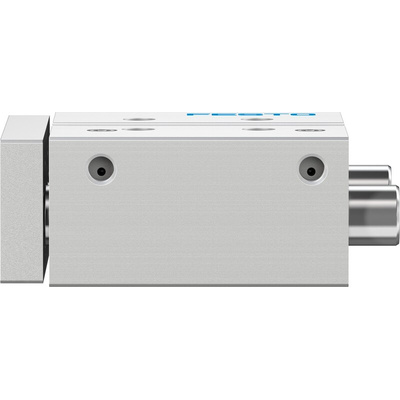

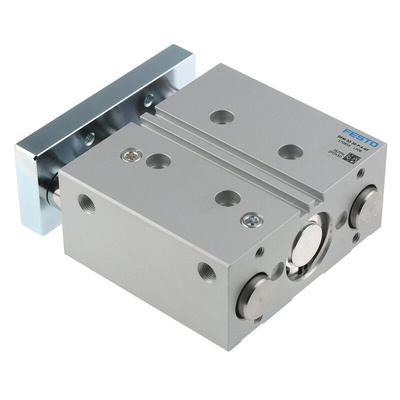

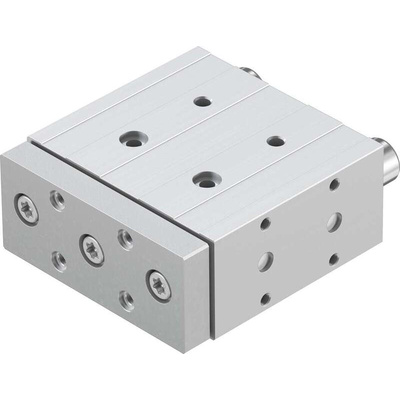

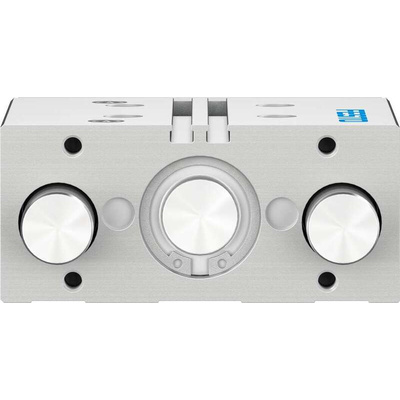

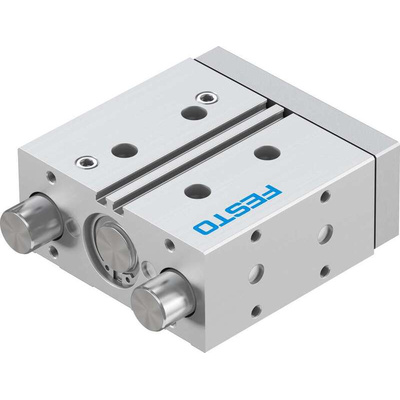

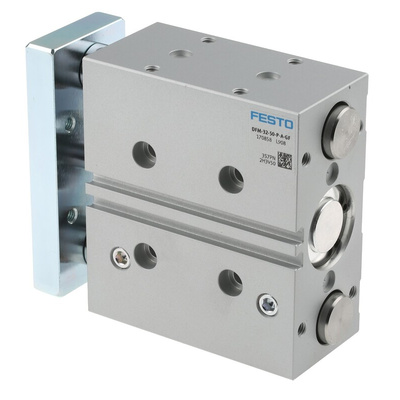

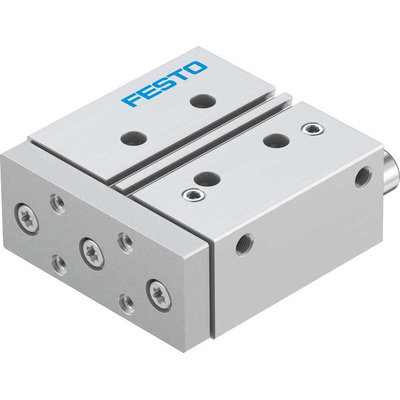

Festo Pneumatic Guided Cylinder, Double-Acting Type, 50mm Stroke Length - DFM-32-50-P-A-GF

Move large objects around your automated system in a flash with this pneumatic guided cylinder from Festo. It does double duty by using compressed air to move its piston back and forth, so you get a powerful stroke in both directions. A maximum speed of 0.8m/s means the unit keeps up with fast-moving applications. Its NBR seals are resistant to corrosion and wear to ensure a long, leak-free service life in heavy-duty industrial environments.

Features & Benefits

• Can be mounted in any position for flexible installation
• Safe for use in harsh environments, thanks to a broad operating temperature range between -20°C and +80°C
• G1/8 port size for compatibility with standard pneumatic connectors
• Housing is made from wrought aluminium alloy for resistance to corrosion and impact
• Built-in cushioning plates keep noise to a minimum and reduce the risk of wear, for a long service life

Applications

• Industrial automation and control equipment
• Material handling systems
• Packaging facilities

What pressures can this cylinder handle?

This cylinder has a broad operating pressure range of 1.5 to 10 bar, so it's a versatile piece of kit.
