DFM-32-80-P-A-GF, Festo Pneumatic Guided Cylinder - 170859, 32mm Bore, 80mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

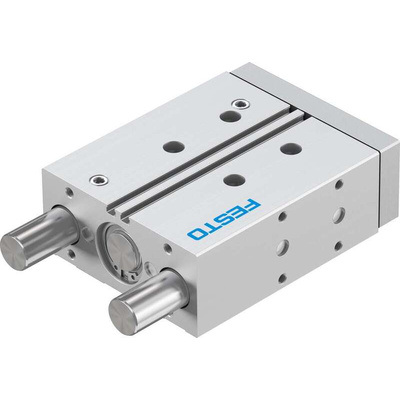

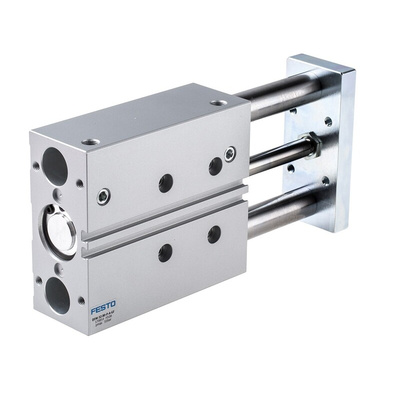

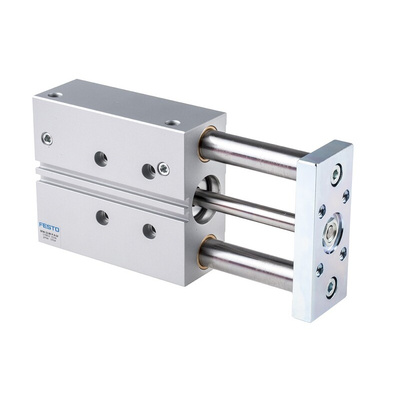

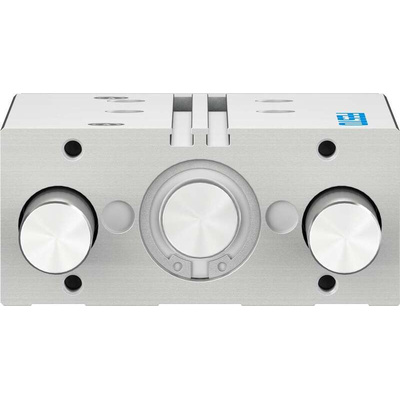

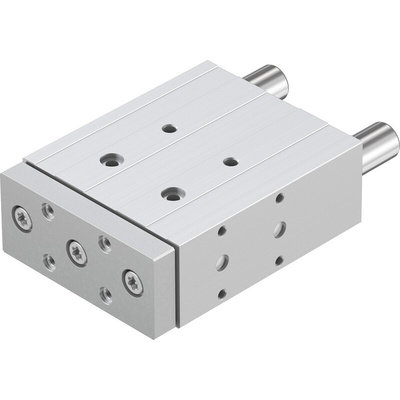

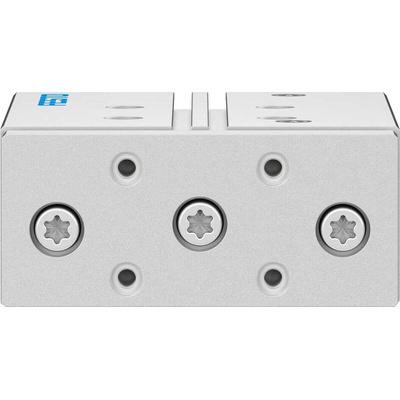

Festo Pneumatic Guided Cylinder, 80mm Stroke Length, Double-Acting Type - DFM-32-80-P-A-GF

When it comes to precise movement in your automated machinery, this pneumatic guided cylinder from Festo takes the lead. It's a double-acting type that can extend and retract its rod to move objects in two directions. Thanks to a maximum speed of 0.8m/s, you get the rapid-fire movement needed to boost productivity. A commonly used G1/8 port size means this is a good fit for many standard pneumatic setups. A broad operating pressure range of 1.5 to 10 bar means it's up to the challenge of moving objects in heavy-duty applications.

Features & Benefits

• Cushioning plates dampen impact to reduce noise and minimise wear
• Performs reliably at temperatures between -20°C and +80°C
• NBR seals are resistant to wear and corrosion to reduce the risk of leaks

Applications

• Material handling
• Food and beverage processing
• Packaging machinery
• Pharmaceutical manufacturing

How durable is this cylinder?

Its housing is made of wrought aluminium alloy and its piston rod is made of high-alloy stainless steel. These materials are resistant to impact and corrosion, so you can rely on this unit to handle the pressure of harsh environments.

Festo DFM/DFM-B

Festo Pneumatic Cylinders Operating Manual

DFM-32-80-P-A-GF Specification Sheet
