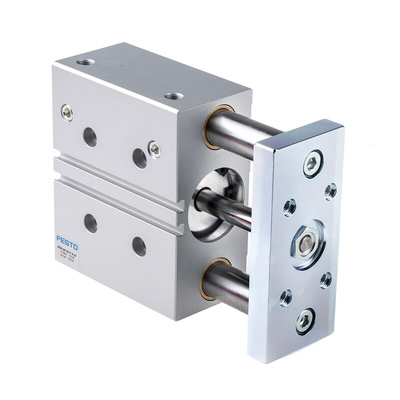

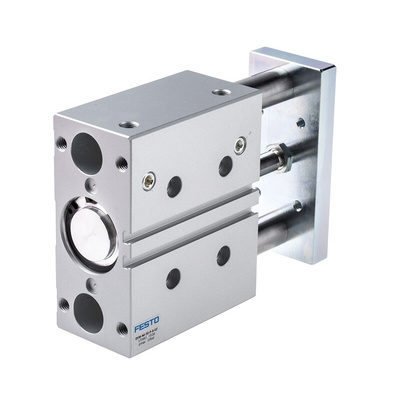

DFM-40-50-P-A-GF, Festo Pneumatic Guided Cylinder - 170865, 40mm Bore, 50mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 10 Bar Maximum Operating Pressure, G1/8 Connection - DFM-40-50-P-A-GF

Use this pneumatic guided cylinder from Festo to move heavy objects on factory equipment. It's a double-acting device with a yoke system that moves back and forth to safely push or hold substantial loads. Integrated plain bearings provide stability to this component, making it suitable for heavy-duty industrial applications. It comes with a durable wrought aluminium alloy cover and housing that resists corrosion, so you can depend on it for long-lasting in harsh conditions. For precise operation, this cylinder is compatible with proximity sensors.

• Flexible cushioning plates at both ends prevent damage from the piston rod's force
• Wide operating temperature range between -20°C and +80°C for use in challenging environments
• Durable NBR seals stop air leakage for effective performance
• High alloy steel piston rods resist mechanical impact for a long service life

Applications

• Material handling equipment
• Clamping devices
• Food and beverage production

How do I maintain this guided cylinder?

This cylinder is made of robust materials that are built to last a long time without degrading, so no maintenance is needed.

Festo DFM/DFM-B

Festo Pneumatic Cylinders Operating Manual

DFM-40-50-P-A-GF Specification Sheet
