DFM-50-100-P-A-GF, Festo Pneumatic Guided Cylinder - 170874, 50mm Bore, 100mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

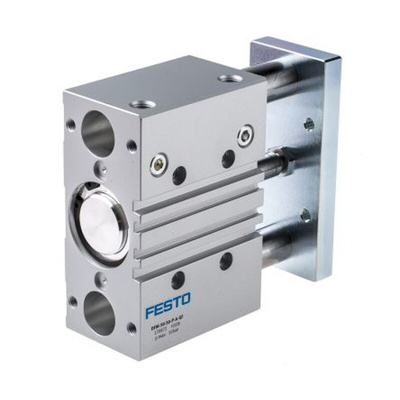

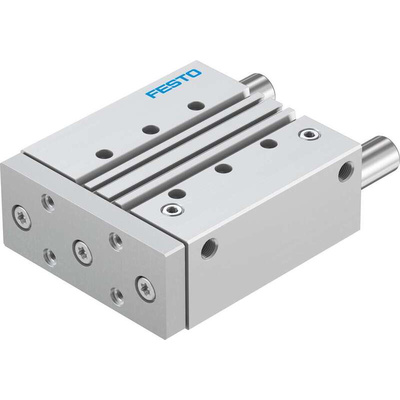

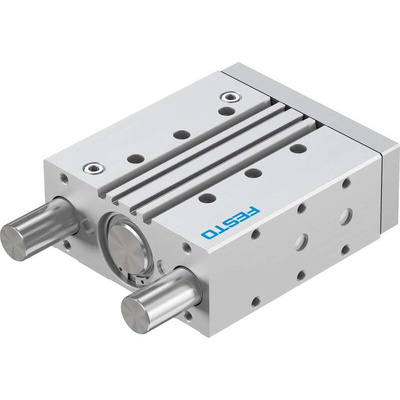

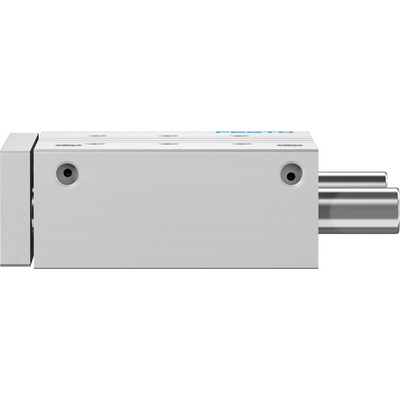

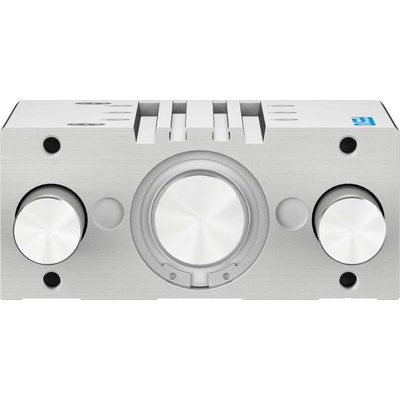

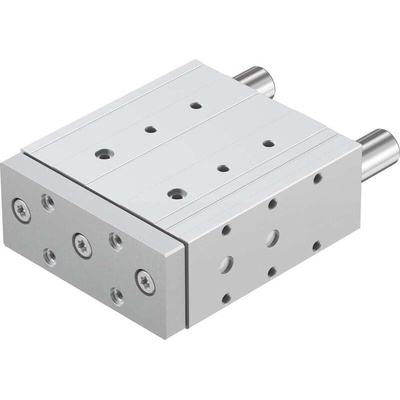

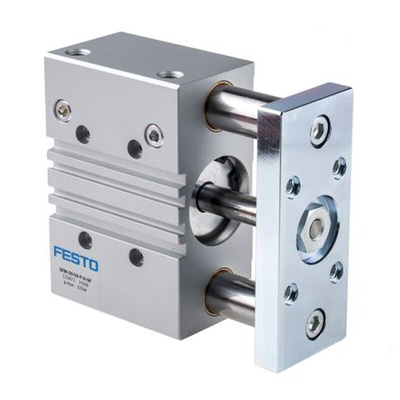

Festo Pneumatic Guided Cylinder, Yoke Operating Mode, G1/4 Port Connection - DFM-50-100-P-A-GF

Reaching for a device to carry out lifting, clamping and stopping tasks in your pneumatic setup? Grab this pneumatic guided cylinder from Festo for the job. It offers precision control thanks to its double-acting design that uses twice the airflow of its single-acting counterparts. The unit's endpoints are protected by elastomer cushions that reduce collision energy to 1Nm for durability. A rapid 0.6ms operating time provides instant actuation to boost your productivity.

Features & Benefits

• Regulation 50mm bore and 100mm stroke for wide system compatibility
• Reliable performance in low temperatures of -20°C through to +80°C
• Operates in pressures between 1 and 10 bar for versatility
• Typical 1178N advance stroke at a theoretical force of 6 bar to make shifting heavy loads easier

Applications

• Aerospace engineering
• Automotive manufacture
• Recycling plants

What are the dimensions of this pneumatic guided cylinder?

It has compact dimensions of 214 (L) x 148 (W) x 64mm (H), so it's ideal for space-tight areas.

How much does this device weigh?

A handy weight of 5.4kg means it doesn't add excess load and strain to your infrastructure.
