DFM-63-100-P-A-GF, Festo Pneumatic Guided Cylinder - 170881, 63mm Bore, 100mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

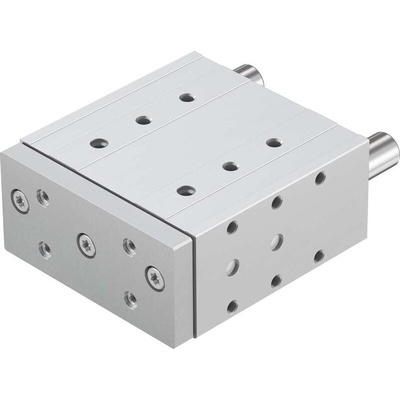

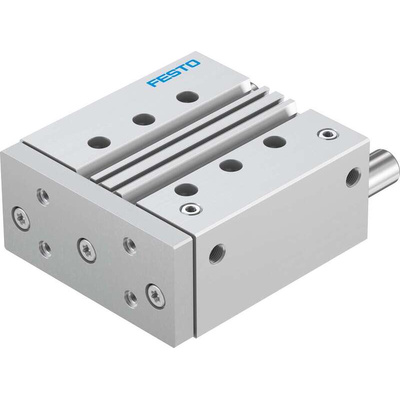

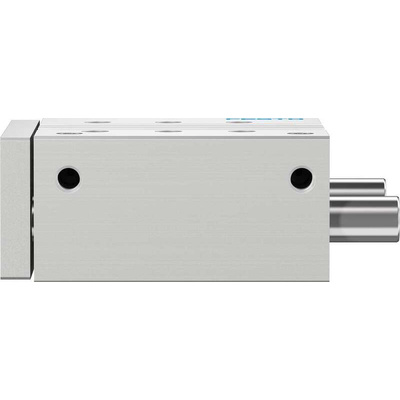

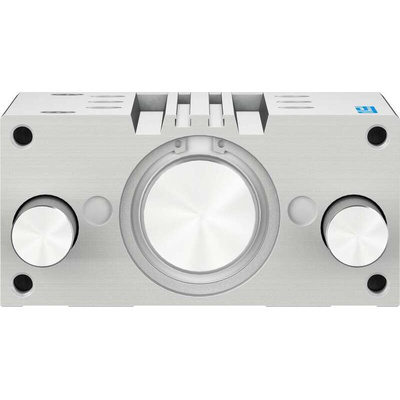

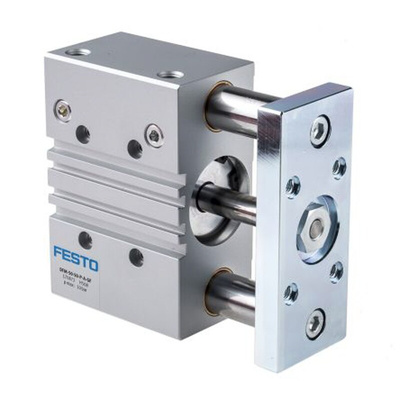

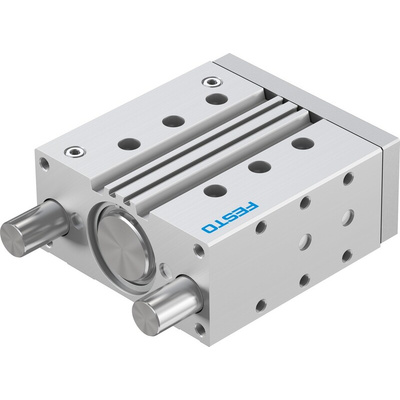

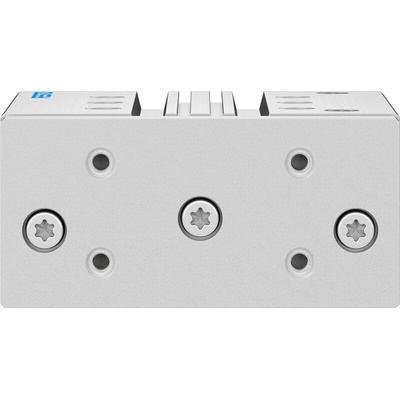

Festo Pneumatic Guided Cylinder, 63mm Bore, G1/4 Port Connection - DFM-63-100-P-A-GF

Keep your workflow from going off the rails with this pneumatic guided cylinder from Festo. It provides balance to your industrial operations by offering resistance to high loads and torque. In a single enclosure, you'll find both a guide unit and a double-acting drive that works twice as hard as regular cylinders while using less energy. This component won't buckle under pressure thanks to its wrought aluminium alloy barrel that can withstand abrasion, corrosion and mechanical stress.

Features & Benefits

• 10 bar maximum operating pressure makes it suitable for an array of applications
• NBR seals don't corrode when exposed to chemicals and oils, maintaining pressure and prolonging performance
• Elastomer cushioning plates minimise noise and vibration while protecting the assembly against impact

Applications

• Pulp and paper mills
• Agricultural equipment
• Industrial automation

Can I use this pneumatic cylinder in harsh industrial conditions?

Yes. This pneumatic cylinder operates in a broad temperature range between -20°C and +80°C, so it's suitable for use in challenging environments.

What media are suitable for use with this pneumatic cylinder?

You should only use compressed air with this product.
