CRVZS-10, Festo Air Reservoir 10 l, G 1, CRVZS Series, 16bar

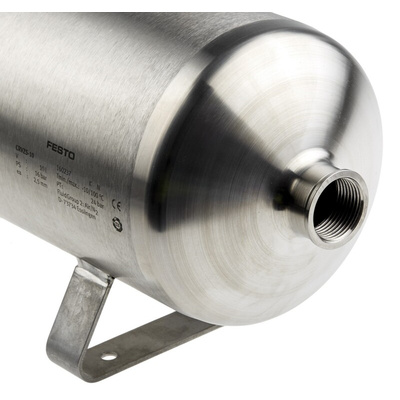

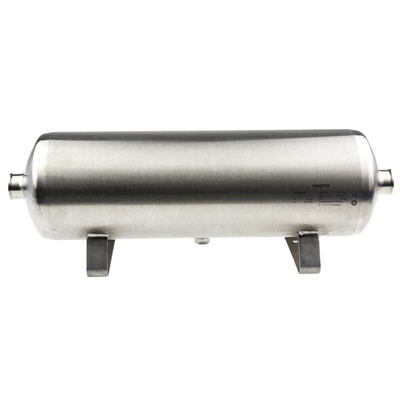

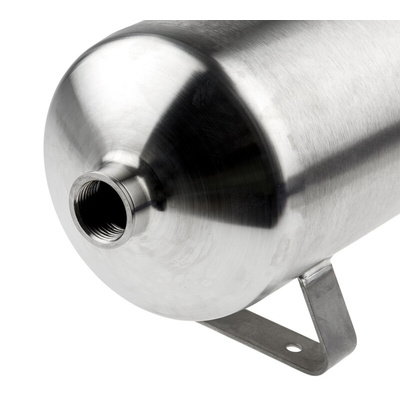

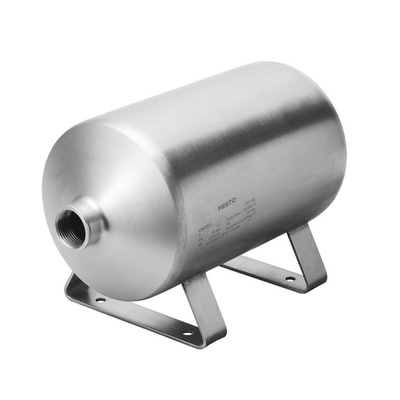

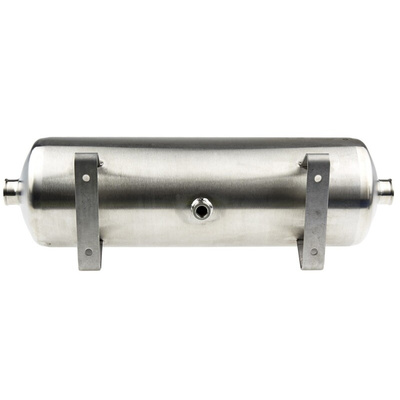

Festo Air Reservoir, 10L Volume, 16 Bar Maximum Pressure - CRVZS-10

Control airflow in your industrial pneumatic systems with this air reservoir from Festo. It compensates for pressure fluctuations in compressed air systems and ensures equipment performs at its best. With a 10-litre volume, it also serves as an accumulator for setups that need to keep a large air supply on hand. The high alloy steel body is durable and resistant to corrosion, so it's suitable for use in harsh environments. As this reservoir only needs a line connection, it's easy to install.

• Wide operating temperature range of -10°C to +100°C for use in challenging environments
• Maximum pressure of 16 bar for heavy-duty applications
• Free of copper and polytetrafluoroethylene (PTFE) to prevent corrosion and deformation
• 130Nm tightening torque for connecting thread to ensure a secure link

Applications

• High-pressure and low-pressure compressors
• Heating, ventilation and air conditioning (HVAC) systems
• Process and packaging applications

How much does this reservoir weigh?

This air reservoir weighs 6.45g, so it provides stability without straining your setup.

How do I mount this air reservoir?

You can mount this air reservoir using the through holes on its body. It's important to ensure that the condensate drain is facing downwards.

Festo Air reservoirs

CRVZS-10 Specification Sheet
