CRVZS-2, Festo Air Reservoir 2 l, G 1/2, CRVZS Series, 16bar

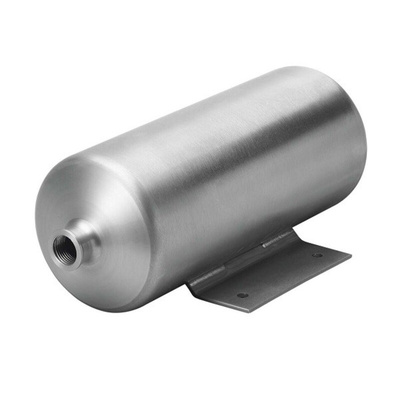

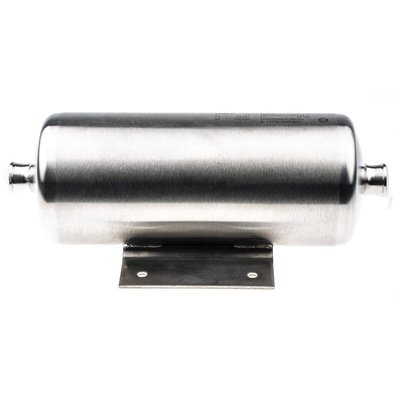

Festo Air Reservoir, 2L Volume, 16 Bar Maximum Pressure - CRVZS-2

Use this air reservoir from Festo to keep pneumatic systems operating with steady and reliable pressures. It can store up to two litres of air to reduce high pressures. Combine it with a control valve to efficiently release air back into the system to compensate for sudden drops or to supply quick-acting drives. A bore size of 28mm makes it easy to fit on tubes in narrow spaces. Thanks to its light weight of 1.7g and an attached bracket, the unit is easy to mount vertically or horizontally on a wall or post.

• High-alloy stainless steel construction makes it strong, corrosion-resistant and easy to clean
• Maximum safe pressure of 16 bar for use with medium-pressure and high-pressure systems
• Free from copper and polytetrafluoroethylene (PTFE) to reduce contamination in air supplies
• Wide operating temperature range of -10°C to +100°C for use in harsh conditions

Applications

• Packaging systems
• Electronics assembly
• Biotech and pharmaceutical applications
• Food and beverage industries

What media is this air reservoir suitable for?

This reservoir is suitable for use with compressed air or nitrogen, making it ideal for food, pharmaceutical and chemical-processing industries.

Festo Air reservoirs

CRVZS-2 Specification Sheet
