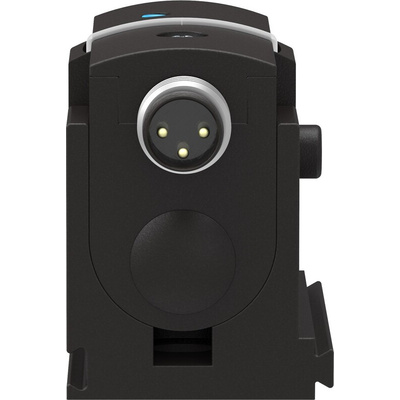

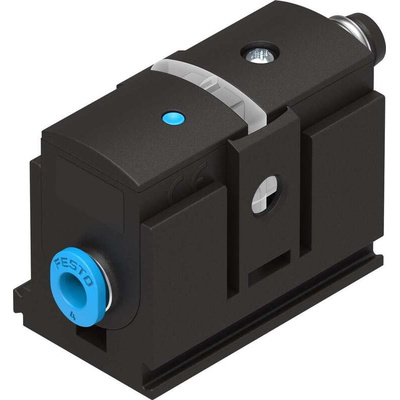

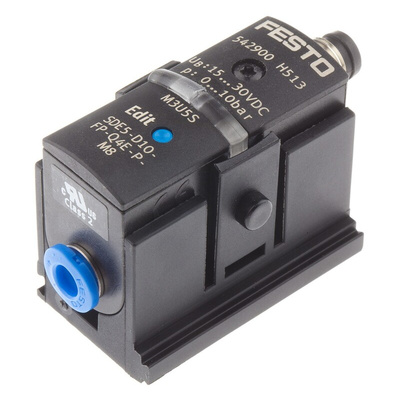

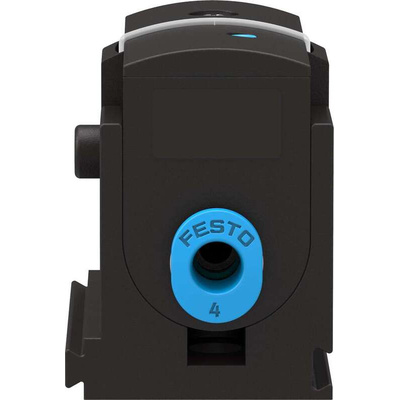

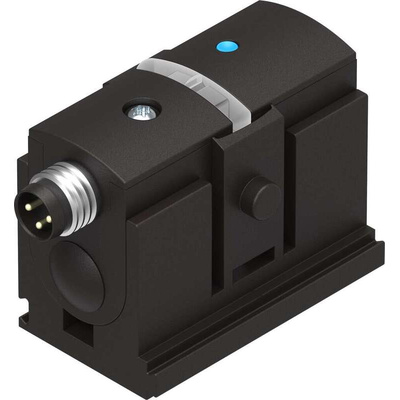

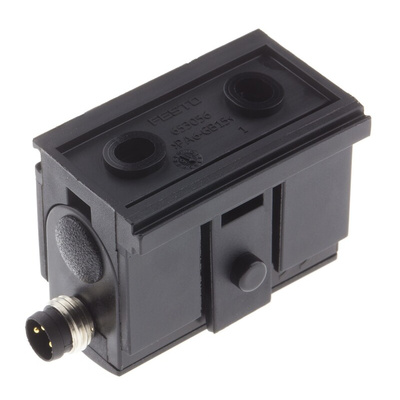

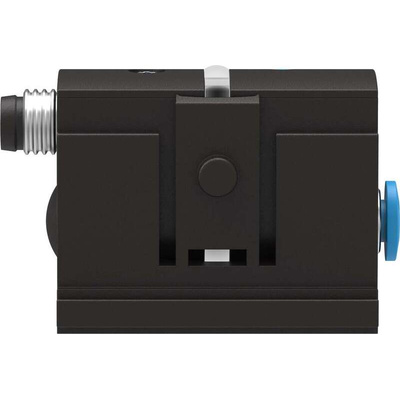

SDE5-D10-FP-Q4E-P-M8, Festo Pressure Sensor, 12 to 24V dc, IP40 10bar

Festo Pressure Sensor, 100mA Maximum Output Current, 15 to 30V DC Operating Voltage - SDE5-D10-FP-Q4E-P-M8

Want a quick and easy way to make sure your system doesn't go beyond its limits? Use this pressure sensor from Festo. It measures current and backflow pressures between 0 and 10 bar to suit your parameters. Setting up the unit is simple as it has standard QS-4 fittings. Thanks to the reverse polarity protection, your device shrugs off any sudden surges to maintain consistent operation. This sensor is highly accurate, with a variation of just ±0.3%.

Features & Benefits

• Performs reliably in extreme conditions thanks to its 0°C to +50°C operating temperature range
• Yellow LED indicator lets you quickly check on its status
• IP40 rating indicates it's completely touch-proof for safe handling

Applications

• Food and drink production
• Manufacturing facilities
• Processing systems

How can I connect this pressure sensor?

Connecting the device to your existing setup is easy – you just need plastic tubing (126-2784) and a connecting cable (203-1171) that suits your system.

Why do I need to measure pressure in air systems?

Too much pressure can start to buckle the joints of your equipment. This damage can lead to system failure or even injuries to personnel. By monitoring the pressure, these issues can be caught early and fixed before a problem can occur.

Festo SDE5

SDE5-D10-FP-Q4E-P-M8 Specification Sheet

Brochure - Core Product Range

Instruction Sheet - SDE5 Pressure Sensor
