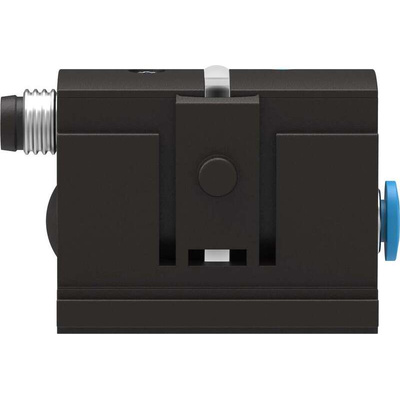

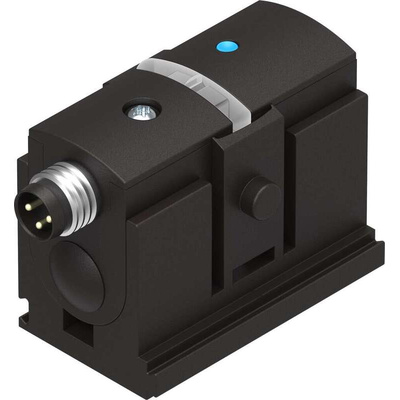

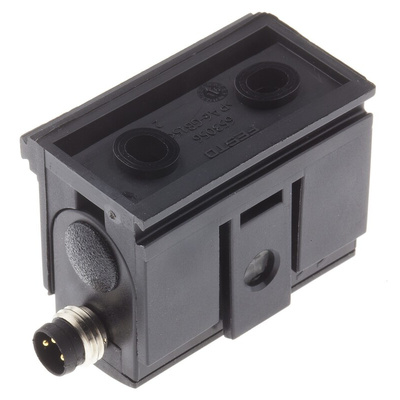

SDE5-D10-O-Q4E-P-M8, Festo Pressure Sensor, 5V dc, IP40 10bar

Festo Pressure Sensor, PNP Switch Output Type, 19g Weight - SDE5-D10-O-Q4E-P-M8

Keep tabs on your pneumatic system with this pressure sensor from Festo. It monitors the compressed air in your pipes to make sure the pressure level stays within ideal limits. Part of the SDE5 series, you can also use this versatile all-rounder for regulator monitoring, object detection via back pressure and suction confirmation in vacuum applications. The wear-resistant polyoxymethylene and polyamide housing can handle the knocks and bumps of heavy-duty use without breaking stride. Plus, thanks to the handy LED status indicator, you've got at-a-glance reassurance that everything's working as it should.

Features & Benefits

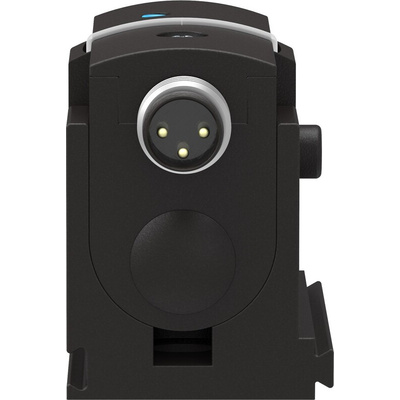

• M8 plug connector for quick and simple electrical connection
• Hefty 0 to 10 bar pressure range can cope with challenging settings
• IP40 rating indicates it's protected against damage from solid objects larger than 1mm

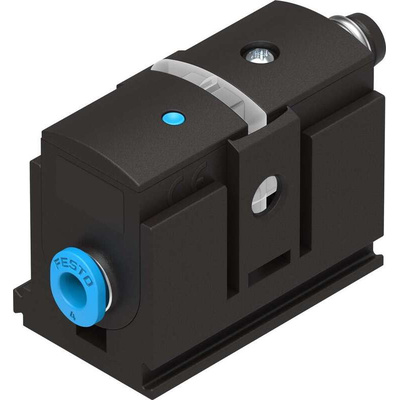

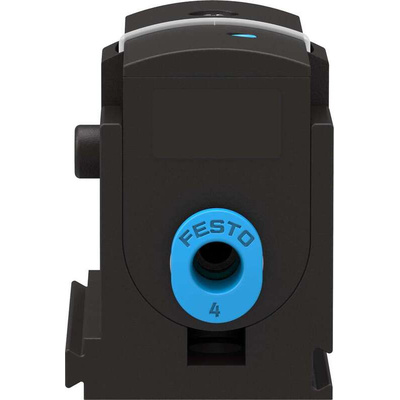

• Hassle-free QS-4 push-in pneumatic fitting makes installation a breeze

Applications

• Vehicle manufacturing
• Industrial processes
• Medical technology

What measurement method does this sensor use?

This capable piece of kit uses a piezoresistive sensor to measure pressure in your system for rapid, high-resolution readings you can rely on.

Festo SDE5

SDE5-D10-O-Q4E-P-M8 Specification Sheet

Brochure - Core Product Range

Instruction Sheet - SDE5 Pressure Sensor
