SDE5-D10-O-Q6E-P-K, Festo Pressure Sensor, 15 to 30V dc, IP40 10bar

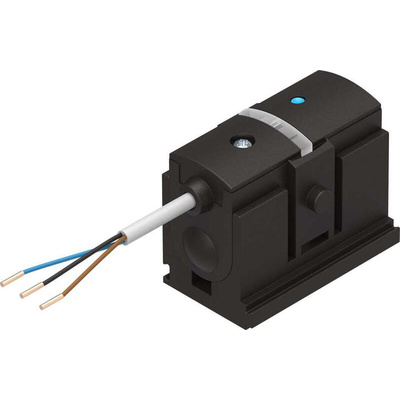

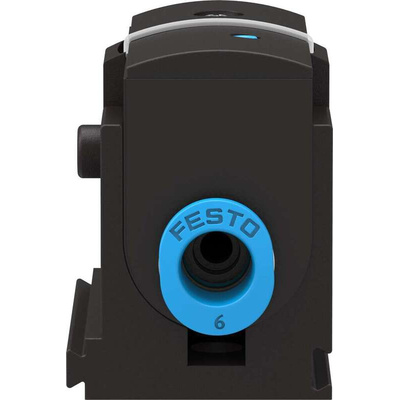

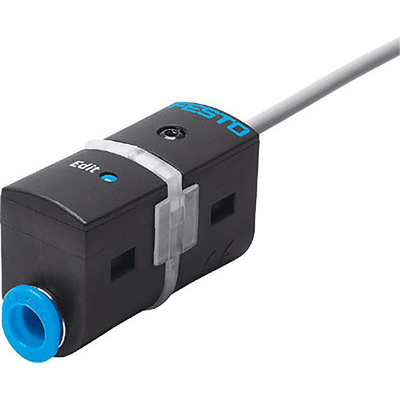

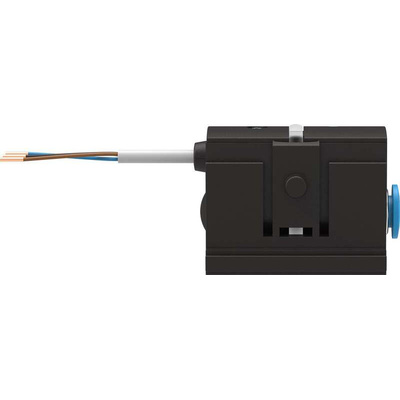

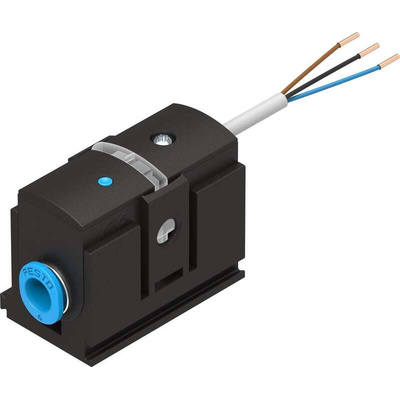

Festo Pressure Sensor, Compressed Air Medium, Piezoresistive Measurement Method - SDE5-D10-O-Q6E-P-K

Do you want to keep track of the pressure in your pneumatic system? This Festo pressure sensor takes the strain for you. When the level falls or rises past the preset threshold, the contacts in this unit close and transmit an electrical signal via its three conductors. With its broad measuring range between 0 and 10 bar, this device is a versatile piece of kit. It's also mountable in any position to allow for flexible fitting in your work area. Monitoring its switching status is a breeze thanks to the yellow LED indicator.

Features & Benefits

• Light weight of 47g keeps your setup free of unnecessary strain
• IP40 rating shows it's protected against tools and small wires larger than 1mm
• PA housing resists wear and impact, so it holds its own in heavy-duty applications
• Broad operating voltage range between 15 and 30V lets you use it with common electrical supply sources

Applications

• Marine technology
• Aviation industry
• Automotive manufacture

How accurate is this sensor?

Thanks to its high repetition accuracy of ±0.3% of the full scale, this product is the ideal choice for precision measuring.

Festo SDE5

SDE5-D10-O-Q6E-P-K Specification Sheet

Brochure - Core Product Range

Instruction Sheet - SDE5 Pressure Sensor
