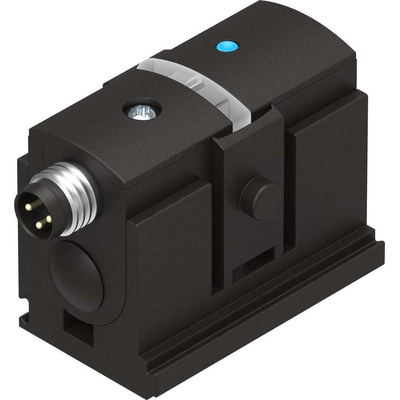

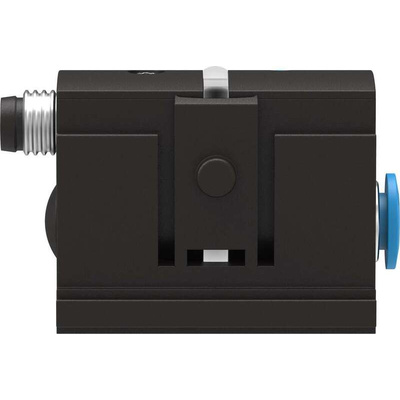

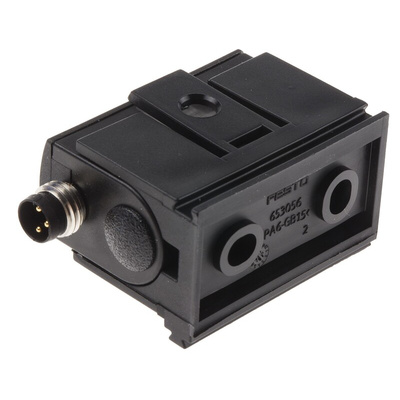

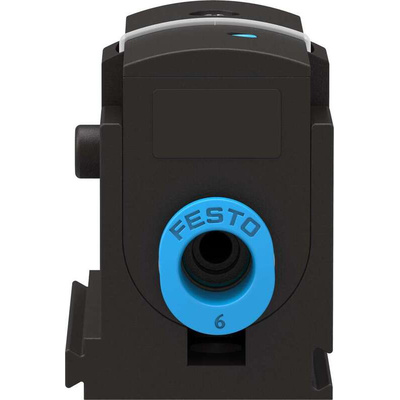

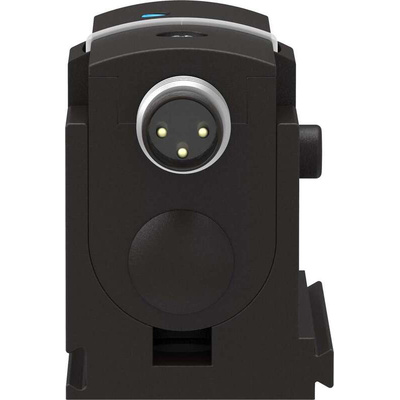

SDE5-V1-O-Q6E-P-M8, Festo Pressure Sensor, 15 to 30V dc, IP40 0bar

Festo Pressure Sensor, Compressed Air Medium, 0°C to +50°C Operating Temperature Range - SDE5-V1-O-Q6E-P-M8

Monitor fluid flow in your industrial application with this pressure sensor from Festo. When the level drops or rises by too much, the device transmits an electrical signal via its built-in 3-pin M8 connection. This means you can respond quickly and see to it that your process keeps on working. The threshold values are adjustable between -1 and 0 bar for precise control. Thanks to its accuracy of ±0.3% of the full scale, this unit's measurements are spot on every time.

Features & Benefits

• Maximum operating voltage of 30V DC means it's suitable for powerful electrical systems
• Easy monitoring of the switching status via a yellow LED indicator
• 19g weight doesn't put a strain on your setup
• Mounts in any position to suit your requirements
• PA housing resists wear and impact to ensure a long service life in heavy-duty applications

Applications

• Quality control
• Mining industry
• Semiconductor processing
• Medical equipment

What's the IP rating of this pressure sensor?

It's IP40-rated, so it's protected against tools and small objects larger than 1mm.

Can I use this product in heating systems?

Yes, you can. This pressure sensor carries media with a maximum temperature of +50°C, so it's suitable for use in heating systems.

Festo SDE5

SDE5-V1-O-Q6E-P-M8 Specification Sheet

Brochure - Core Product Range

Instruction Sheet - SDE5 Pressure Sensor
