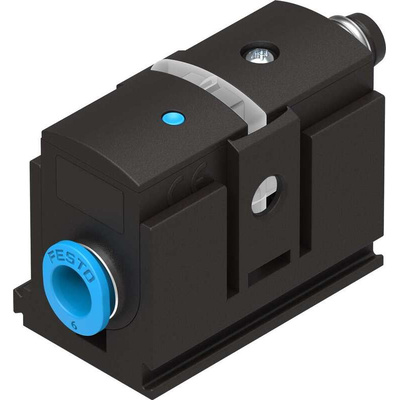

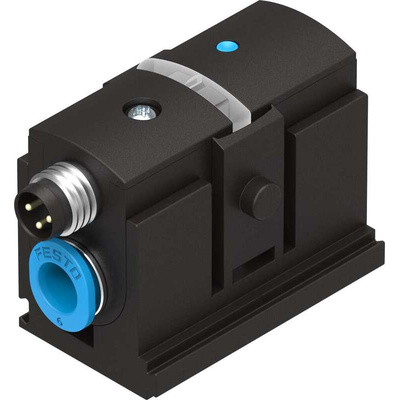

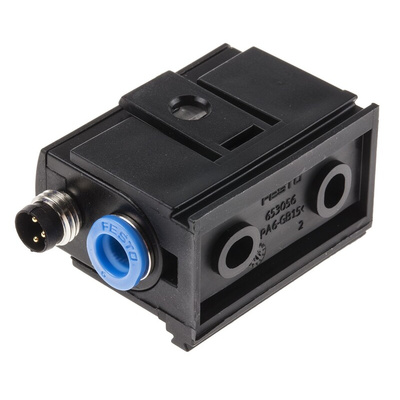

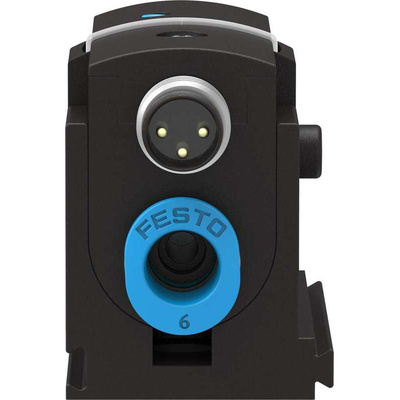

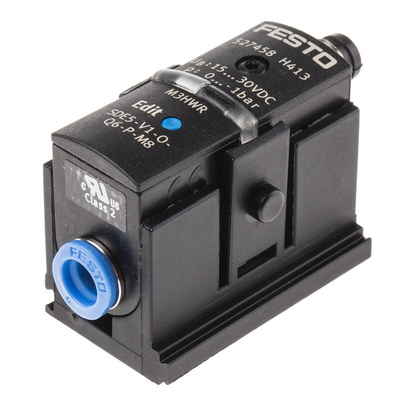

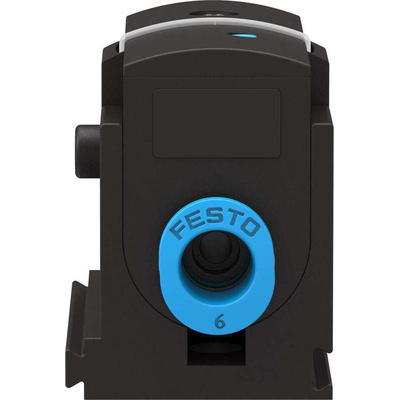

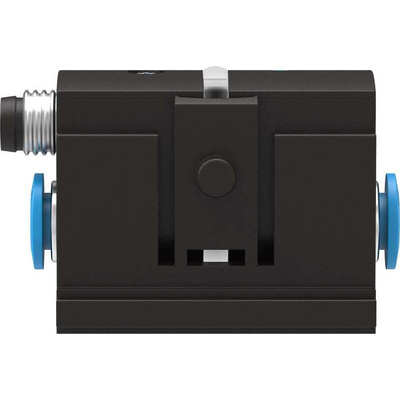

SDE5-V1-O-Q6-P-M8, Festo Pressure Sensor, 15 to 30V dc, IP40 0bar

Festo Pressure Sensor, 6mm Tubing Port Connection, -1 Bar Minimum Operating Pressure - SDE5-V1-O-Q6-P-M8

Monitoring pressure in your pneumatic system is a breeze with this pressure sensor from Festo. With an operating range between -1 and 0 bar, it's suitable for overseeing low and negative-pressure applications. A standard 6mm port connection makes installation quick and easy. For an at-a-glance diagnostic check, you can simply refer to the built-in status indicator LED. This unit performs reliably in operating temperatures between 0°C and +50°C to cope with challenging industrial conditions.

Features & Benefits

• Supply voltage between 15V and 30V DC for wide compatibility
• Selectable output functions allow you to customise the sensor to suit your needs
• IP40 rating indicates protection against accidental touch and solid objects larger than 1mm
• QS-6 pneumatic connection for an easy fit with Festo pneumatic parts

Applications

• Production facilities
• Laboratory research
• Packaging plants

What type of pressure sensor is this?

It's a piezoresistive pressure sensor that measures pressure via changes in electrical resistance. This type of sensor is a robust choice suitable for setups with high levels of vibration.

Is this pressure sensor programmable?

Yes, it has a teach-in function which allows you to enter your chosen parameters.

Festo SDE5

SDE5-V1-O-Q6-P-M8 Specification Sheet

Brochure - Core Product Range

Instruction Sheet - SDE5 Pressure Sensor
