SIEN-M5B-PS-K-L, Festo SIEN Series Inductive Barrel-Style Proximity Sensor, M5 x 0.5, 0.8 mm Detection, PNP Output, 10 → 30 V,, Индуктивный датчик приближения

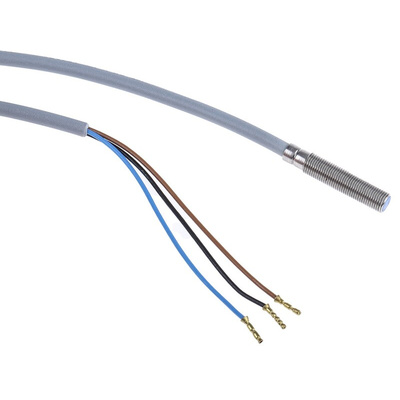

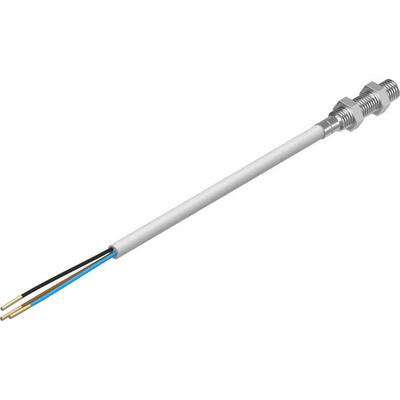

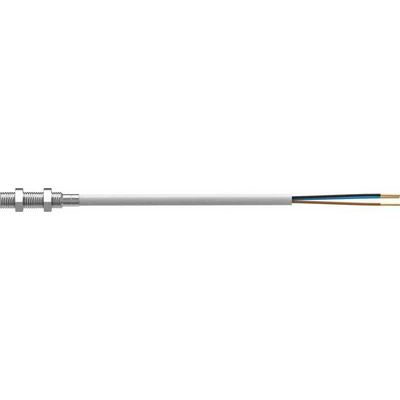

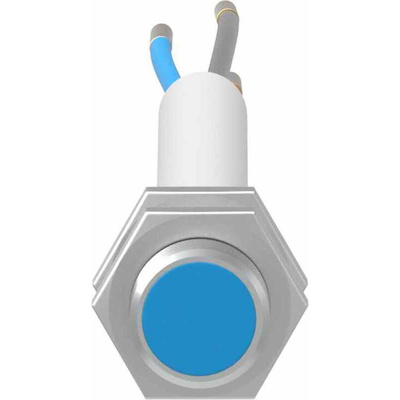

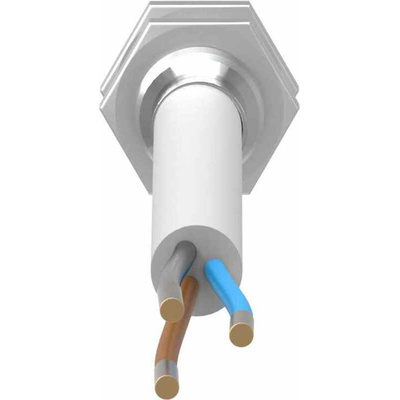

Festo Inductive Proximity Sensor, Barrel, PNP Output - SIEN Series - SIEN-M5B-PS-K-L

Need to detect metallic objects at close range in a high-vibration or high-shock area? This barrel-bodied inductive proximity sensor from Festo is perfect for the job. Its ingress protection (IP) rating of 67 means it can withstand temporary immersion in water and it's unaffected by oil, dirt or surface finish. The sensor detects metal within a range of 0.8 mm. It can be used at temperatures ranging from -25°C to +70°C, making it suitable for a wide range of environments.

• Housing made from durable polyamide and non-corrosive high-alloy steel
• Flush mounting style is ideal for embedding in a panel
• Supply voltage of 10 to 30 V DC for safety
• M5 x 0.5 thread size is compact and easy to work with
• Yellow LED (light-emitting diode) operating status display makes it easy to monitor

Application Information

• Metal-detecting equipment used on oil rigs
• Mining equipment

Does this sensor contain any hazardous materials?

The sensor is free from copper and PTFE (polytetrafluoroethylene), and it contains only minimal levels of other hazardous substances.

Can this sensor stand up to electrical surges?

The sensor has a moderate surge-protection strength of 1 kV.

Festo Proximity sensors SIE...

SIEN-M5B-PS-K-L Specification Sheet

Declaration of Conformity - 1215560

InstructionSheet - 1215560
