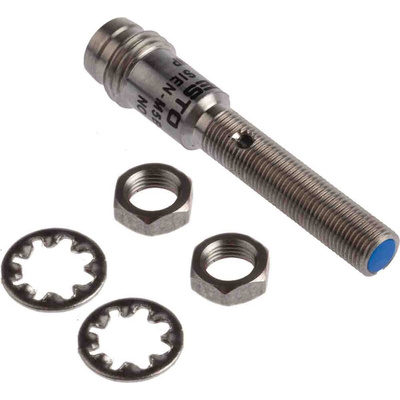

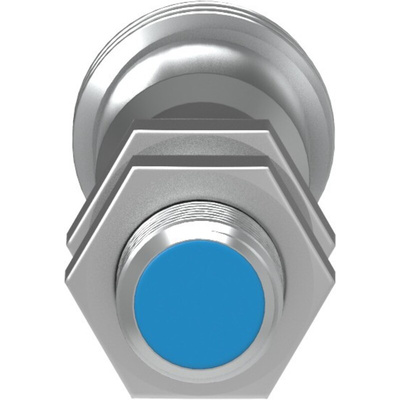

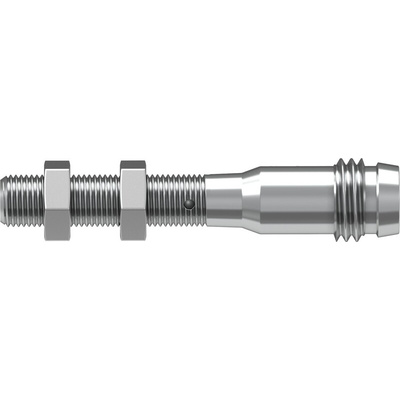

SIEN-M5B-PS-S-L, Festo Inductive Barrel-Style Proximity Sensor, M5 x 0.5, 0.8 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

Festo M5 x 0.5 Inductive Proximity Sensor, 0.8 mm Detection - SIEN Series - SIEN-M5B-PS-S-L

This barrel proximity sensor from Festo detects metallic objects passing within close range. It works equally well with ferrous and non-ferrous metals. The sensor is unaffected by oil or dirt, and an ingress protection IP67 rating means it's fully protected against dust and water jets. It can stand up to heavy vibrations and shocks as well as immersion in shallow water. Sensors of this kind are commonly used in metal-detecting equipment on oil rigs and industrial machinery.

• Barrel body style
• Detection range of 0.8 mm
• Polyamide housing material
• Length of 38 mm
• Maximum DC voltage of 30 V
• Operating temperature of -25°C to +70°C
• Maximum switching frequency of 3 kHz
• Flush Mount mounting type
• Reverse polarity protection
• Inductive sensor technology
• Unshielded
• Short circuit overload protection
• Supply voltage of 10 to 30 V DC
• Switching current of 200 mA
• M8 - 3 Pin terminal type
• M5 x 0.5 thread size

Range Information

• Festo's range of inductive sensors monitor components made with all metals
• They detect and determine distance within equipment
• Flush mount and non-flush mount options are available
• PNP (Positive-Negative-Positive) and NPN (Negative-Positive-Negative) outputs are available
