LRP-1/4-10, Festo G 1/4 Pneumatic Regulator - 0.1bar to 10bar, 1/4in, 12bar max. input, 159502, Регулятор

LRP Series PrLRP Series Precision Pressure Regulatorecision Pressure Regulator

The LRP series of precision pressure regulators by FESTO offer precise pressure adjustment, both in static and dynamic applications. The regulator benefits from good response characteristics during rapid changes to the operating pressure and flow rate.

Features and Benefits

• Suitable for sensitive applications requiring a hysteresis of 0.02 bar


• In the event of a failure of the compressed air supply, the outlet pressure is vented via a connection to the secondary venting


• The outlet pressure can be set within the pressure regulation range


• Operating pressure fluctuations are almost entirely compensated


• The regulating valve has a pilot-actuated precision constructional design

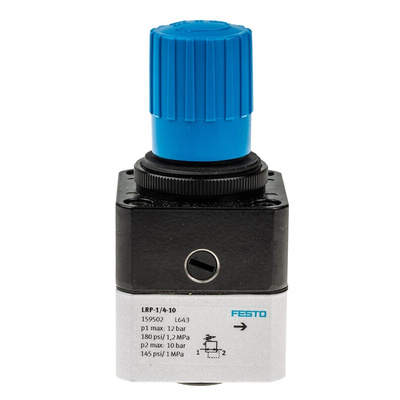

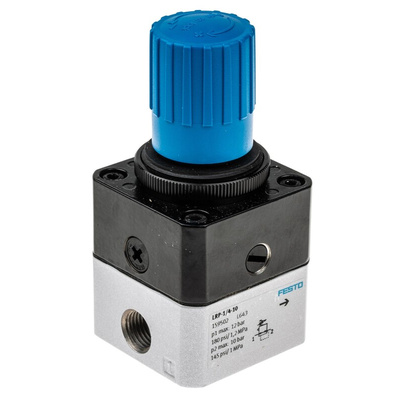

LRP-1/4-10 Precision Pressure Regulator

• G1/4 pneumatic connection

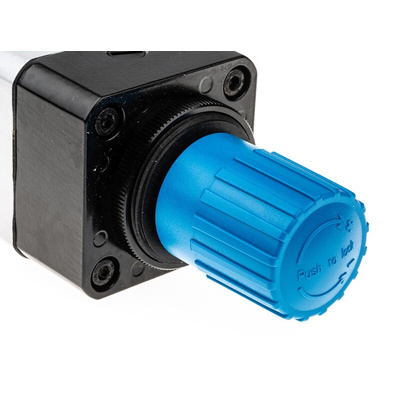

• Rotary knob actuator lock


• Piloted precision diaphragm regulator design structure


• Standard nominal flow rate of 2,300 I/min


• The regulator can either be mounted using front panel installation or line installation


• Aluminium housing materials which conform to RoHS

Regulators and Filter Regulators

Festo LRP/LRPS

LRP-1/4-10 Specification Sheet
