MD-2-24VDC-PA, Festo Series MD-2 24 V dc Solenoid Valve Coil

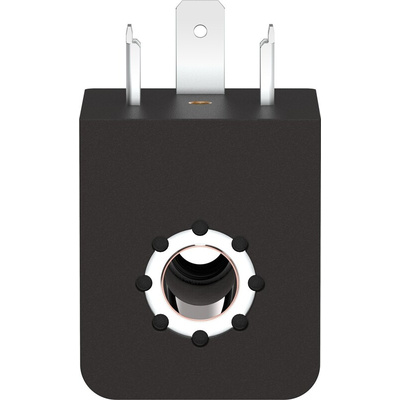

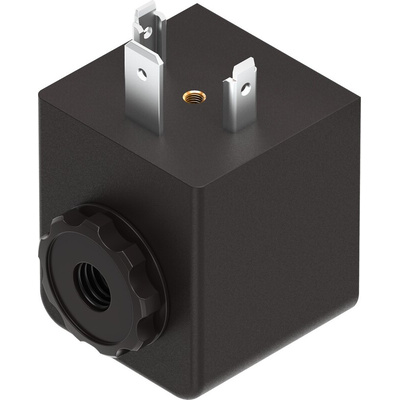

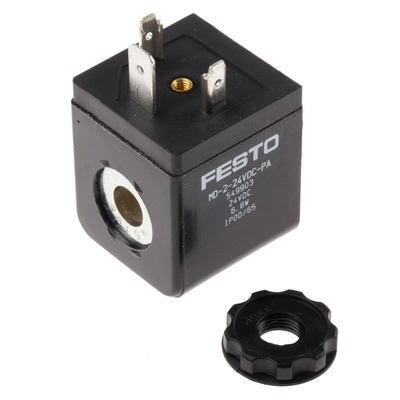

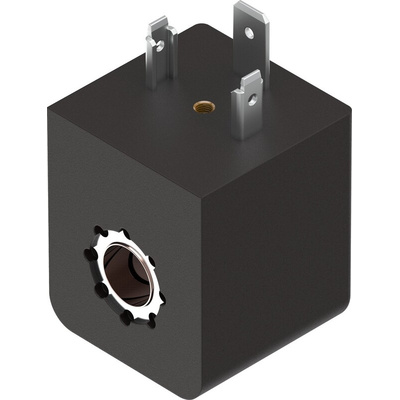

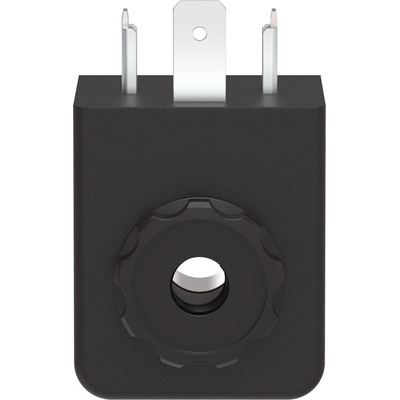

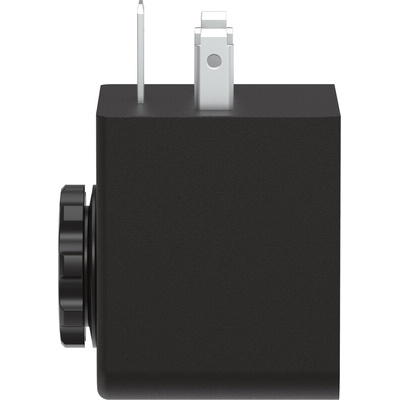

Festo Replacement Solenoid Coil, 24V DC, 6.8W - MD-2-24VDC-PA

Has your pneumatic solenoid coil worn out? Replace it with this solenoid coil from Festo so you can keep your pneumatic system in good working order. The hard-wearing unit is designed for harsh working environments and operates well in fluctuating temperature ranges. You can assemble this versatile component in any position. Its light weight of 110g reduces the power needed for it to operate and improves its efficiency. The coil's copper, steel and Duroplast construction also makes it durable and resistant to moisture.

• Wide operating temperature range of -20°C to +50°C, so suitable for a broad range of environments
• Supplied with knurled nut for easy mounting
• Includes a copper winding that's resistant to heat for enhanced performance
• IP65 (ingress protection) rated housing indicates resistance to dust, condensation and low-pressure water jets from any direction

Applications

• Packaging and material handling
• Industrial automation
• Food and beverage industry

What's the function of a solenoid coil in a pneumatic system?

A solenoid is a low-power electromagnetic switch that consists of a tightly wrapped metal coil around a solid metal core. It produces a uniform magnetic field that can open and close a pneumatic valve by controlling the flow of compressed air or gas.

Festo Solenoid coils

MD-2-24VDC-PA Specification Sheet
