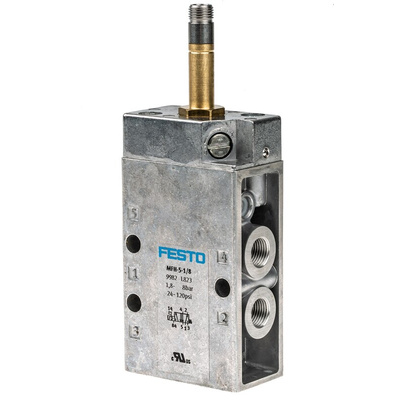

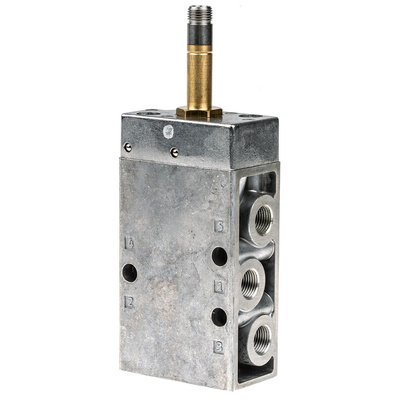

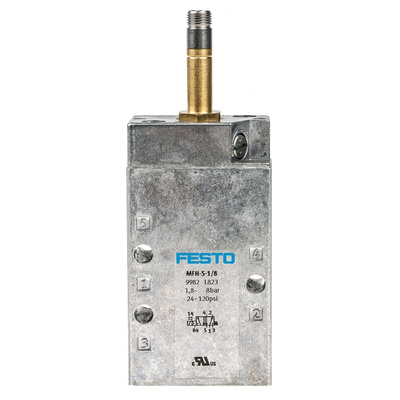

MFH-5-1/8, Festo 5/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/8 MFH Series 12 → 48V dc, 24 → 240V ac, 9982, Клапан

FESTO MFH Series Solenoid Valves

The MFH series of single solenoid valves form part of the Tiger Classic range of valves which are ideal for use in pneumatic or electrical applications. These highly durable valves are available with 5/2 way or 3/2 way function in a range of G thread pipe sizes, depending on the connection you require. These solenoid valves can be mounted on PAL manifold strips or on PRS manifold blocks.

Features and Benefits

• The Tiger Classic range of solenoid pneumatic valves are sturdy and reliable, with an IP65 protection rating and aluminium housing
• Internal pilot air supply with a compressed air operating medium
• Easily interchangeable solenoid coils
• Electrical actuation with F solenoid coil and mechanical spring reset
• The solenoid valve has a highly durable poppet seat design
• The FESTO solenoid valves have optimised response times with U-ring and servo control and a maximum operating pressure of 8 bar
• Operating temperature range of -5 to 40 °C
• Throttleable exhaust air function
• This range features electrically or pneumatically actuated valves

Note

F solenoid coil to be ordered separately.

FESTO MFH-5-1/4

• 5/2 monostable valve function
• Electrical actuation type
• 30.5 mm valve size
• 22-8 bar operating pressure
• Standard nominal flow rate of 1000 I/min
• G1/4 pneumatic connection
• Operation with lubricated medium is possible
• Non-reversible flow direction
• Solenoid Voltage 12,24,42,48V dc;
24,42,48,110,230,240V ac
• Switching time off - 29 ms, switching time on - 9ms

Festo Tiger Classic

MFH-5-1/8 Specification Sheet
