MS4-EM1-1/4, Festo Pneumatic Manual Control Valve MS Series, Клапан

MS Series Manual Soft Start Valves

The FESTO MS series features manually operated on-off valves for pneumatic installations, allowing pressure to gradually build up when turned on and then rapidly venting air when turned off. The rotary knob can be fitted with a padlock when switched off to prevent tampering, and at connection port three a silencer can be fitted. A pressure gauge or sensor can be installed for optional system monitoring and a module connector for connection to MS4 or MS6 combination air preparation units is available.

Features and Benefits

• Available with G1/4 or G1/2 ports


• Can be fitted to MS4 and MS6 Series Modular units


• The on-off valve is activated via a rotary knob


• Non-reversible flow direction


• Rotary slide valve design


• Manual actuation


• Corrosion resistance classification of 2, offering protection against moderate corrosion stress within indoor and industrial applications


• In-line installation mounting type

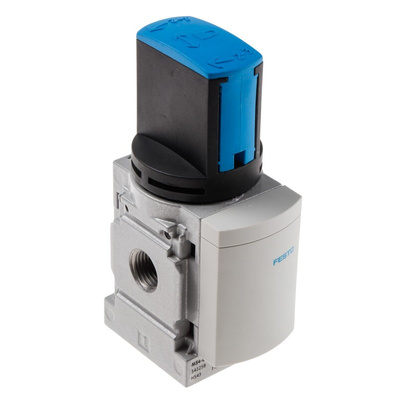

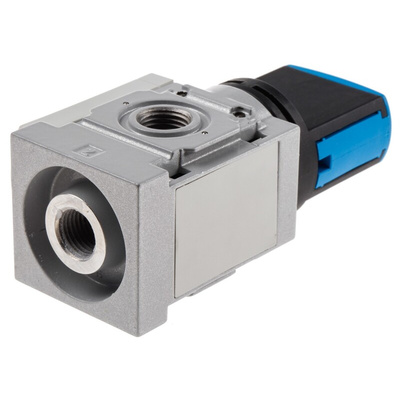

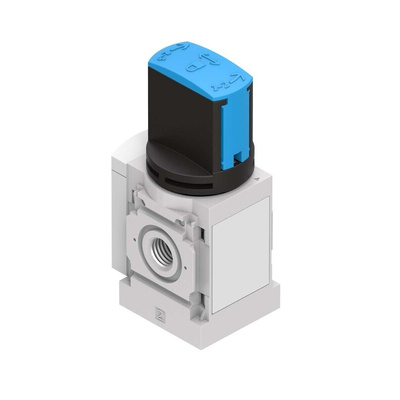

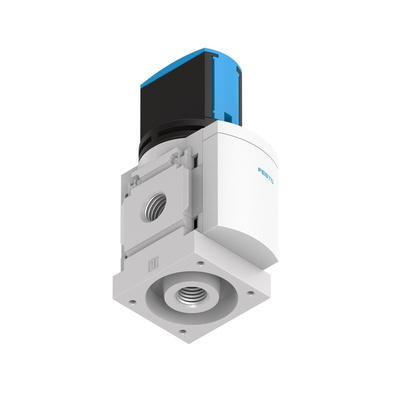

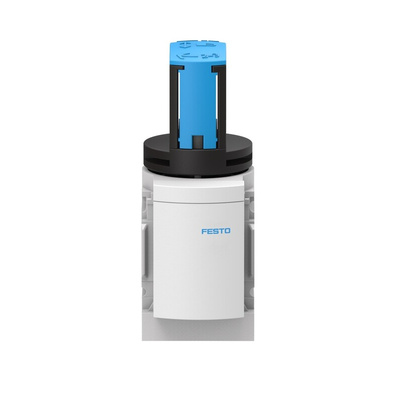

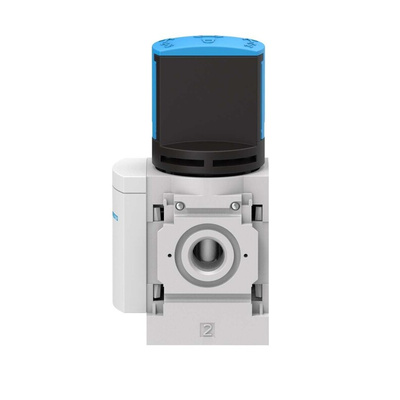

On-off valve MS4-EM1-1/4

• 3/2 bistable valve function


• Standard nominal flow rate of 2,200 I/min


• G1/4 pneumatic connection


• Aluminium die case housing

Soft Start and Quick Exhaust Valves

Festo On-off/soft-start valves, MS series

MS4-EM1-1/4 Specification Sheet
