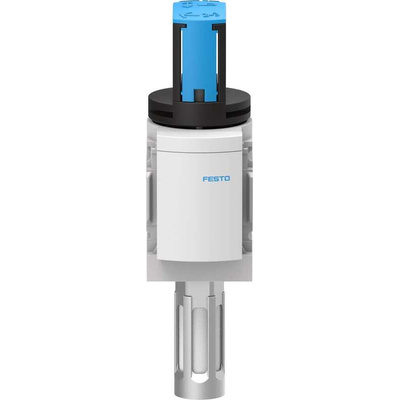

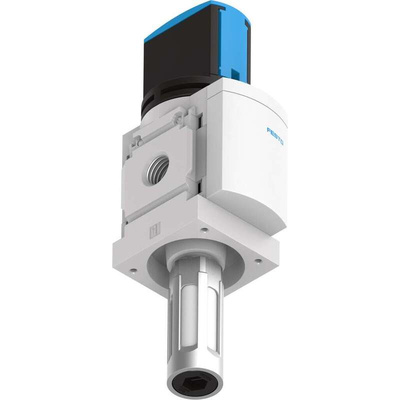

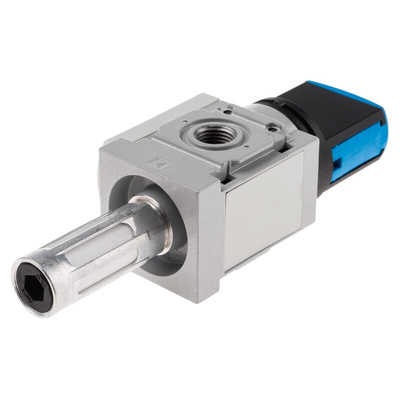

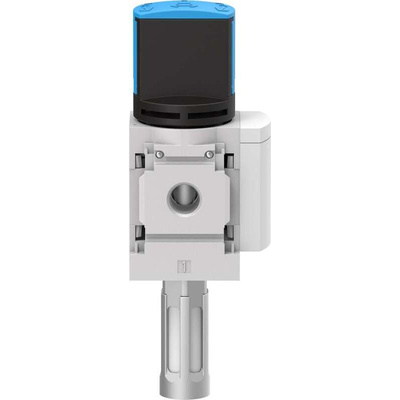

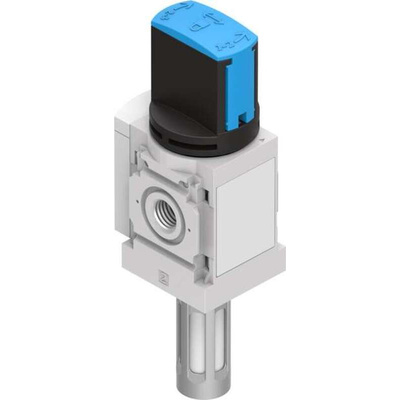

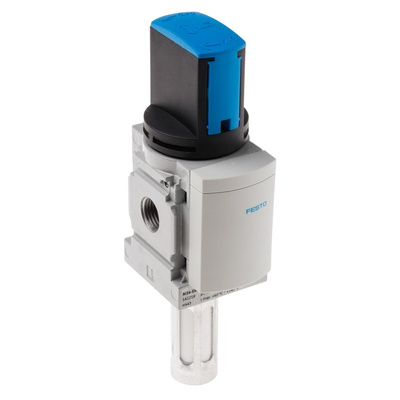

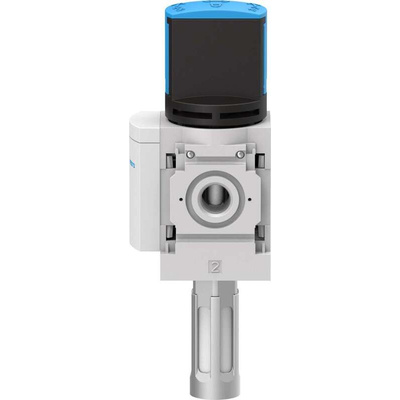

MS4-EM1-1/4-S, Festo Rotary 3/2 Pneumatic Manual Control Valve MS Series, G 1/4, 1/4in, 541259, Клапан

Festo Pneumatic Manual Control Valve, Aluminium Body, 14 Bar Maximum Operating Pressure - MS4-EM1-1/4-S

Get a handle on your airflow with this manual control valve from Festo. It has a rotary knob that makes it a doddle to turn your supply on and off, meaning you can safely start and stop processes or manage pressure. Direct piloting ensures your switching is responsive. With a maximum operating pressure of 14 bar and a flow rate of 2,200L/min, it has no trouble keeping up with high-power systems. Thanks to the shape of the knob, you can see at a glance whether the valve is open or closed. As it's mountable in any position along your line, this is a versatile bit of kit.

Features & Benefits

• Aluminium body is highly durable and resists corrosion
• Free from copper and PTFE, meaning it won't contaminate your clean air supply
• Wide operating temperature range of -10°C to +60°C, to handle harsh conditions

Applications

• Process control
• Food and beverage
• Packaging equipment
• Assembly lines

Can I combine this pneumatic manual control valve with other components?

Yes. The modular design of this control valve makes it easy to add accessories such as a pressure gauge (250-2686) and silencer (121-4320).

Soft Start and Quick Exhaust Valves

Festo On-off/soft-start valves, MS series

MS4-EM1-1/4-S Specification Sheet

Instruction Sheet - MS4-EM1-1/4-S
