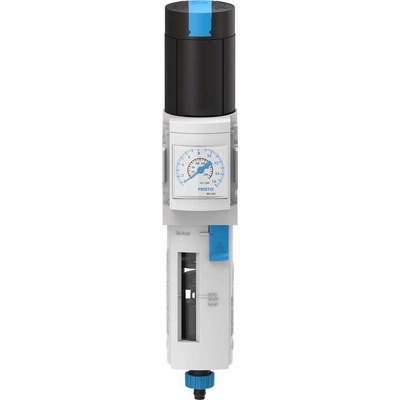

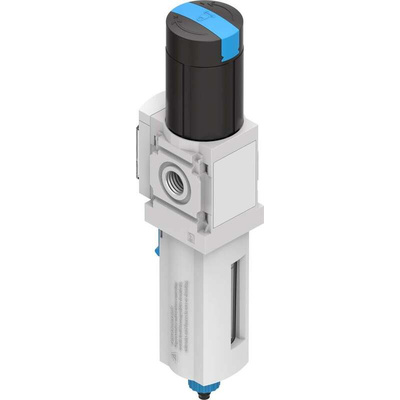

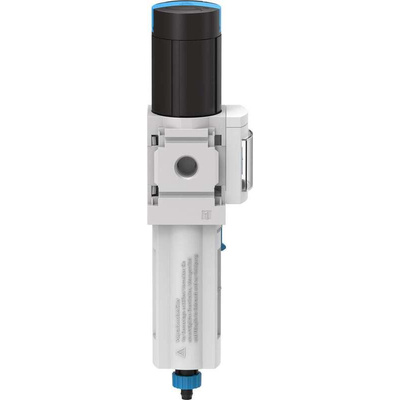

MS4-LFR-1/4-D7-CRV-AS, Festo MS4-LFR Filter Regulator, 5μm, G 1/4, Automatic, Фильтр-регулятор

Festo Filter Regulator, 19ml Maximum Condensate Volume, Vertical Assembly - MS4-LFR-1/4-D7-CRV-AS

Looking for a device to breathe new life into your compressed air system? Choose this filter regulator from Festo to clean up and manage air quality. Its operating pressure range between 2 and 12 bar is ideal for low-pressure jobs. Thanks to its 5μm filtration size, this handy piece of kit prevents even the smallest particles from getting in, meaning uninvited guests won't clog up your setup. An automatic drain removes accumulated liquid to stop your system being swamped by condensation, so there's little maintenance to do.

• High flow rate of 1,200L/min suits demanding applications
• Standard G1/4 port for wide compatibility with existing equipment
• Suits front panel or line installation methods, so it's a versatile option

Applications

• Pharmaceutical production
• Aerospace engineering
• Medical equipment
• Automotive manufacture

Can I use this filter regulator in warm conditions?

Yes. It operates in a temperature range between +5°C and +60°C, so it's ideal for use in settings where things might get heated.

What's this unit's bowl made from?

The bowl in this filter is made from polycarbonate, which is resistant to mechanical stress, corrosion and abrasion, so delivers a long service life.
