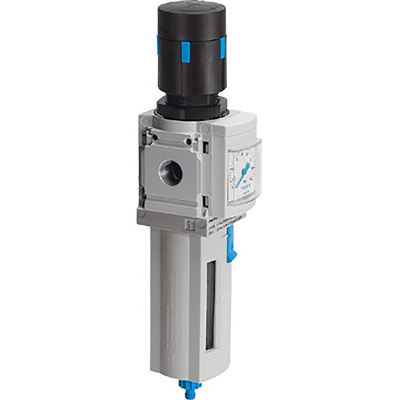

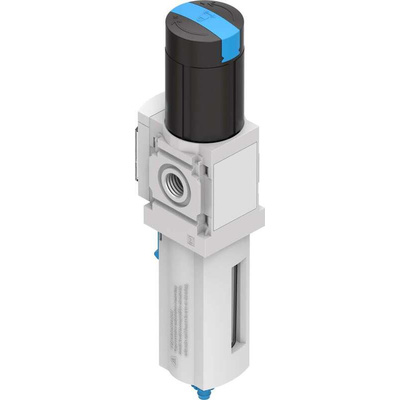

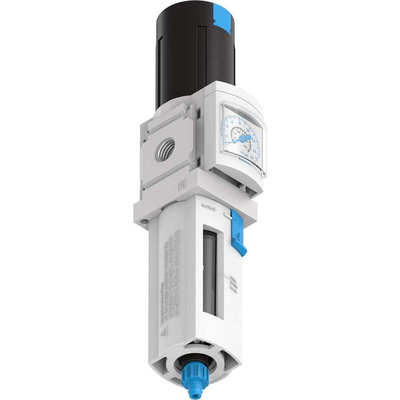

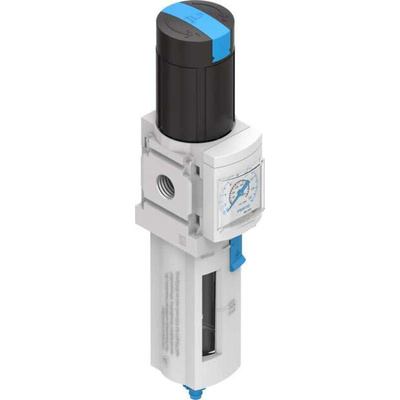

MS4-LFR-1/4-D7-ERM-AS, Festo MS4-LFR Filter Regulator, 40μm, G 1/4, Manual, Фильтр-регулятор

Festo Filter Regulator, Polycarbonate Bowl, 14 Bar Maximum Operating Pressure - MS4-LFR-1/4-D7-ERM-AS

Be sure your air prep makes the grade with this filter regulator from Festo. A 40μm filter separates out particles and condensate to keep your air clean and machines working efficiently. The unit's lockable rotary knob and integrated gauge mean you'll have no trouble setting the pressure. As it uses a directly actuated diaphragm valve, pressure hysteresis is no more than 0.25 bar. Primary pressure compensation keeps your output constant. This ensures you have precise control over air flows up to a rate of 1500L/min.

Features & Benefits

• Choice of front panel or line mounting makes this unit versatile
• Secondary exhaust and return flow are built in to save installation time
• Wide operating temperature range of -10°C to +60°C, so it can handle harsh conditions

Applications

• Food and beverage industry
• Packaging facilities
• Process automation

How rugged is this filter regulator?

This filter regulator is made with corrosion-resistant aluminium housing, a polycarbonate bowl guard and nitrile rubber seals to ensure it's rugged enough for industrial applications.

What's the operating pressure of this filter regulator?

The unit has a wide operating range of 0.8 to 14 bar, so you can trust it to work with high-pressure and low-pressure systems.

Regulators and Filter Regulators

Festo Filter regulators, MS series
