MS4-LFR-1/4-D7-EUV-AS, Festo MS4-LFR Filter Regulator, 40μm, G 1/4, Automatic, Фильтр-регулятор

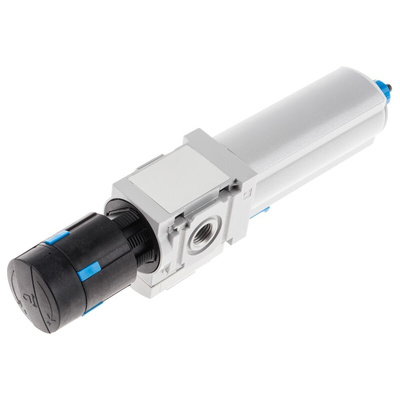

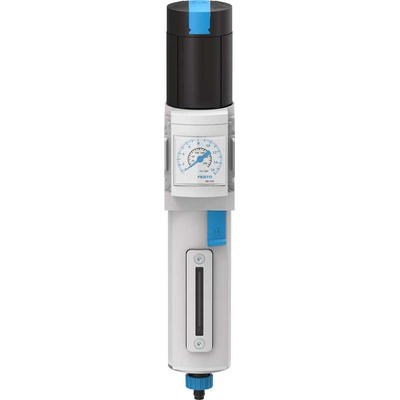

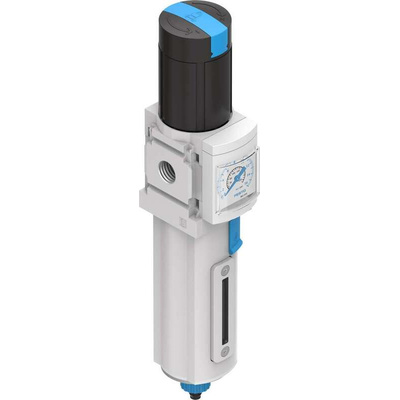

Festo Filter Regulator, Die Cast Aluminium Housing, 475g Weight - MS4-LFR-1/4-D7-EUV-AS

For a clean and consistent flow of compressed air through your pneumatic system, go for this Festo filter regulator. It performs double duty, thanks to a 40μm filter that removes tiny particles to prevent blockages and a regulator that gives you control over the input pressure. Filtered contaminants are held in a 25ml metal bowl with an automatic drain mechanism that takes waste disposal off your hands. This unit works in a pressure range between 2 and 12 bar, making it a versatile option for light-duty and heavy-duty applications.

Features & Benefits

• Die cast aluminium housing resists impact and corrosion for use in harsh environments
• G1/4 threaded port eliminates the need for complex installation tools
• NBR seals block out contaminants and prevent leakages to ensure optimal performance
• Integrated pressure gauge for easy monitoring

Applications

• Water treatment plants
• Agricultural equipment
• Robotics and automation systems

In what position should I mount this filter regulator?

To ensure optimal performance, you must assemble this unit in a vertical position, with a tolerance of +/- 5°.

How do I regulate pressure with this filter regulator?

You can control the input pressure with a quick turn of this unit's rotary knob. A locking feature prevents accidental pressure changes.
