MS4-LR-1/4-D5-AS, Festo G 1/4 Pneumatic Regulator - 0.3bar to 4bar, 1/4in, 14bar max. input, 529415, Регулятор

MS-LR Series Pressure Regulator

Festo MS-LR series pressure regulators maintain a constant working pressure, regardless of the pressure variations in the system and air consumption. The MS-LR series features excellent regulation characteristics with low hysteresis and primary pressure compensation.

Features and Benefits

• The MS-LR series feature regulators which are available with and without secondary venting


• They benefit from a high flow rate with minimal pressure drop


• Two pressure gauge connections allow for different fitting options, with a return flow option already integrated within the pressure regulator


• The pressure regulator has a compressed air and inert gases operating medium, with a directly controlled diaphragm regulator design structure


• Optional pressure sensor and rotary knob pressure gauge


• For installation into a control panel

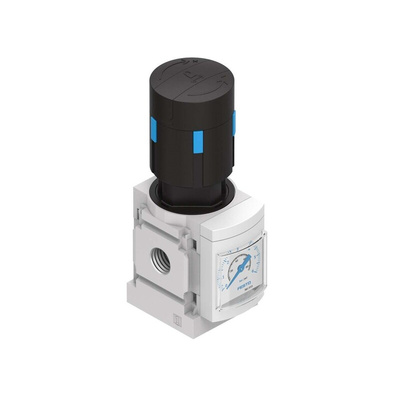

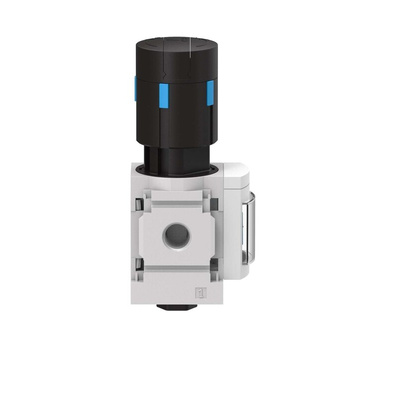

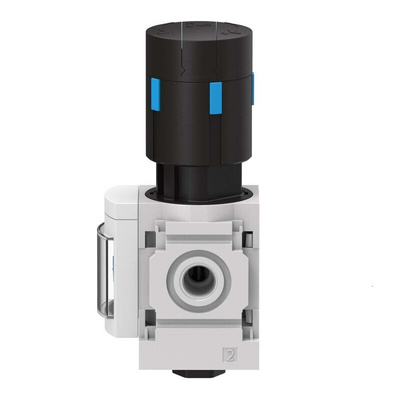

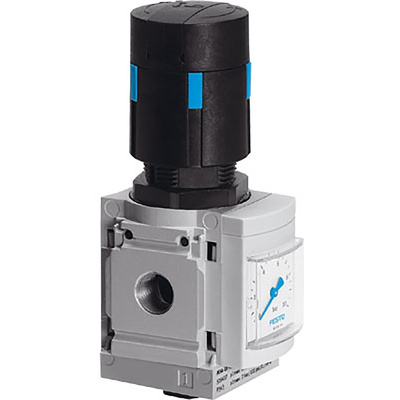

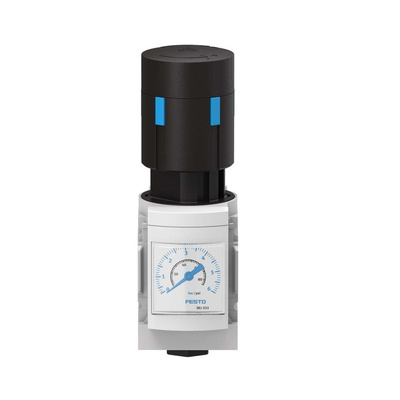

Festo Pneumatic Regulator, With Secondary Exhaust, Lockable Rotary Knob - MS4-LR-1/4-D5-AS

Managing pressure is no problem with this pneumatic regulator from Festo. It has a directly actuated diaphragm regulator that controls conditions in your pneumatic network so you get constant output pressure. As the product also offers input pressure compensation, you can trust your system won't be overloaded by your supply medium. This unit works with compressed air or inert gases and is also safe for use with lubricated media, making it a versatile choice. You'll find it adaptable when it comes to setup too, as it supports different mounting styles including in-line and front-panel options or installation via accessories.

Features & Benefits

• Integrated secondary exhaust helps safely relieve any pressure build-ups
• Rotary knob is lockable, which makes the unit tamperproof if needed
• Supports demanding applications, thanks to ambient and media temperatures between -10°C and +60°C

Applications

• Drinks manufacturing
• Aerospace engineering
• Pharmaceutical industry

Can I use this component in harsh settings?

Yes. This regulator's made of tough die-cast aluminium as well as robust PA and POM. Along with the unit's shock and vibration resistance, this assures you reliable performance in most harsh industrial settings, including locations near moving machinery.
