Festo G 1/4 Pneumatic Regulator 0.3bar to 7bar, MS4-LR-1/4-D6-AS, Регулятор

MS-LR Series Pressure Regulator

Festo MS-LR series pressure regulators maintain a constant working pressure, regardless of the pressure variations in the system and air consumption. The MS-LR series features excellent regulation characteristics with low hysteresis and primary pressure compensation.

Features and Benefits

• The MS-LR series feature regulators which are available with and without secondary venting
• They benefit from a high flow rate with minimal pressure drop
• Two pressure gauge connections allow for different fitting options, with a return flow option already integrated within the pressure regulator
• The pressure regulator has a compressed air and inert gases operating medium, with a directly controlled diaphragm regulator design structure
• Optional pressure sensor and rotary knob pressure gauge
• For installation into a control panel

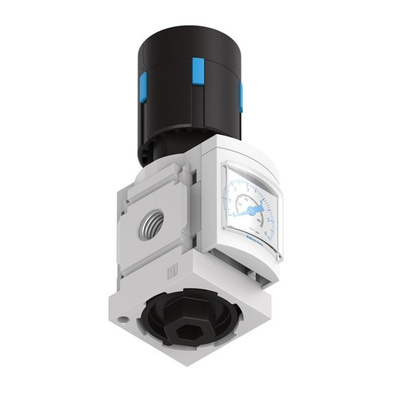

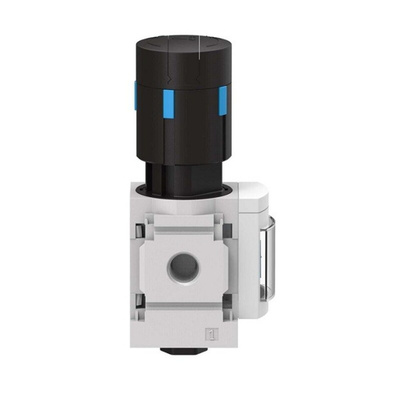

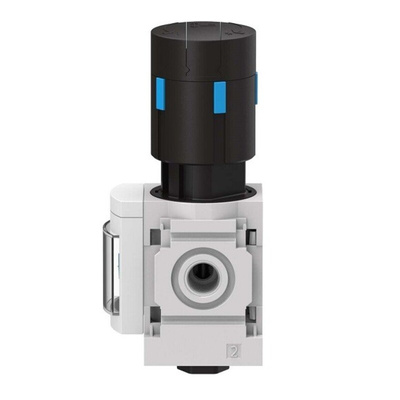

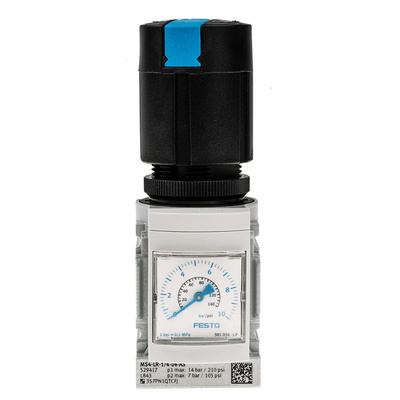

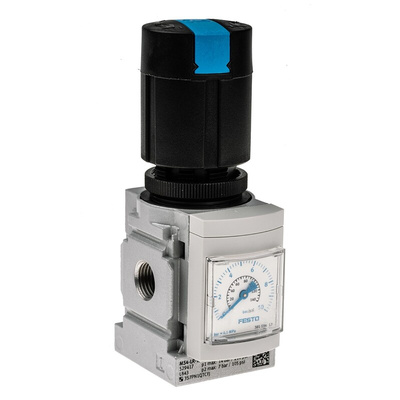

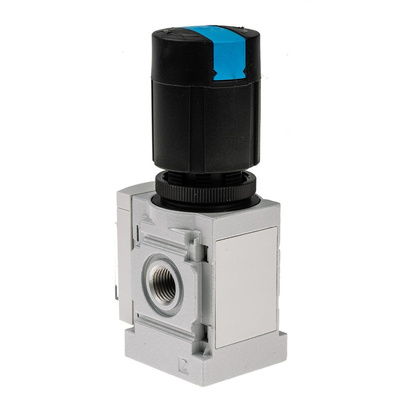

MS4-LR-1/4-D6-AS Pressure Regulator

• Rotary knob actuator lock


• Maximum pressure hysteresis of 0.25 bar


• Standard nominal flow rate of 1,800 I/min


• G1/4 pneumatic connection


• Aluminium die-cast housing material

Regulators and Filter Regulators

Festo Pressure regulators, MS series

MS4-LR-1/4-D6-AS Specification Sheet
