MS4-LR-1/4-D7-AS, Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 1/4in, 14bar max. input, 529419, Регулятор

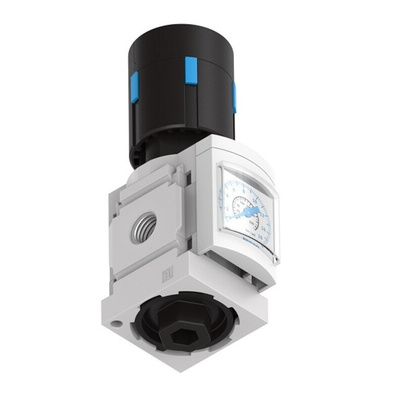

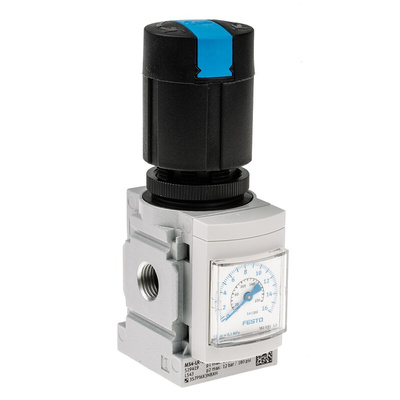

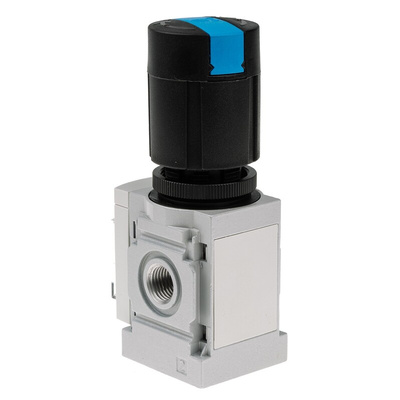

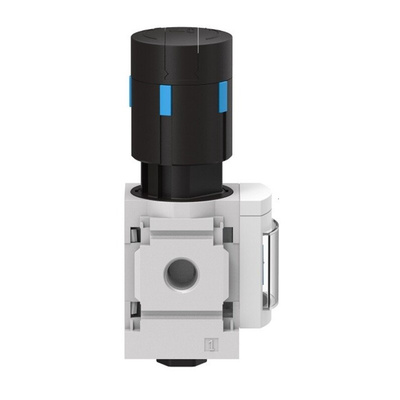

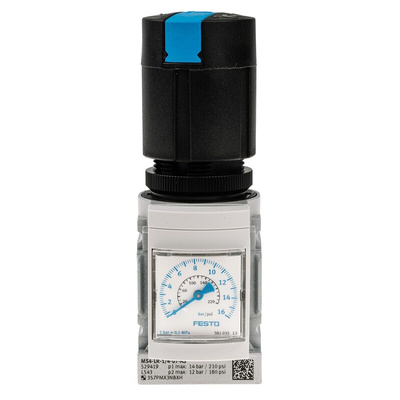

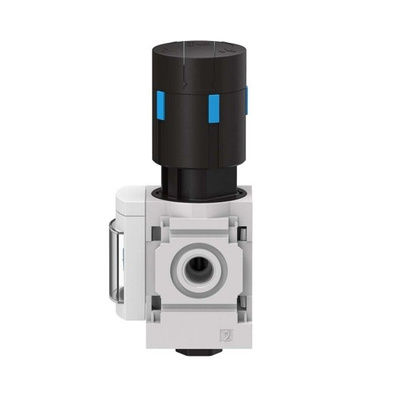

Festo Pneumatic Regulator, G1/4 Port Connection, 14 Bar Maximum Input Pressure - MS4-LR-1/4-D7-AS

Keep pressure levels consistent in your pneumatic system with this regulator from Festo. The device monitors the system for variations and shuts the airflow on and off as needed to keep the pressure at the preset level. It has a maximum input pressure level of 14 bar and a maximum outlet pressure of 12 bar, so it can be used for both taking in or expelling air. With a standard nominal flow rate of 1700L/min (litres per minute), the unit can withstand high-pressure use.

• G1/4 threaded connector for quick installation
• PA and POM (polyoxymethylene) control panel with high-tensile strength for use in heavy-duty conditions
• Die-cast aluminium housing material resists corrosion and withstands use in damp conditions
• NBR (nitrile rubber) insulates the regulator against leaks
• Operating temperature range between -10°C and +60°C for use in challenging industrial environments

Applications

• Automotive industry
• Manufacturing lines
• Articulated robotics
• Agricultural machinery

Can this pneumatic regulator be locked in place?

Yes, this pressure regulator has a rotary knob with a lock to keep it fixed in place, so you can be sure it's secure, even with vibration.

Regulators and Filter Regulators

Festo Pressure regulators, MS series

MS4-LR-1/4-D7-AS Specification Sheet
