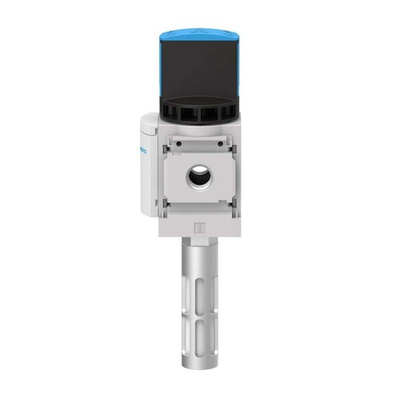

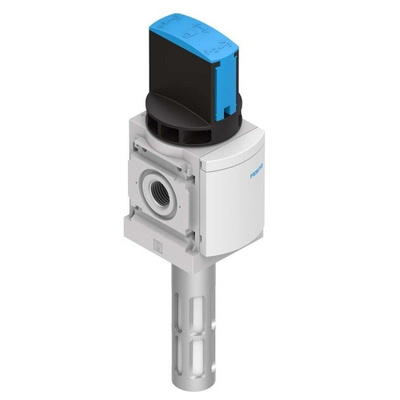

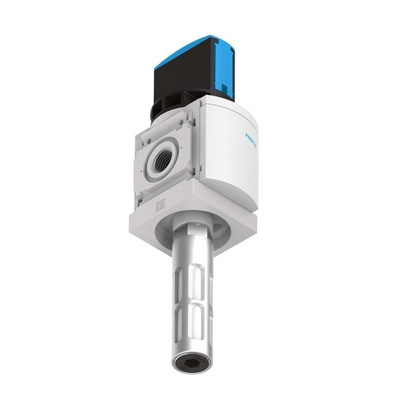

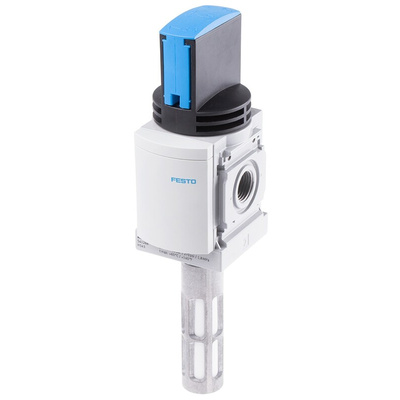

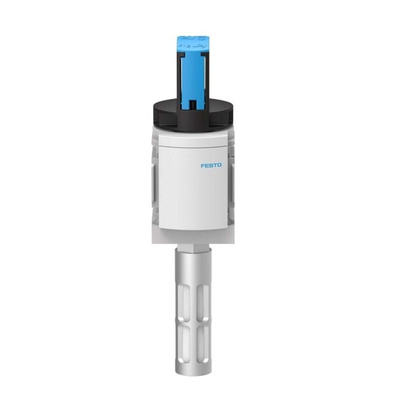

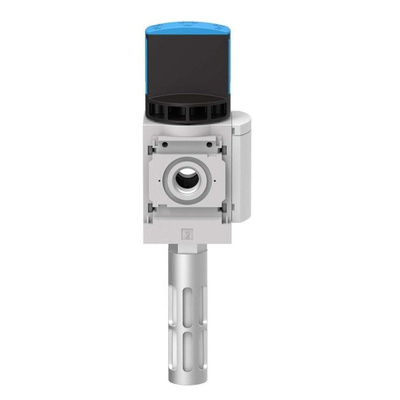

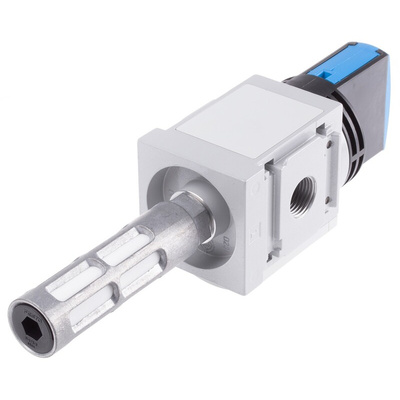

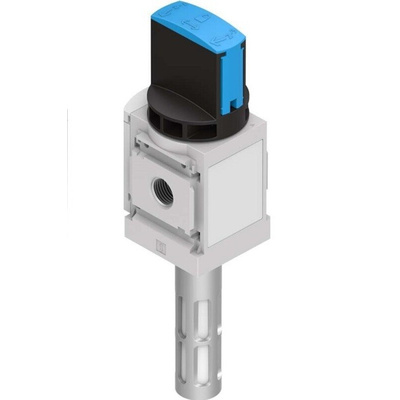

MS6-EM1-1/2-S, Festo Pneumatic Manual Control Valve MS Series, G 1/2, 1/2in, 541268, Клапан

Festo Pneumatic Manual Control Valve, G1/4 Port Connection, 8,700L/min Standard Nominal Flow Rate - MS6-EM1-1/2-S

Direct the flow of air in your pneumatic system with this manual control valve from Festo. As a direct-piloted valve, it opens to expel a regulated amount of air into another valve in your system. The flow direction is non-reversible, so it can only expel air and not receive it. As the valve has an operating temperature range between -10°C and +60°C, you can use it safely in demanding conditions. Its G1/2 threaded connection tightens securely to keep the valve fixed in place and ensure it can withstand vibration.

• Die-cast aluminium housing material protects the control valve from impact damage
• Resistant to moderate corrosion stress to help the unit maintain its position once installed
• TPU (thermoplastic polyurethane) seals prevent external contaminants from entering the valve
• Integrated pneumatic muffler lowers the volume of the pneumatic system, enhancing your working environment

Applications

• Manufacturing lines
• Industrial automation
• Crane hydraulics
• Mechanised agricultural equipment
• Pharmaceutical industry

What pressure range can this pneumatic manual control valve handle?

This valve has a pressure range of 0 to 18 bar, so you can install it in both low-pressure and high-pressure systems.

Soft Start and Quick Exhaust Valves

Festo On-off/soft-start valves, MS series

MS6-EM1-1/2-S Specification Sheet
