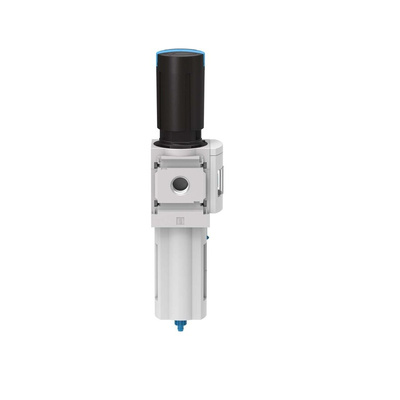

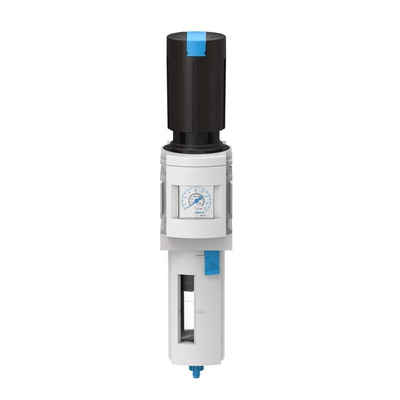

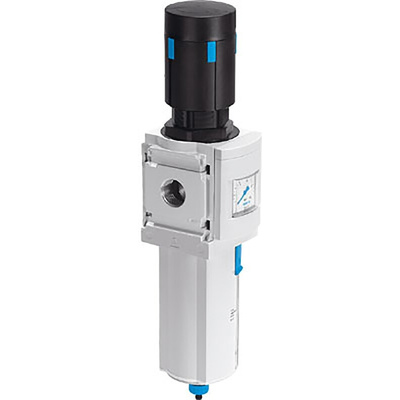

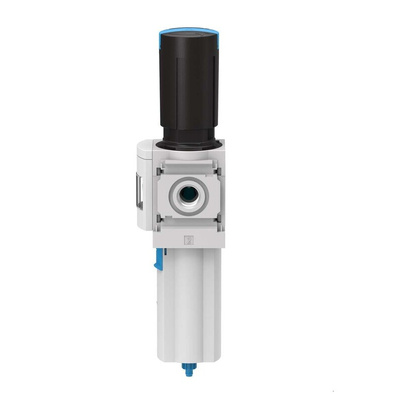

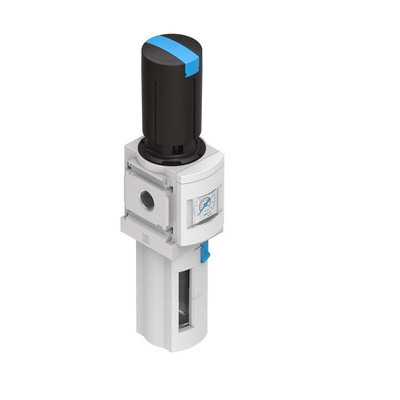

MS6-LFR-1/2-D6-CRM-AS, Festo MS6-LFR Filter Regulator, 5μm, G 1/2, Manual, Фильтр-регулятор

FESTO MS-LFR Series Filter Regulators

The FESTO MS-LFR series offers a combined pressure regulator and filter. The MS4 and MS6 pneumatic filter regulators remove contaminants from compressed air down to a particle size of 5 μm or 40 μm (dependent on filter cartridge). The MS series regulators have a high flow rate and integrated return flow for exhausting air from port 2 to port 1.

Features and Benefits

• Constant output pressure with return flow


• Choice of fully automatic or manual drain


• Plastic or fully integrated metal bowel guard


• Can be fitted with analogue pressure gauge or sensor with LCD display


• Rotary knob with a detent can be locked to prevent setting changes


• Available in pressure ranges 0.3 bar to 7 bar and 0.5 bar to 12 bar


• Available with G1/8 or G1/4 ports

Festo Filter Regulator, 0.3 to 7 Bar Pressure Regulation, Shock and Vibration Resistant - MS6-LFR-1/2-D6-CRM-AS

When the job calls for a combination of filtration and pressure regulation, you can't go wrong with this Festo filter regulator. It combines these two functions into a single device to optimise performance in your pneumatic network. This makes it a handy component when you want to save space and simplify your setup. The unit's filter combs your supply of compressed air for contaminants, weeding out corrosion-causing moisture and pesky particulates as small as 5μm. A built-in regulator ensures you get consistent system pressure between 0.3 and 7 bar, making this a safe bet for many pneumatic applications. It also helps conserve your medium to minimise wastage.

Features & Benefits

• Female G1/2 port connection meets industry standards, so it's easy to create secure pneumatic lines
• Adaptable to suit mounting in-line, on a panel or via accessories
• Condensate bowl helps store captured moisture and contaminants away from your network
• Robust materials including die-cast aluminium, PA and POM stand up to harsh conditions

Applications

• Chemical processing
• Oil and gas industry
• Food production

Is this product lockable?

Yes. You can lock the rotary knob on this filter regulator using a simple padlock. This prevents anyone tampering with its parameters once they've been set.
