MS6-LFR-1/2-D6-CRV-AS, Festo MS6-LFR Filter Regulator, 5μm, G 1/2, Automatic, Фильтр-регулятор

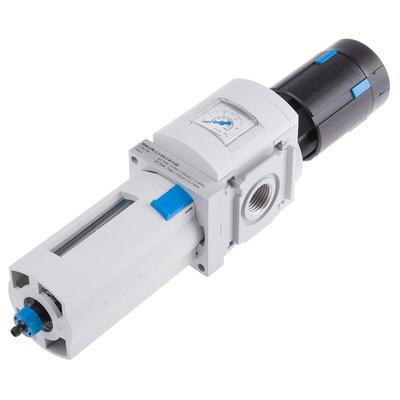

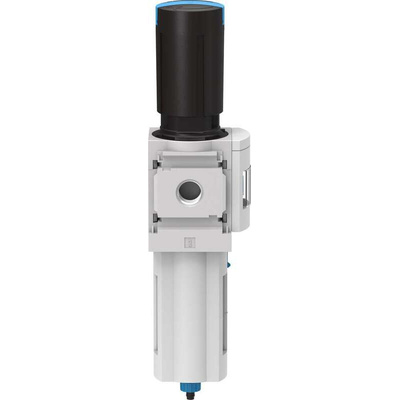

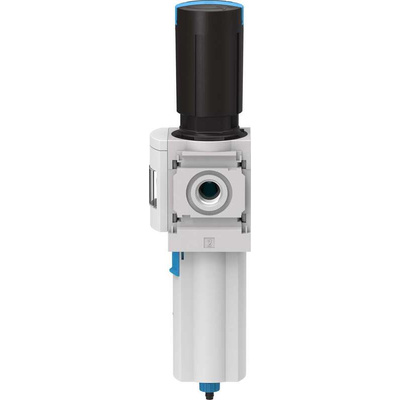

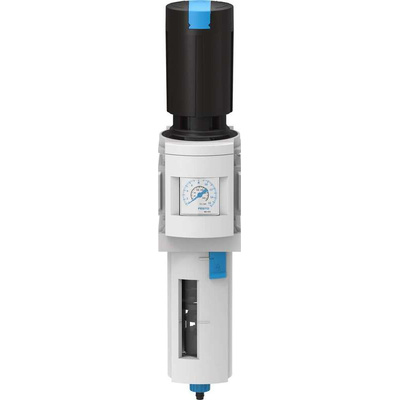

Festo Filter Regulator, Lockable Rotary Knob, 5600L/Min Standard Nominal Flow Rate - MS6-LFR-1/2-D6-CRV-AS

Keep your pneumatic system clean and running like clockwork with this filter regulator from Festo. It simplifies your setup by combining the functions of a filter and a regulator in one unit. You can trust it to remove water, dust and dirt particles down to 5μm from your airflow. Not only that, but it controls the output pressure to give you consistent performance and minimise air wastage. A fully automatic condensate drain means there's no need to keep checking and manually releasing the extracted impurities. A locking rotary knob means unwanted changes to system pressure are history.

Features & Benefits

• High flow rate of 5600l/min makes it suitable for high-pressure systems
• Die-cast aluminium housing combines strength with low weight
• Secondary exhaust helps keep output pressure constant
• Nitrile rubber seals guard against leakage
• Polycarbonate bowl allows easy visual monitoring of condensate

Applications

• Chemical processing
• Aerospace industry
• Pharmaceutical production

How do I connect this filter regulator?

This filter regulator has a G1/2 thread port for easy connection to your system.

In what position do I install this filter regulator?

This filter regulator is suitable for front panel installation or line installation with accessories.
