MS6-LFR-1/2-D7-CRM-AS, Festo MS6-LFR Filter Regulator, 5μm, G 1/2, Manual, Фильтр-регулятор

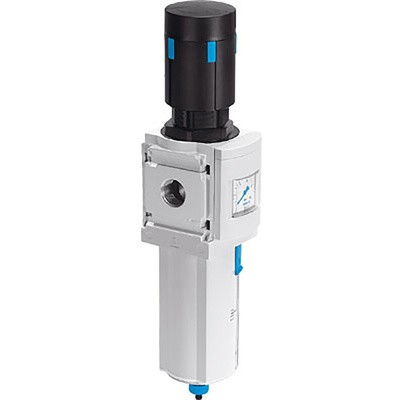

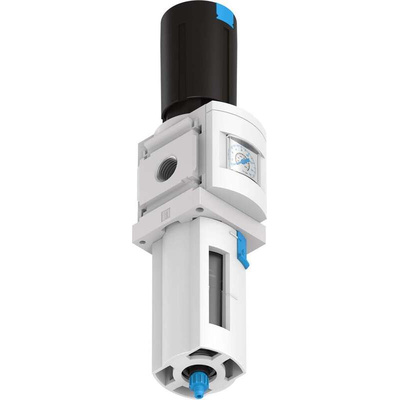

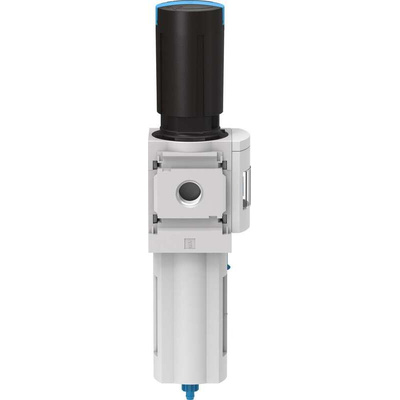

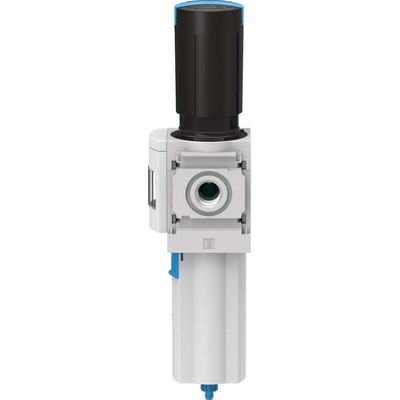

Festo Filter Regulator, 0.8 to 20 Bar Operating Pressure, 4000L/Min Standard Nominal Flow Rate - MS6-LFR-1/2-D7-CRM-AS

Streamline a demanding pneumatic network with this combined filter regulator from Festo. With a filtration size of 5μm, the filter extracts impurities from compressed media to keep your setup in tip-top shape for longer. The regulator controls system pressure, providing the steady outputs needed to keep work ticking over smoothly. Integrated return flow means the unit automatically exhausts excess pressure to protect equipment and keep a lid on downtimes. You can install it in any position, giving you the flexibility to customise your build.

Features & Benefits

• Wide operating pressure range between 0.8 and 20 bar for use with heavy-duty systems
• Die-cast aluminium housing withstands corrosive and abrasive damage
• G1/2 port connections for easy compatibility with standard components

Applications

• Automotive industry
• Automated factory processes
• Medical equipment
• Aerospace applications
• Laboratory operations

At what temperatures can I use this filter regulator?

As you can safely use it at temperatures between -10°C and +60°C, it's suitable for harsh conditions.

Why is clean air important in pneumatic systems?

The small particles in contaminated air cause friction that hampers performance and causes premature wear on components. By fitting a filter regulator like this one, you can cut contamination out of the equation.
