MS6-LFR-1/2-D7-ERM-AS, Festo MS6-LFR Filter Regulator, 40μm, G 1/2, Manual, Фильтр-регулятор

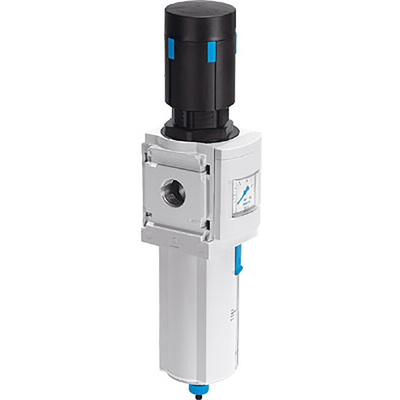

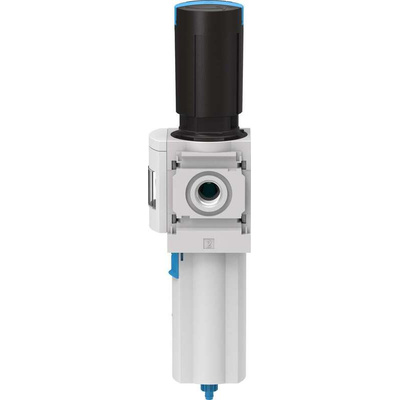

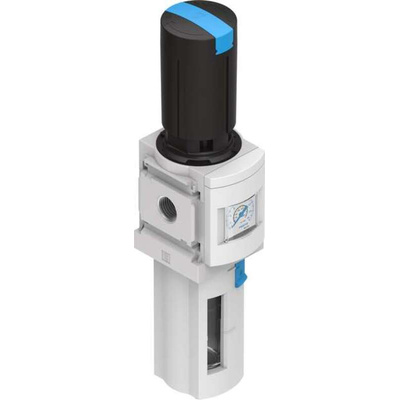

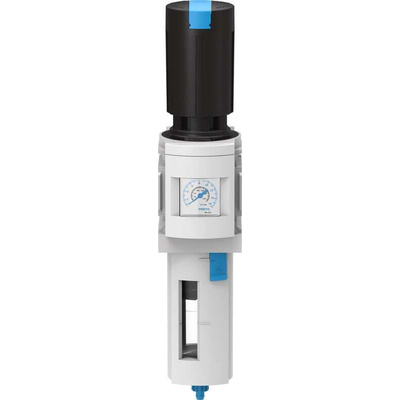

Festo Filter Regulator, Adjustable, G1/2 Port Connection - MS6-LFR-1/2-D7-ERM-AS

For processes that go off without a hitch, add this filter regulator from Festo to your pneumatic setup. It combines the power of a filter to trap contaminants in the airflow and a regulator to balance the pressure rating. A PC bowl is on guard to capture any condensate formed during the filtration process. To get the upper hand in maintaining the pressure level, you can use the rotary knob to adjust the unit's output pressure. Robust NBR rings help seal the deal by keeping air from leaking out.

Features & Benefits

• Filtration grade of 40μm traps tiny particles, ensuring smooth flow
• Vertical assembly position can be adjusted +/-5° for flexible mounting
• Integrated pressure gauge for easy monitoring of air pressure level

Applications

• Chemical plants
• Water treatment facilities
• Aerospace engineering
• Agricultural equipment

What's the operating pressure of this filter regulator?

This device has a broad operating pressure range between 0.8 and 20 bar, so it'll come in handy with both low-pressure and high-pressure equipment.

How much condensate can the bowl in this device hold?

The filter regulator's bowl holds a maximum condensate volume of 38ml, so you won't have to interrupt operations to empty it at inconvenient times.
