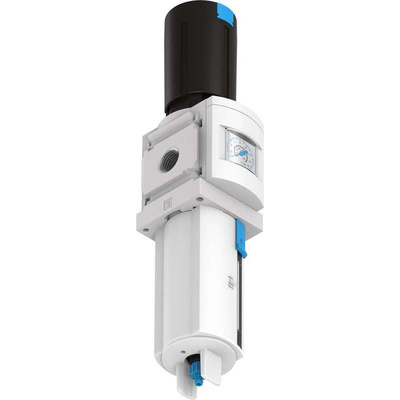

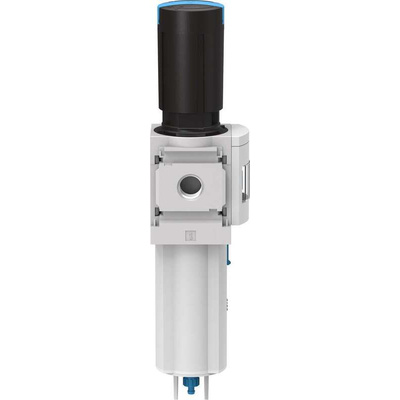

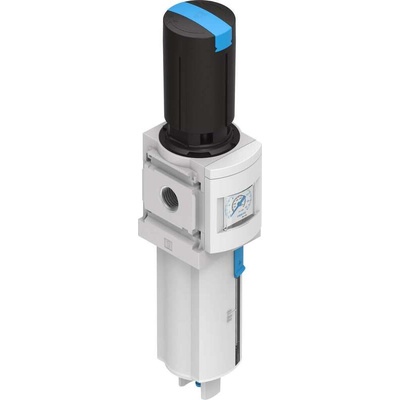

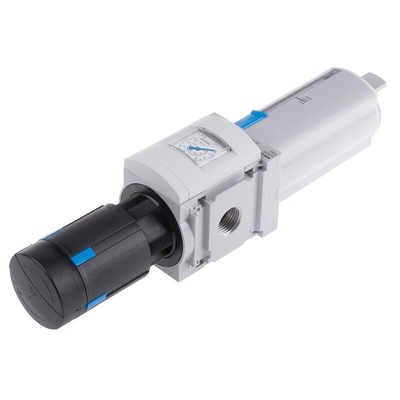

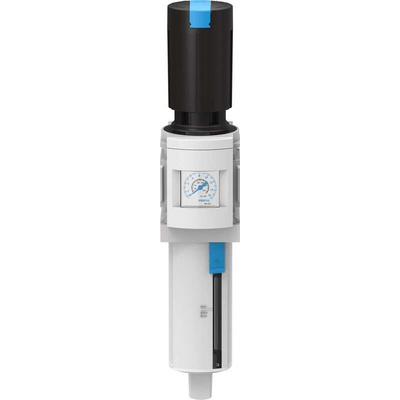

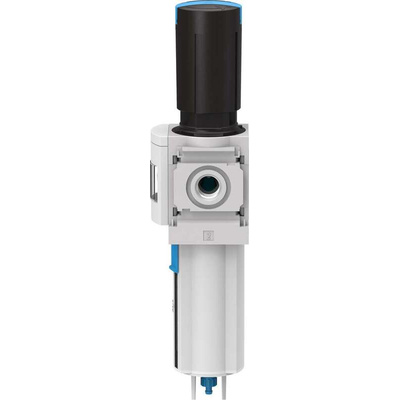

MS6-LFR-1/2-D7-EUM-AS, Festo MS6-LFR Filter Regulator, 40μm, G 1/2, Manual, Фильтр-регулятор

Festo Filter Regulator, 0.5 to 12 Bar Pressure Regulation Range, Size 6 - MS6-LFR-1/2-D7-EUM-AS

Give your pneumatic equipment a performance boost with this filter regulator from Festo. It does a thorough job, with a filter to remove contaminants, along with a regulator to keep air going with the flow of the system. Thanks to a filtration grade of 40μm, you can rest assured that it won't let tiny particles through. To keep things locked down, there's an integrated rotary knob to control the unit. A built-in gauge shows the pressure level, so you can easily track changes.

Features & Benefits

• Standard nominal flow rate of 4,500L/min to withstand high-flow environments
• NBR seals and membranes resist chemicals
• Pressure regulation range between 0.5 and 12 bar for versatility
• Wrought aluminium alloy bowl stands up to impacts

Applications

• Hydraulic machines
• Water treatment plants
• Aerospace engineering

How do I remove condensate from this filter regulator?

This filter regulator comes with a metal bowl guard that catches any condensate from the filtration process, so you can empty it easily.

What's the operating pressure range of this filter regulator?

Thanks to its broad operating pressure range between 0.8 and 20 bar, you can use this filter regulator in both low-pressure and high-pressure settings.
