MS6-LR-1/2-D7-AS, Festo G 1/2 Pneumatic Regulator - 0.5bar to 12bar, 1/2in, 14bar max. input, 529993, Регулятор

MS-LR Series Pressure Regulator

Festo MS-LR series pressure regulators maintain a constant working pressure, regardless of the pressure variations in the system and air consumption. The MS-LR series features excellent regulation characteristics with low hysteresis and primary pressure compensation.

Features and Benefits

• The MS-LR series feature regulators which are available with and without secondary venting


• They benefit from a high flow rate with minimal pressure drop


• Two pressure gauge connections allow for different fitting options, with a return flow option already integrated within the pressure regulator


• The pressure regulator has a compressed air and inert gases operating medium, with a directly controlled diaphragm regulator design structure


• Optional pressure sensor and rotary knob pressure gauge


• For installation into a control panel

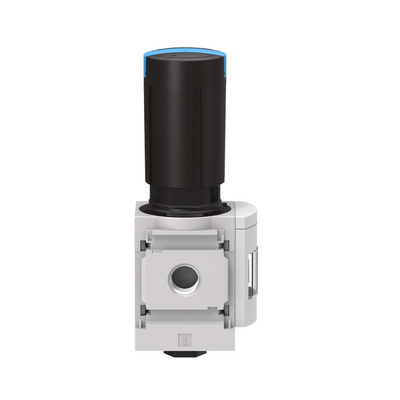

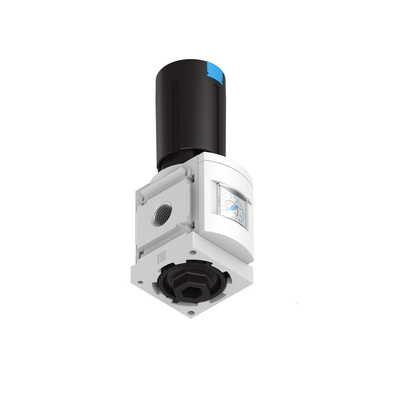

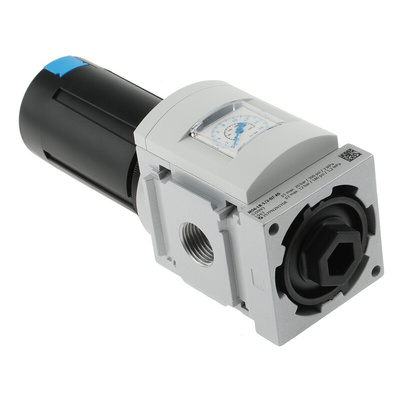

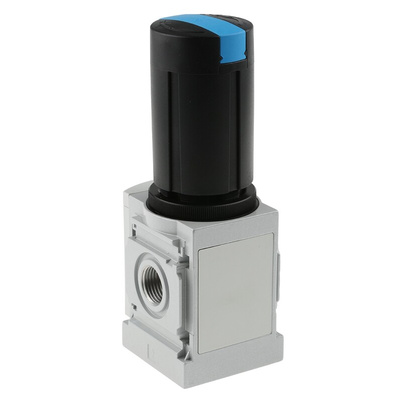

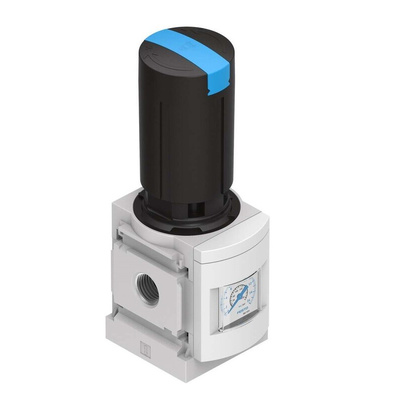

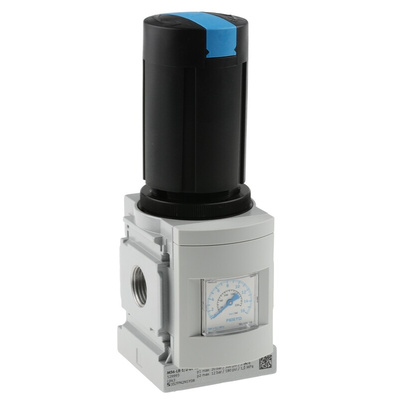

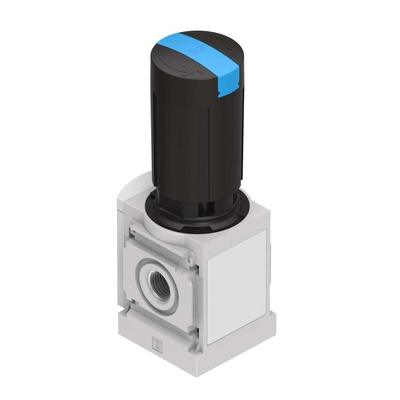

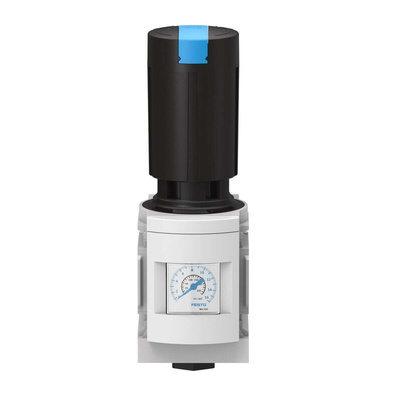

Festo Pneumatic Regulator, 5500L/min Standard Nominal Flow Rate,G1/2 Port Connections - MS6-LR-1/2-D7-AS

When tension builds, this pneumatic regulator from Festo gives you direct control over airflow. Its diaphragm regulator maintains constant working pressure throughout system variations. The result? A high standard nominal flow rate of 5,500L/min and minimal pressure drop. Demanding industrial applications call for robust regulation, and this unit fits the bill by taking on inputs up to 14 bar. Two straight-line G-port connections make it easy to fit your pressure gauge, with 12.7mm parallel threads ensuring stability.

Features & Benefits

• Aluminium die-cast housing ensures a long performance life with high corrosion resistance
• Lockable rotary knob keeps settings secure
• Low hysteresis reduces lag time between input and output, for a quick response when you need it
• Compatible with media operating in tough conditions between -10°C and +60°C
• Mounts into your control panel in a snap, with all accessories included

Applications

• Textile industry
• Medical equipment
• Agricultural machinery

What size is this pneumatic regulator?

To maximise efficiency and fit neatly into your system, this regulator packs its functions into a compact unit size of 62 (L) x 77 (W) x 185mm (H).

How much does the unit weigh?

The regulator tips the scales at 730g, making it a lightweight choice that minimises strain on your pneumatic circuit.
